$673.41

Shipping calculated at checkout.

Size chart

Available
Available

Quantity

Carbon-Ti X-Hub SP Disc Rear Hub $673.41

Sold out

Backorder request

Fast US-based shipping, no tariffs

Secure checkout

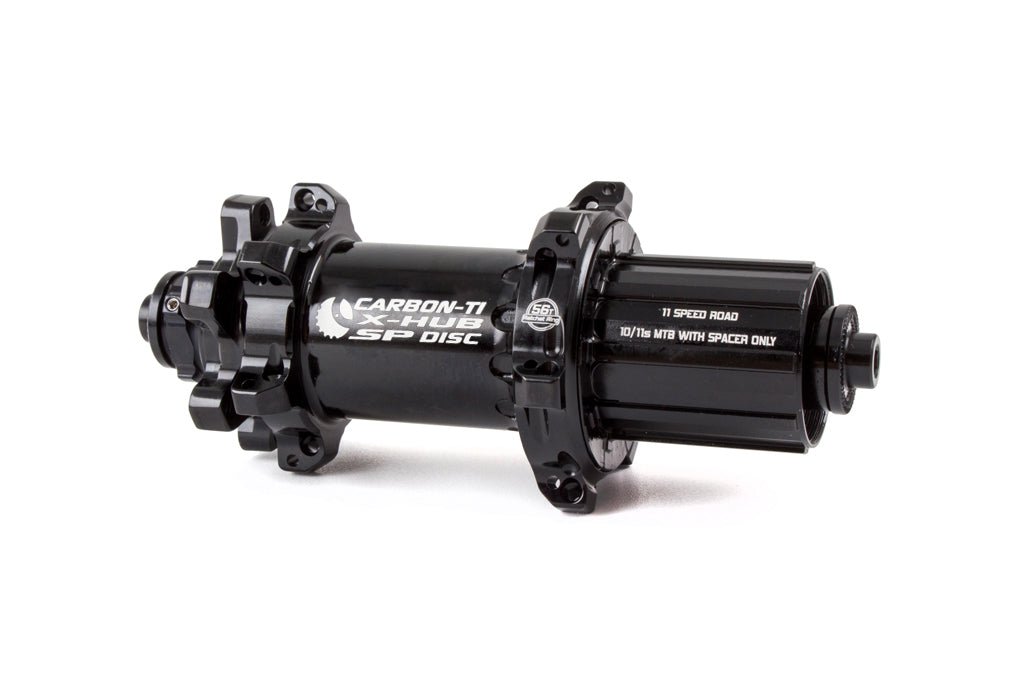

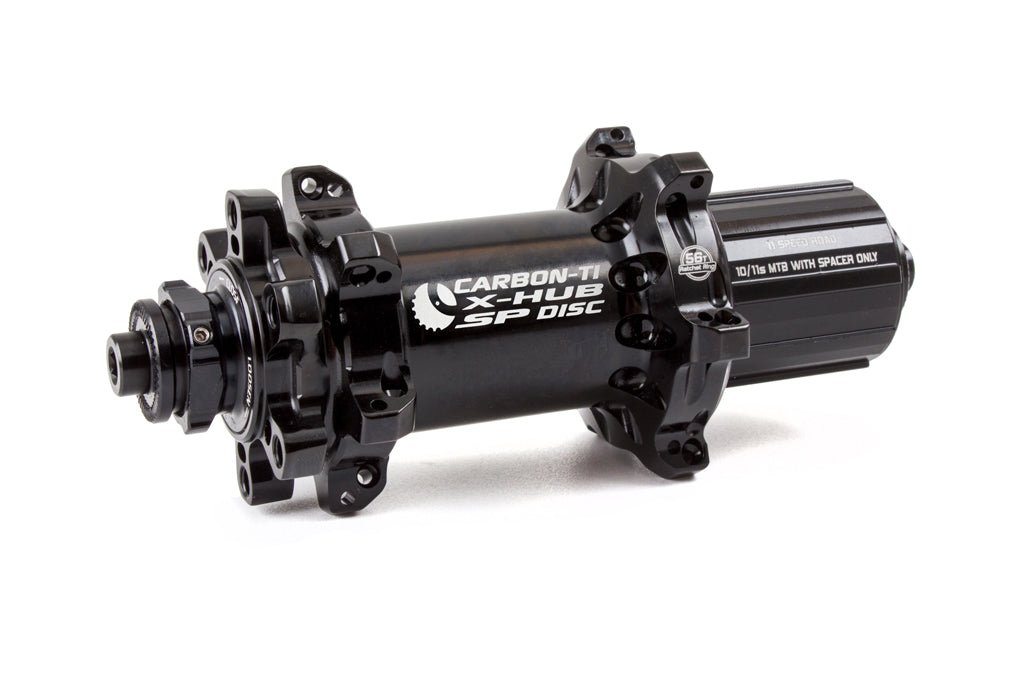

Carbon-Ti's straight-pull six-bolt disc rear hub for road, gravel and cross-country wheels, with a titanium toothed ring and four three-point pawls. Choose the axle, the freehub body and the spoke count.

Details

Oversized 7075-T6 aluminum body and axle, CNC machined
Straight-pull spoke flanges
High-performance sealed bearings with an external preload system
Made in Italy
Six-bolt (International Standard) rotor mount

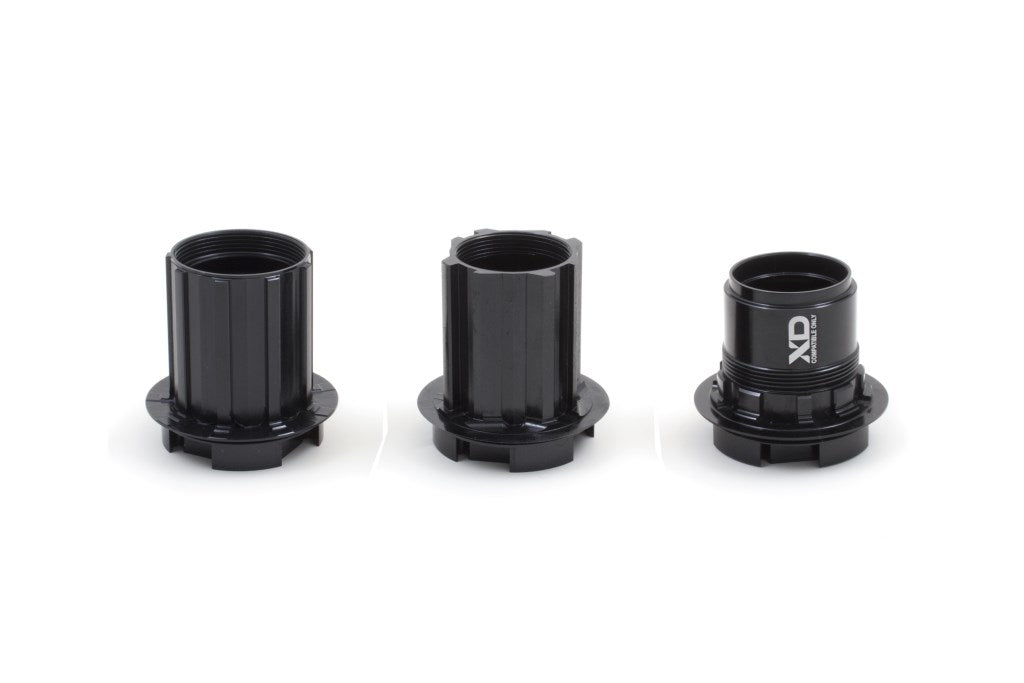

7075-T6 freehub body with a titanium toothed ring, 56 points of engagement

Compatibility

Quick release 135 mm, 12x142 mm thru axle or 12x148 mm Boost thru axle
Shimano HG: Shimano 9 to 12-speed HG cassettes
Shimano Micro Spline: Shimano 12-speed MTB cassettes
SRAM XD: SRAM 11 and 12-speed XD cassettes
SRAM XDR: SRAM AXS 12-speed road and XD cassettes
Campagnolo: Campagnolo 11 and 12-speed cassettes
Campagnolo N3W: Campagnolo Ekar 13-speed
Axle conversion kits and spare freehub bodies are sold separately

Colors

Anodized in Matte Black, Black, Red, Blue, Gold, Silver, Green or Acid Green. Name the color you want in the notes of your backorder request.

Compatibility questions: send the crank or hub model to support@dragonspinecycling.com and we will confirm the right part before the order ships.

Free Economy shipping on orders $75+ within the continental US.
Free pick up at Dragonspine Cycling, Chicago.

Standard items

Economy: $12.99, free on $75+ · 5–8 business days
Expedited: $15.14, $2.15 on $75+ · 2–5 business days
UPS 2nd Day Air: $34.99 · up to 3 lb
FedEx Standard Overnight: $64 · up to 3 lb

Oversized items
Wheels and wheelsets, forks, frames and framesets, racks, repair stands, trainers, trailers and bike travel cases.

Economy: $35, free on $750+ · 5–8 business days
Expedited: $45, $10 on $750+ · 2–5 business days

By quote
Standard items over 3 lb by 2nd Day or overnight, oversized items by 2nd Day or overnight, and international shipping. Contact us or call +1 (872) 946-7006.

When orders ship
Items in stock at our Chicago location ordered by 3 PM CT on a business day ship the same day. Items from our warehouse ship within 4–5 business days. Warehouse items are ready for pickup in 4–5 business days.

Free-shipping thresholds are based on the order total after discounts. Full details in our Shipping policy.

Have a question? Contact us now.
