Carbon-Ti X-Lock EVO 12x1.0 X-12 rear thru axle

Home /

Carbon-Ti X-Lock EVO 12x1.0 X-12 Rear Thru Axle

Regular price $110.08

Shipping calculated at checkout.

Length

159 mm

166 mm

Color — Black

Color

Black

Matte Black

Silver

Red

Blue

Gold

Green

Acid Green

Size chart

Available
Available

Quantity

Carbon-Ti X-Lock EVO 12x1.0 X-12 Rear Thru Axle $110.08

Sold out

Backorder request

Fast US-based shipping, no tariffs

Secure checkout

Carbon-Ti's X-Lock EVO rear thru axle for frames on the X-12 (Syntace) 12x142 standard with an M12x1.0 thread. CNC machined from AL7075 aluminum with a variable wall thickness and a conical head, it replaces the stock axle and saves weight without giving up stiffness. Pick the length that matches the original axle.

Details

AL7075 aluminum, CNC machined, variable wall thickness

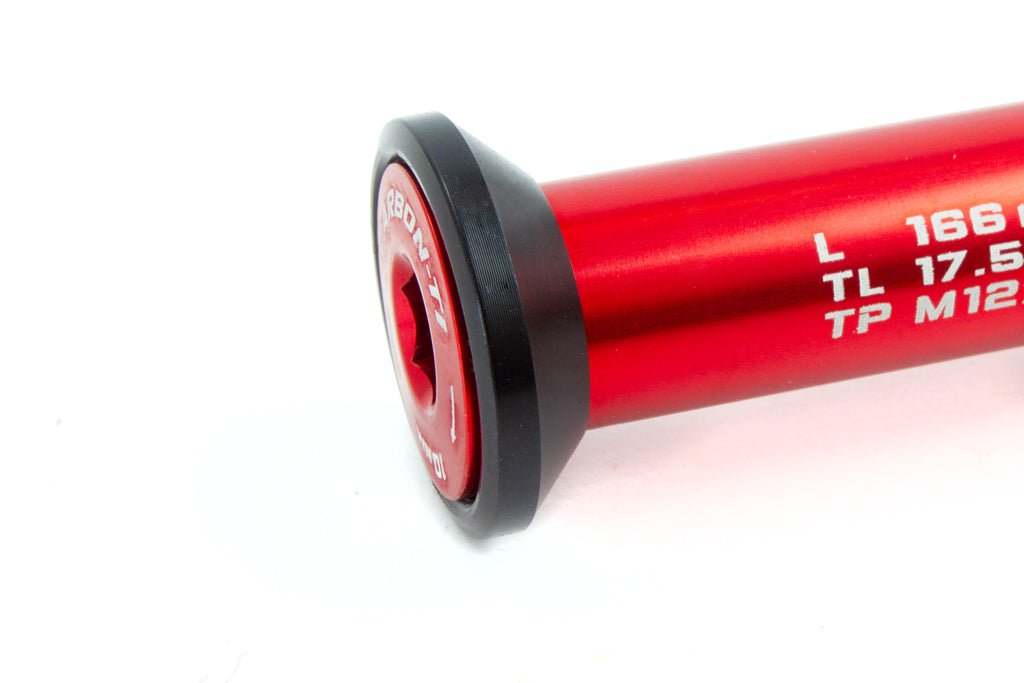

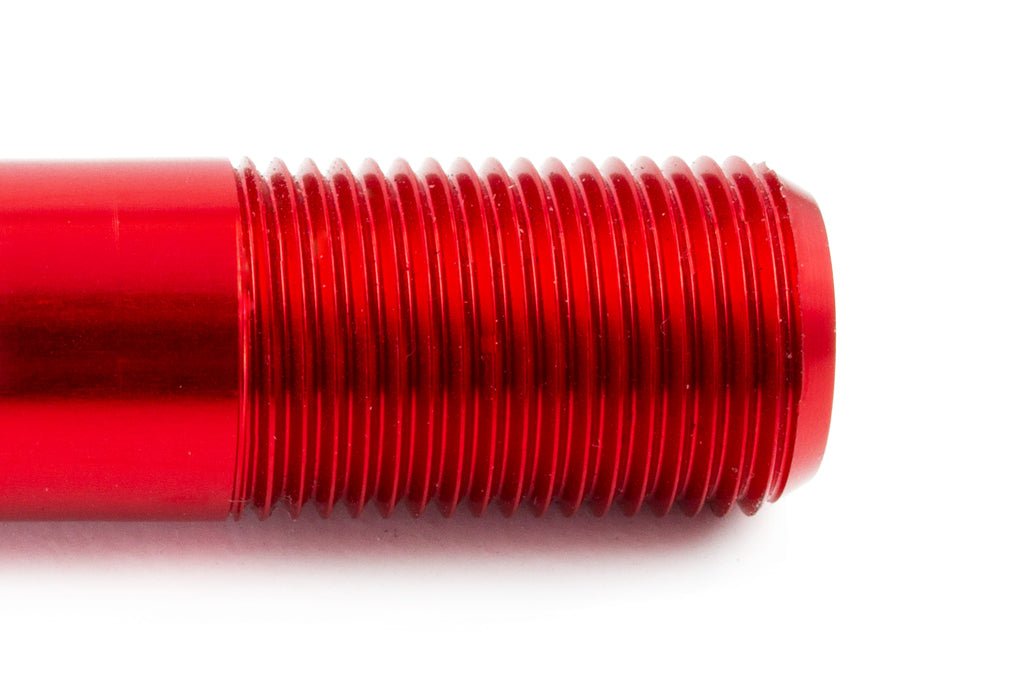

12 mm diameter, M12x1.0 thread, conical head

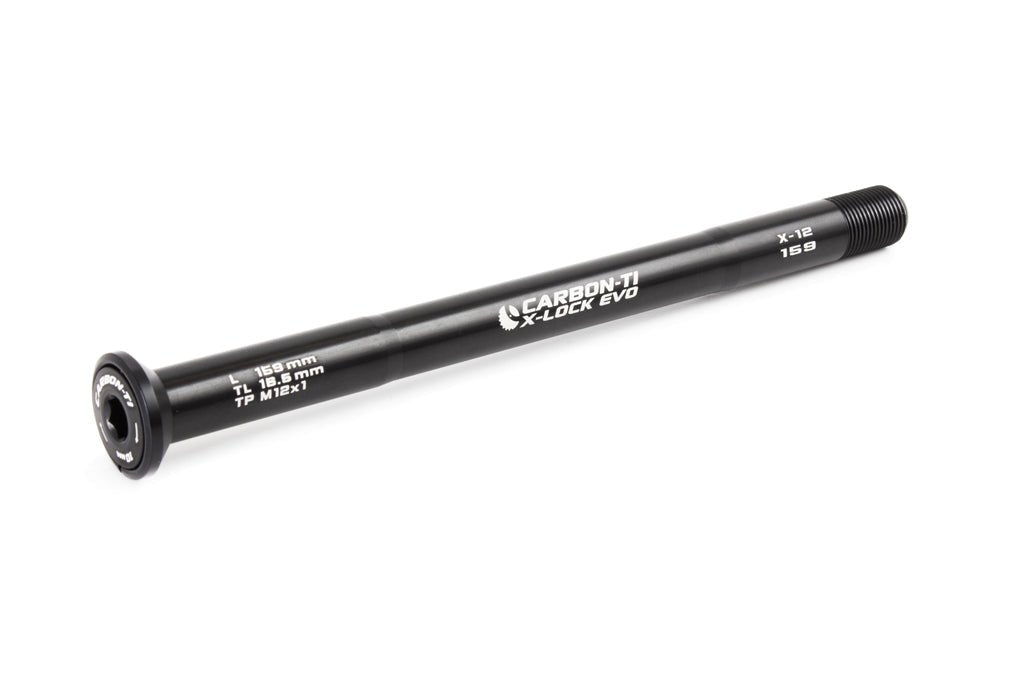

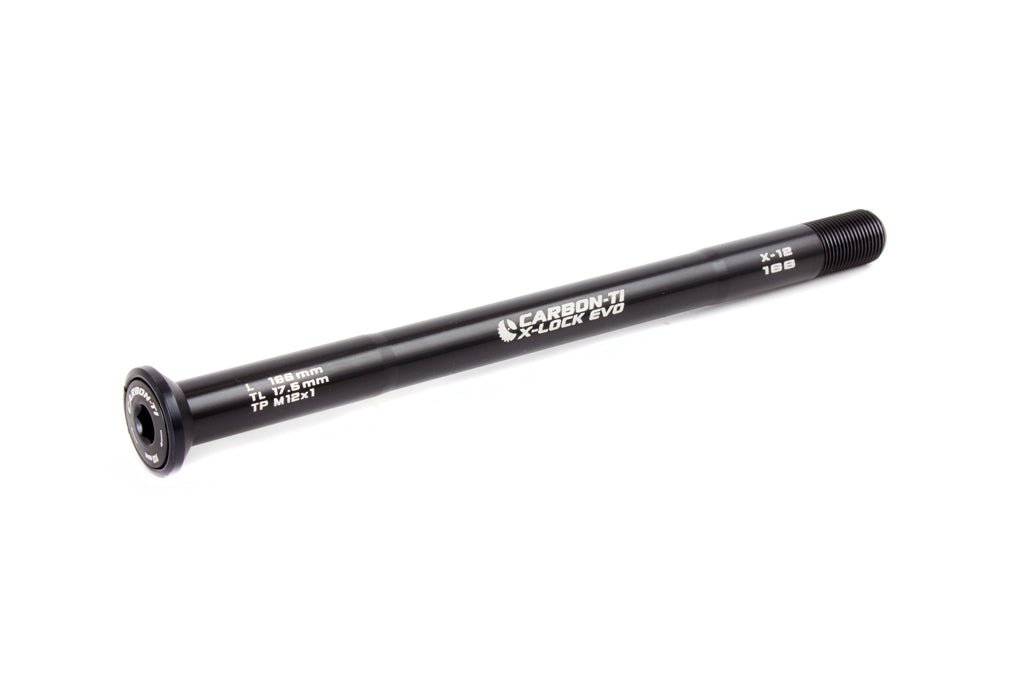

159 mm (30 g) or 166 mm (31.5 g)
Laser-etched graphics
Tightens with a 6 mm hex key (not included)
Anodized in Black, Matte Black, Silver, Red, Blue, Gold, Green or Acid Green
Made in Italy

Compatibility

159 mm: Specialized Tarmac SL8 Disc (2024-2025), Tarmac SL7 and SL6 Disc (2019-2023), S-Works Aethos (2021), Venge Disc (2019-2020), S-Works Crux (2019-2021), S-Works Epic (2011-2017), S-Works Stumpjumper HT (2015-2016); Cannondale Scalpel 29er (2013-2015); Canyon Lux CF and Grand Canyon CF (2014-2015)
166 mm: Colnago C72 (2026), V5RS, Y1RS and Steelnovo (2025), not with the Framesandgear UDH direct mount hanger P1.0; BMC Fourstroke 01 (2019-2021) and Twostroke 01 (2021); Specialized Epic and S-Works Epic (2018-2025), Epic HT and S-Works Epic HT (2017-2025); Radon Jealous (2018)

The list is a guide: compatible axles can change with model year and version, so check the length and thread of the original axle before ordering.

Compatibility questions: send the frame or fork model and year to support@dragonspinecycling.com and we will confirm the right axle before the order ships.
