Carbon-Ti X-Lock EVO 12x1.5 front thru axle

Home /

Carbon-Ti X-Lock EVO 12x1.5 Front Thru Axle

Regular price $98.48

Shipping calculated at checkout.

Length

120 mm

125 mm

Color — Black

Color

Black

Matte Black

Silver

Red

Blue

Gold

Green

Acid Green

Size chart

Available
Available

Quantity

Carbon-Ti X-Lock EVO 12x1.5 Front Thru Axle $98.48

Sold out

Backorder request

Fast US-based shipping, no tariffs

Secure checkout

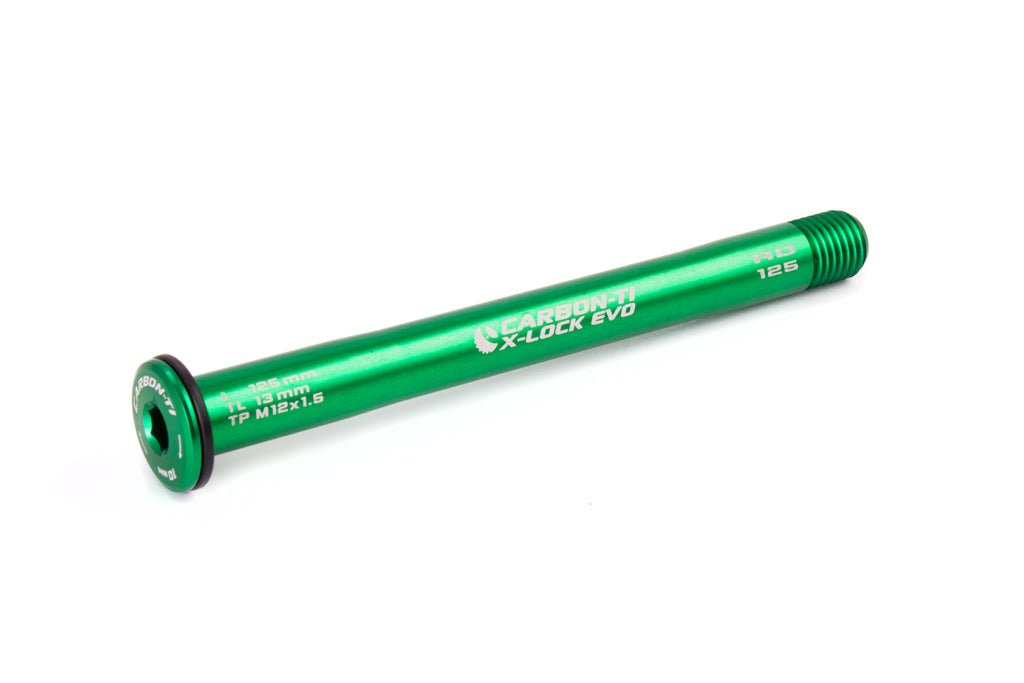

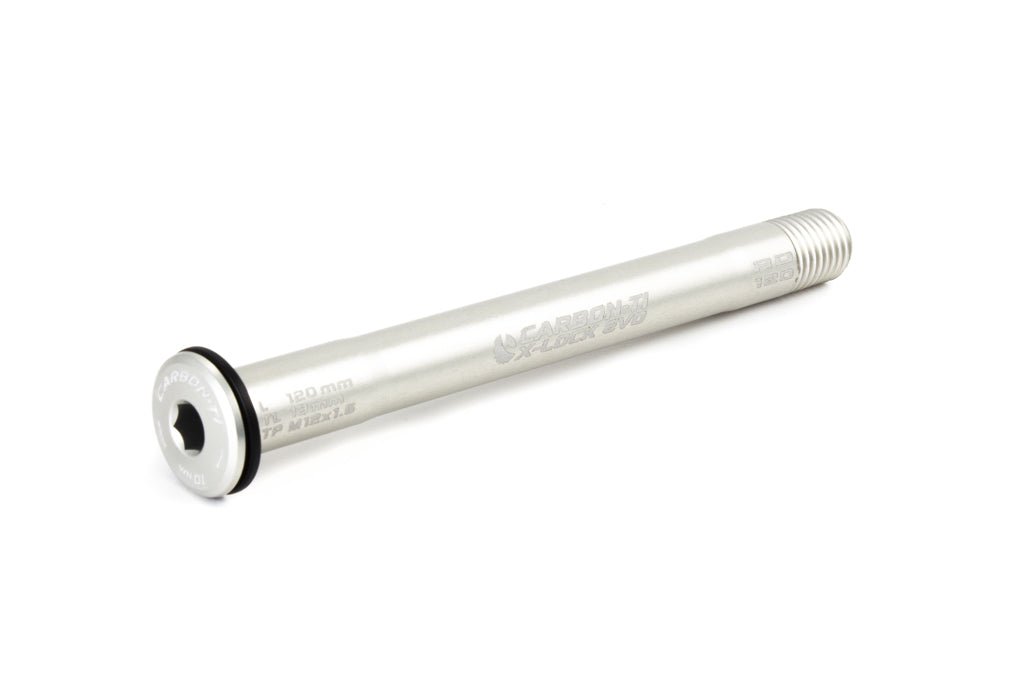

X-Lock EVO front thru axles for 12 mm road and gravel forks with an M12x1.5 thread. CNC machined from AL7075 aluminum with a variable wall thickness and a flat head.

Details

AL7075 aluminum, CNC machined, variable wall thickness

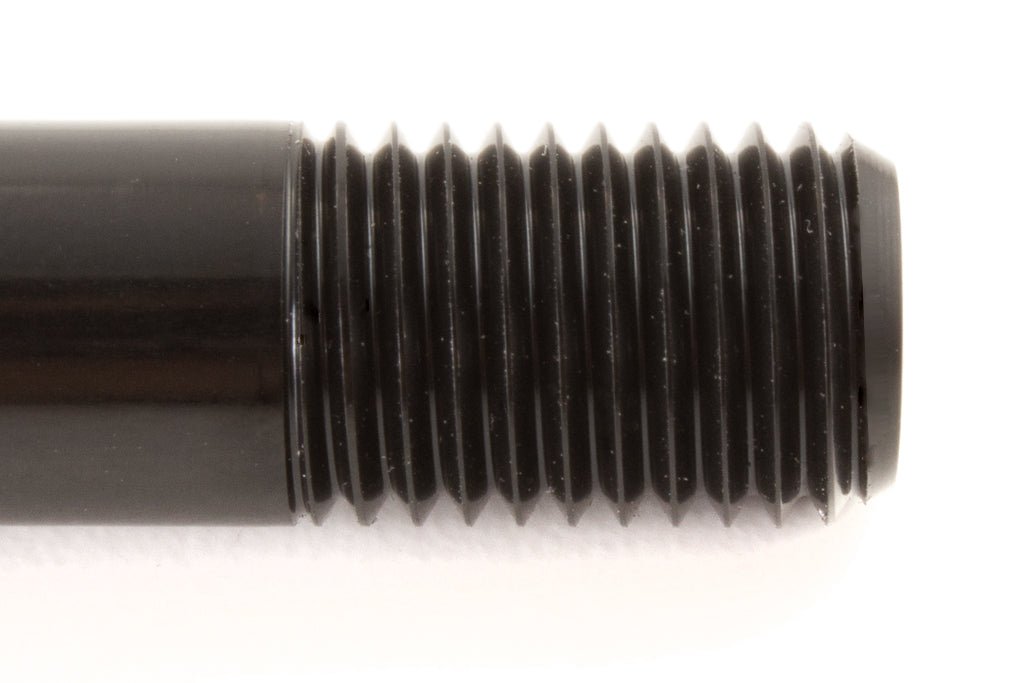

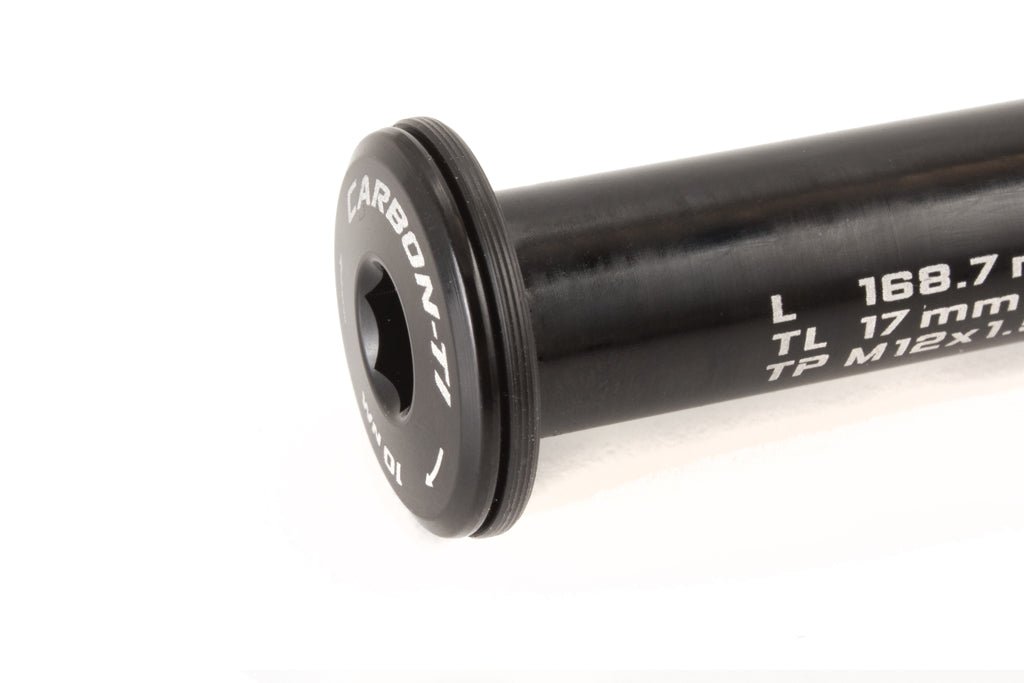

12 mm diameter, M12x1.5 thread, flat head
120 mm (22 g) or 125 mm (23 g)
Laser-etched graphics
Tightens with a 6 mm hex key (not included)
Anodized in Black, Matte Black, Silver, Red, Blue, Gold, Green or Acid Green
Made in Italy

Compatibility

120 mm: Bianchi Aria (2020-2021), Specialissima and XR4 Disc (2021); Cinelli Nemo Tig Gravel and Pressure (2021); ENVE carbon disc fork; Pinarello Disk (2019) and Dogma F (until July 2024, non-UDH model); Scott Addict Gravel (2020-2021) and Foil Disc (2018-2019); Ridley Noah
125 mm: Basso Diamante SV (2021) and Palta (2020), Bianchi Zolder Pro (2019), Cannondale Synapse Disc (2018), Guerciotti Eureka CX (2022), Scott Addict (2020-2021)

The list is a guide: compatible axles can change with model year and version, so check the length and thread of the original axle before ordering.

Compatibility questions: send the frame or fork model and year to support@dragonspinecycling.com and we will confirm the right axle before the order ships.

Free Economy shipping on orders $75+ within the continental US.
Free pick up at Dragonspine Cycling, Chicago.

Standard items

Economy: $12.99, free on $75+ · 5–8 business days
Expedited: $15.14, $2.15 on $75+ · 2–5 business days
UPS 2nd Day Air: $34.99 · up to 3 lb
FedEx Standard Overnight: $64 · up to 3 lb

Oversized items
Wheels and wheelsets, forks, frames and framesets, racks, repair stands, trainers, trailers and bike travel cases.

Economy: $35, free on $750+ · 5–8 business days
Expedited: $45, $10 on $750+ · 2–5 business days

By quote
Standard items over 3 lb by 2nd Day or overnight, oversized items by 2nd Day or overnight, and international shipping. Contact us or call +1 (872) 946-7006.

When orders ship
Items in stock at our Chicago location ordered by 3 PM CT on a business day ship the same day. Items from our warehouse ship within 4–5 business days. Warehouse items are ready for pickup in 4–5 business days.

Free-shipping thresholds are based on the order total after discounts. Full details in our Shipping policy.

Have a question? Contact us now.
