Carbon-Ti X-Lock EVO 12x1.5 X-Colnago thru axle

Home /

Carbon-Ti X-Lock EVO 12x1.5 X-Colnago Thru Axle

Regular price $98.48

Shipping calculated at checkout.

Length

117 mm (front)

159 mm (rear)

Color — Black

Color

Black

Matte Black

Silver

Red

Blue

Gold

Green

Acid Green

Size chart

Available
Available

Quantity

Carbon-Ti X-Lock EVO 12x1.5 X-Colnago Thru Axle $98.48

Sold out

Backorder request

Fast US-based shipping, no tariffs

Secure checkout

X-Lock EVO thru axles for Colnago's 12 mm standard with an M12x1.5 thread: 117 mm for the fork and 159 mm for the rear. CNC machined from AL7075 aluminum with a variable wall thickness and a conical head.

Details

AL7075 aluminum, CNC machined, variable wall thickness

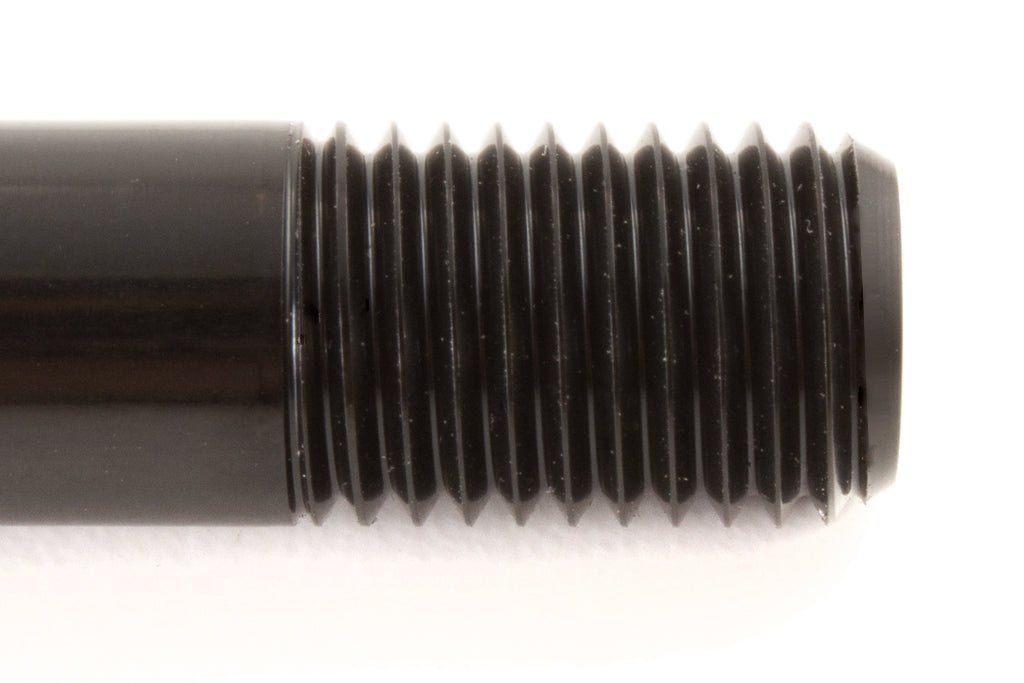

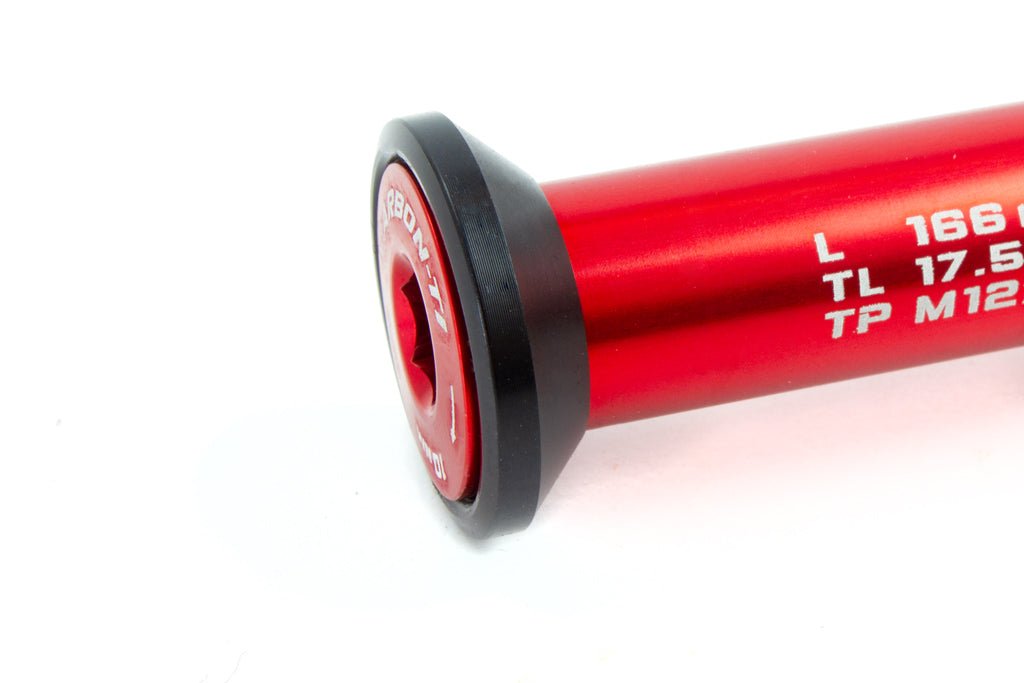

12 mm diameter, M12x1.5 thread, conical head

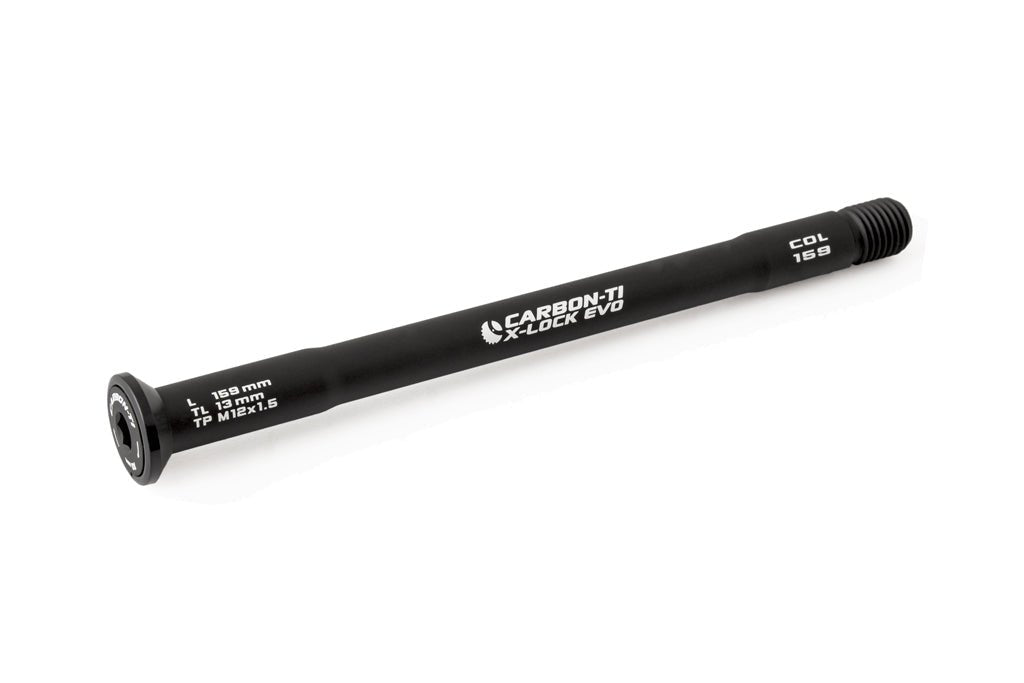

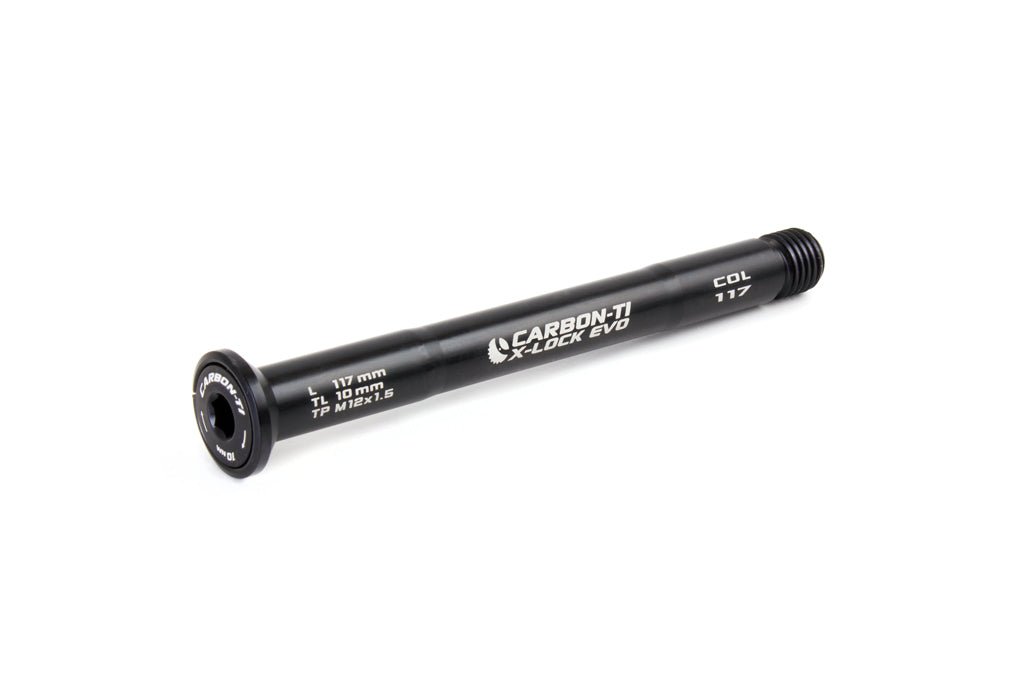

117 mm front (23 g) or 159 mm rear (30.5 g)
Laser-etched graphics
Tightens with a 6 mm hex key (not included)
Anodized in Black, Matte Black, Silver, Red, Blue, Gold, Green or Acid Green
Made in Italy

Compatibility

117 mm front: Colnago C72 (2026), C68 (2022), C64 (2018-2022), V5RS, Y1RS and Steelnovo (2025), V4RS (2023-2024), V3RS and V3 (2019-2022), G4X (2023-2024), G3X (2020-2023), V2 (2018-2020, not Hexlock)
159 mm rear: Colnago C68 (2023-2025), C64 (2018-2021), V4RS (2023-2024), V3RS and V3 (2019-2021), G3X (2020-2023), V2 (2018-2020, not Hexlock). Not for the G4X (2024) or the 2025 Steelnovo, Y1RS and V5RS: those take the X-Lock EVO 12x1.0 X-12 166 mm rear axle

The list is a guide: compatible axles can change with model year and version, so check the length and thread of the original axle before ordering.
