HED Disc Brake Axle Conversion Kits - Dragonspine Cycling

$65.00

Shipping calculated at checkout.

Front

12 mm thru axle + 2 bearings + center sleeve

15 mm thru axle + 2 bearings

Quick release axle

None (Rear Only)

Quick release axle + 2 bearings + center sleeve

Rear

None (Front Only)

12 x 142 mm for 545 5-pawl (with end cap)

Size chart

In stock, ready to ship
Shipping soon

Quantity

HED Disc Brake Axle Conversion Kits $65.00

Fast US-based shipping, no tariffs

Secure checkout

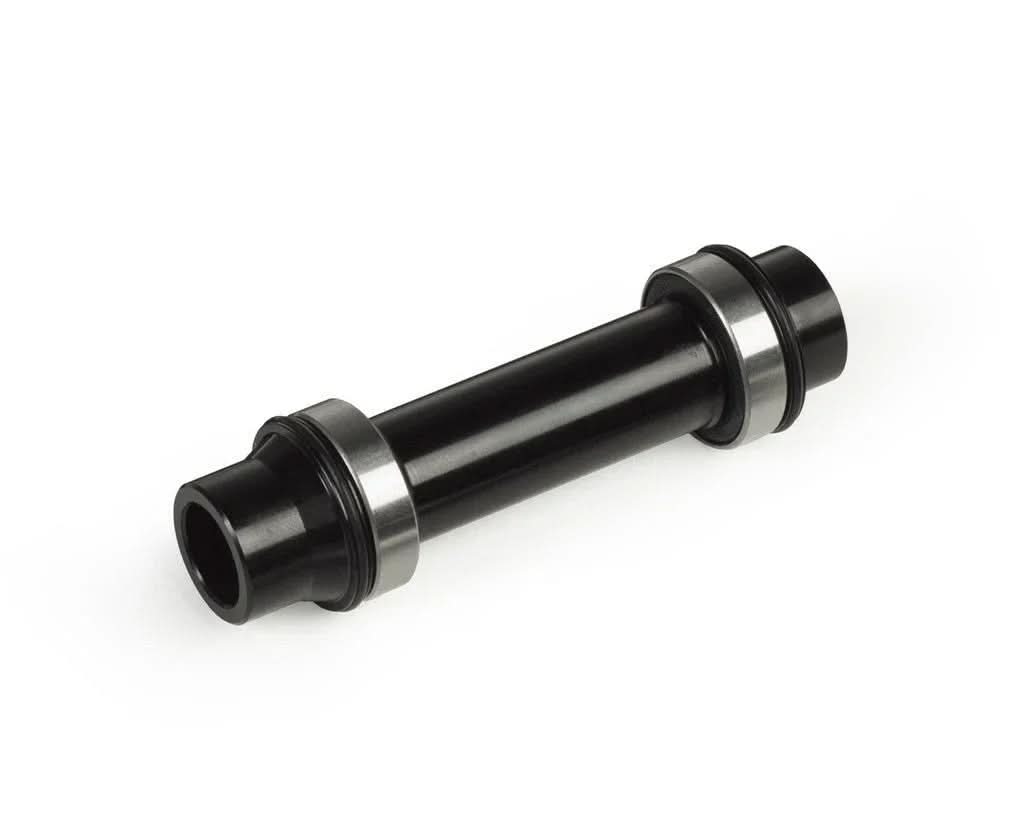

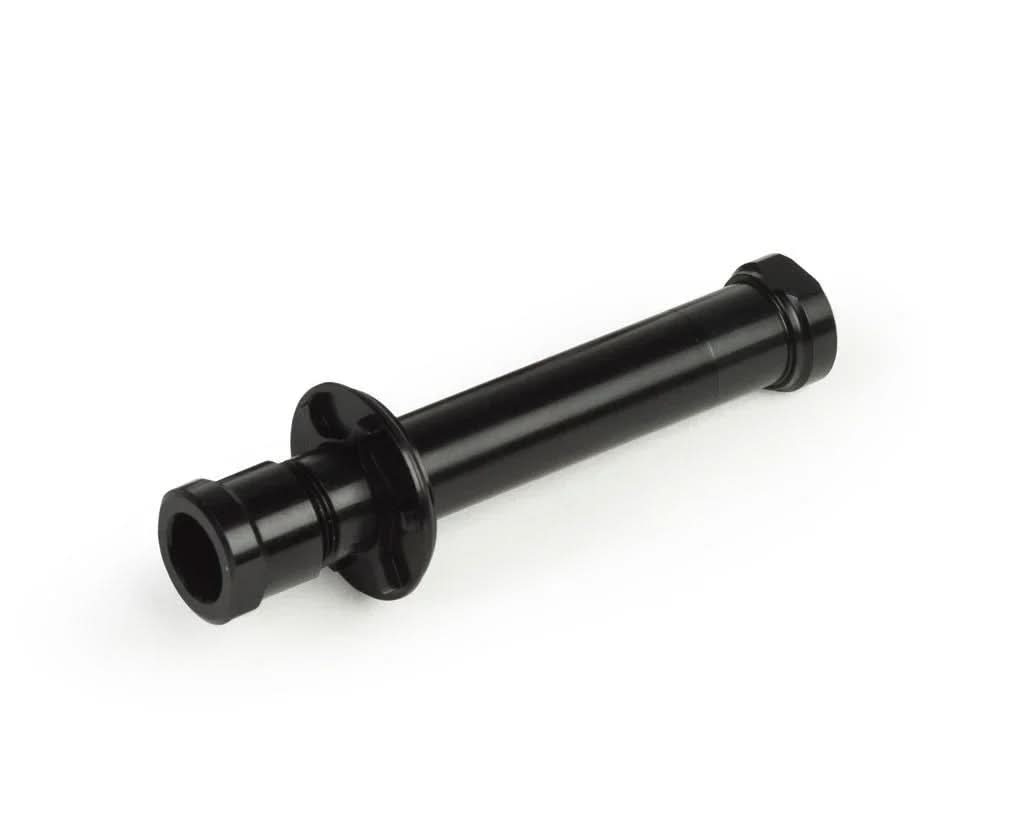

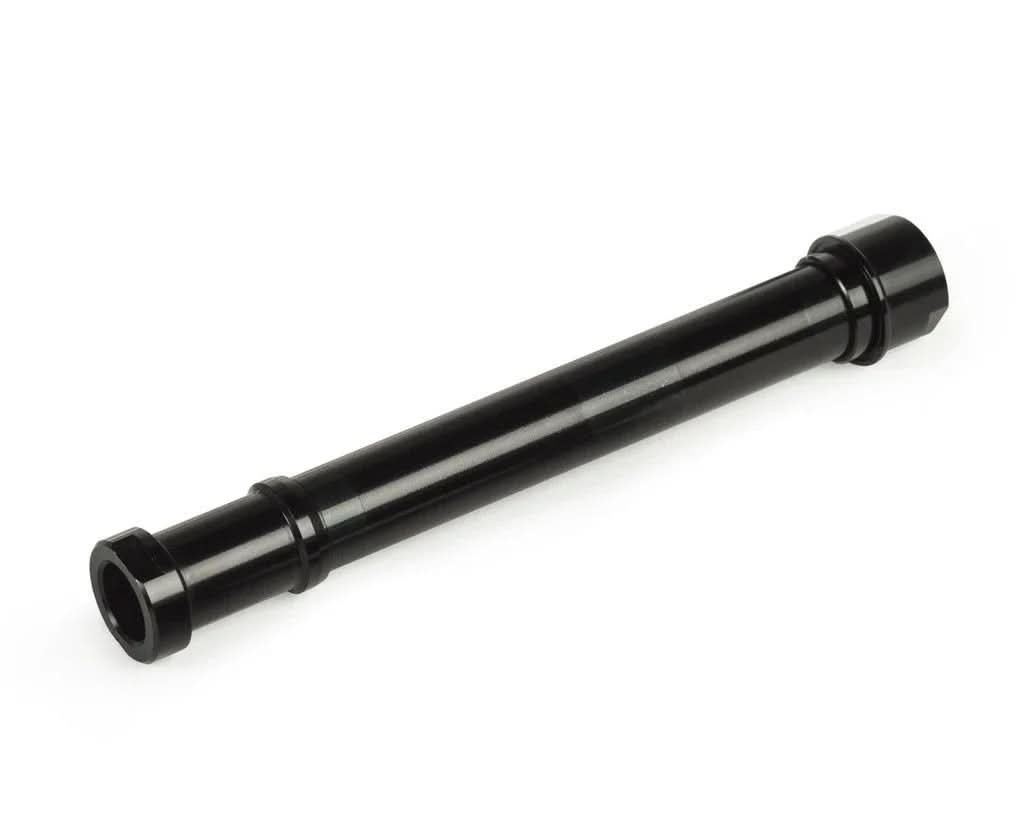

HED Disc Brake Axle Conversion Kits.

The HED 545 hub set converts between quick release and thru axle. Front conversions from 15 mm to 12 mm or to quick release need smaller-bore bearings and a center sleeve, which are included in the kits that list them. Rear: quick release to 12 x 142 mm thru axle for the 5-pawl 545 hub, with end cap.

Lockring not included: a Shimano external 16-notch lockring, such as the XT M8010, completes the 15 mm conversion. Quick release kits do not include skewers.

Choose the front kit, the rear kit or both.

Specifications

Spec	Detail
Part numbers	HUCL12KIT, HU502FAXLE, HUCLQR-F front; HU503RAXLE rear
Not included	Lockring, skewers
