HED Freehub Body
- Fast US-based shipping, no tariffs
- Secure checkout

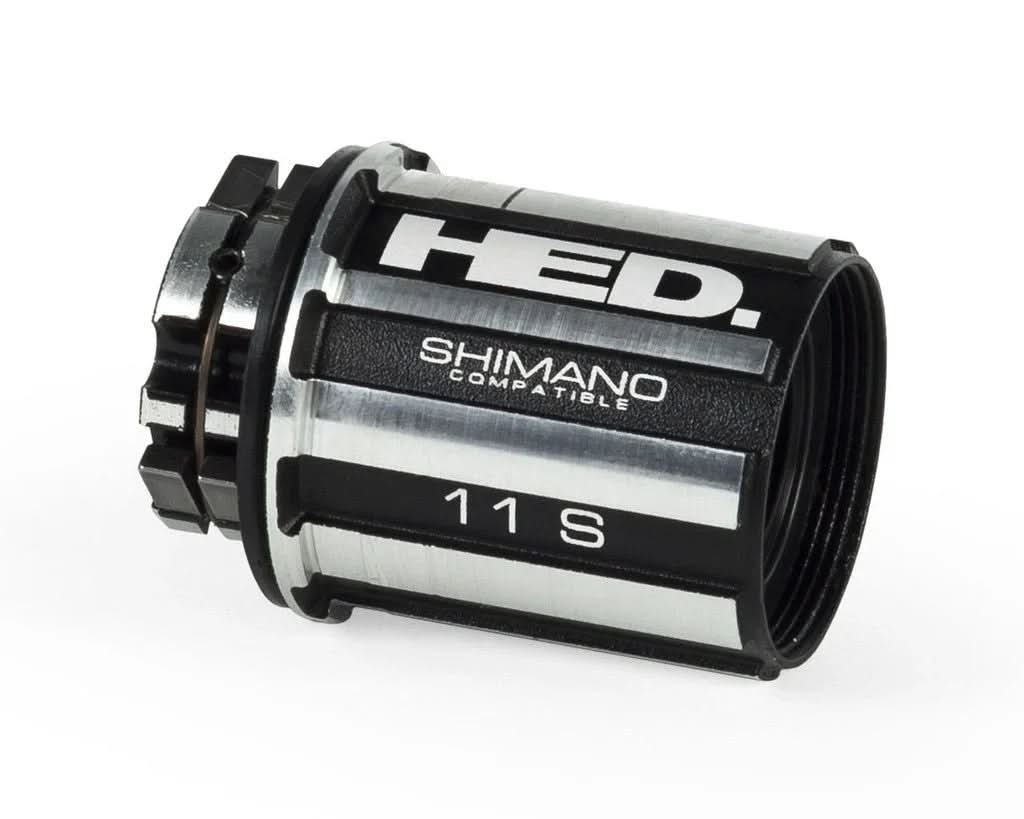

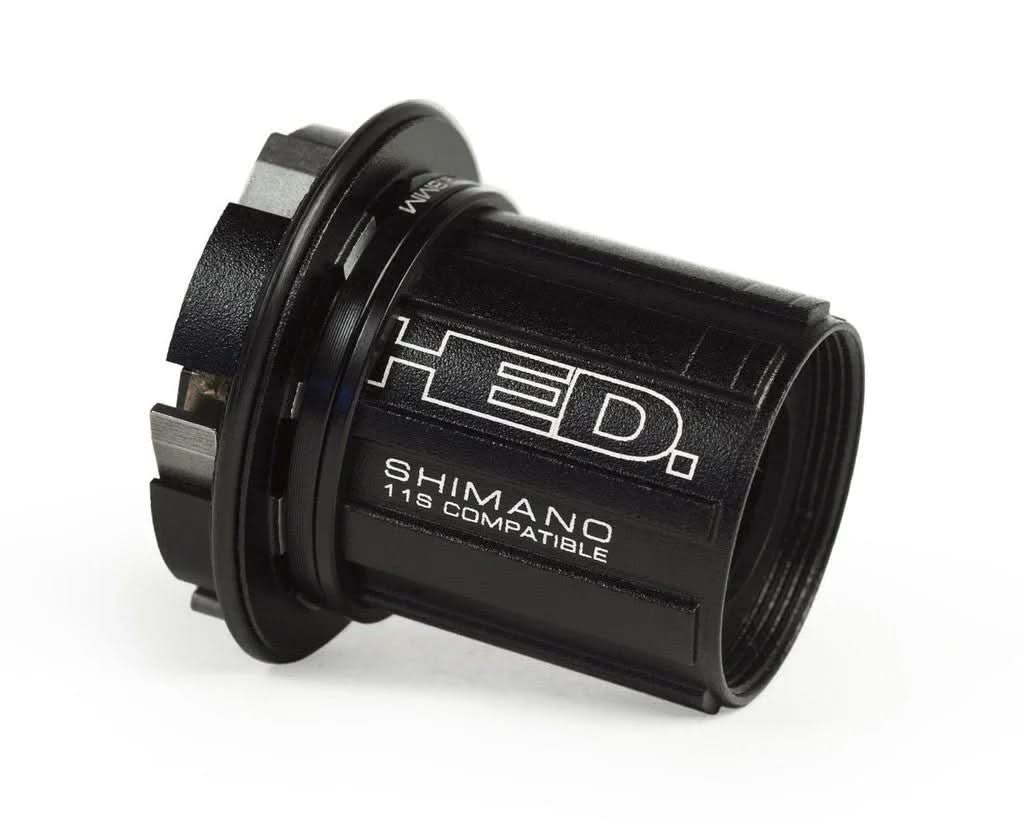

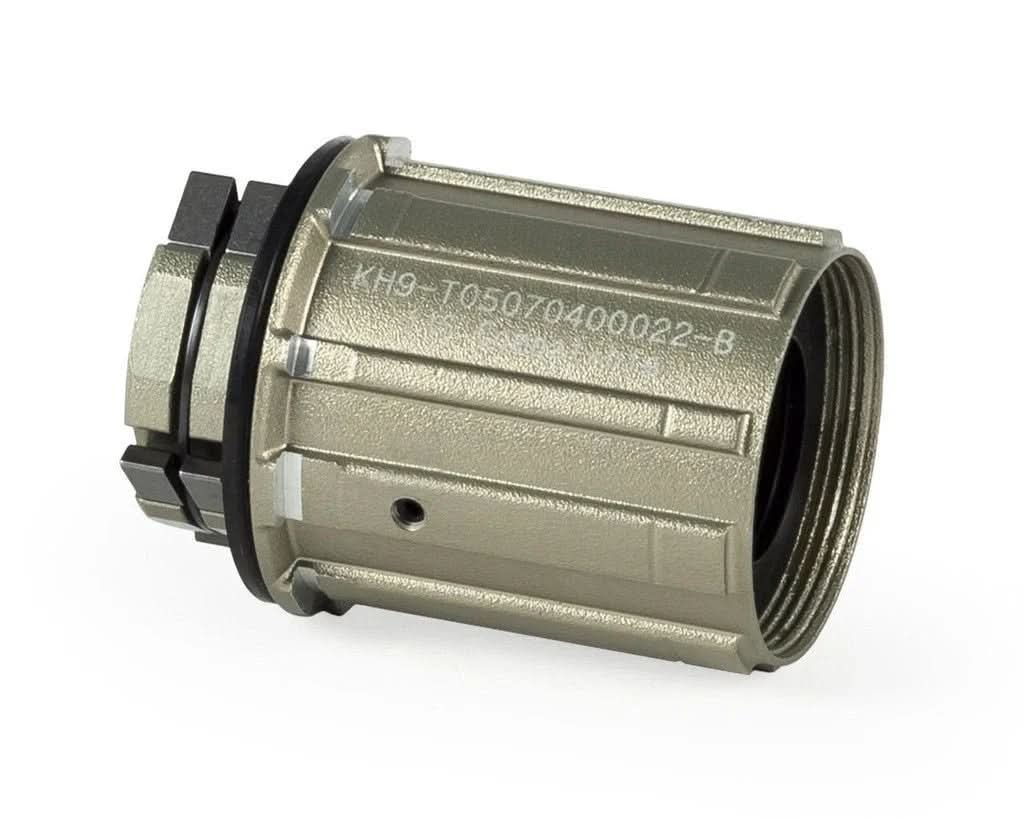

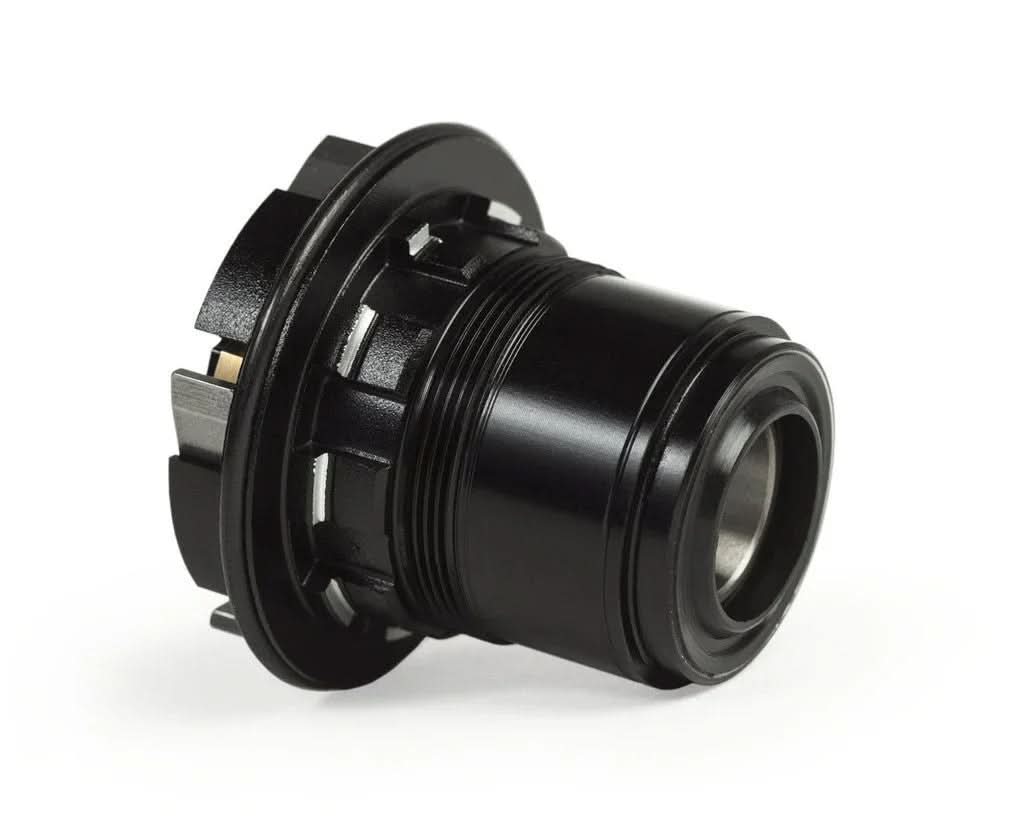

HED Freehub Body. Genuine replacement freehubs for HED hubs.
The replacement freehub must match the pawl count of the hub, and HED freehubs do not cross over to other hubs or other brands.
5-pawl Pro hub (2016 on), rim and disc brake and Brickhouse: Ardennes RA Pro, Ardennes RA Black, Jet RC Pro, Jet RC Black, Jet RC Performance, Emporia GA Pro, Vanquish Pro and Brickhouse fat bike hubs; 1 mm thrust washer included. 4-pawl Performance disc hub (2018 on): Ardennes RA Performance, Emporia GA Performance and Vanquish; spacer included. Dual Ratchet 36t straight pull disc hub (2025): Lancaster G25 and Stillwater G50. 3-pawl Sonic hub (2009 to 2015): Shimano HG only, replacing original Shimano 10 or 11-speed freehubs; not for Campagnolo freehub wheels.
Choose the hub, then the freehub body.
Specifications
| Spec | Detail |
|---|---|
| 5-pawl Pro | HU105 HG, HU656 Microspline, HU206 XDR, HU207 XD (fat bike), HU658 N3W |
| 4-pawl Performance | HU652 HG, HU657 Microspline, HU654 XDR, HU659 N3W |
| Dual Ratchet 36t | HU301 HG, HU303 Microspline, HU302 XDR |
| 3-pawl Sonic | HU651 HG |
