Manitou Mezzer Pro Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset BLK

$1,099.99
/
Shipping calculated at checkout.
Size chart
  • In stock, ready to ship
  • Shipping soon
Manitou Suspension Fork ( ) - Dragonspine Cycling
Manitou Mezzer Pro Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset BLK $1,099.99
  • Fast US-based shipping, no tariffs
  • Secure checkout

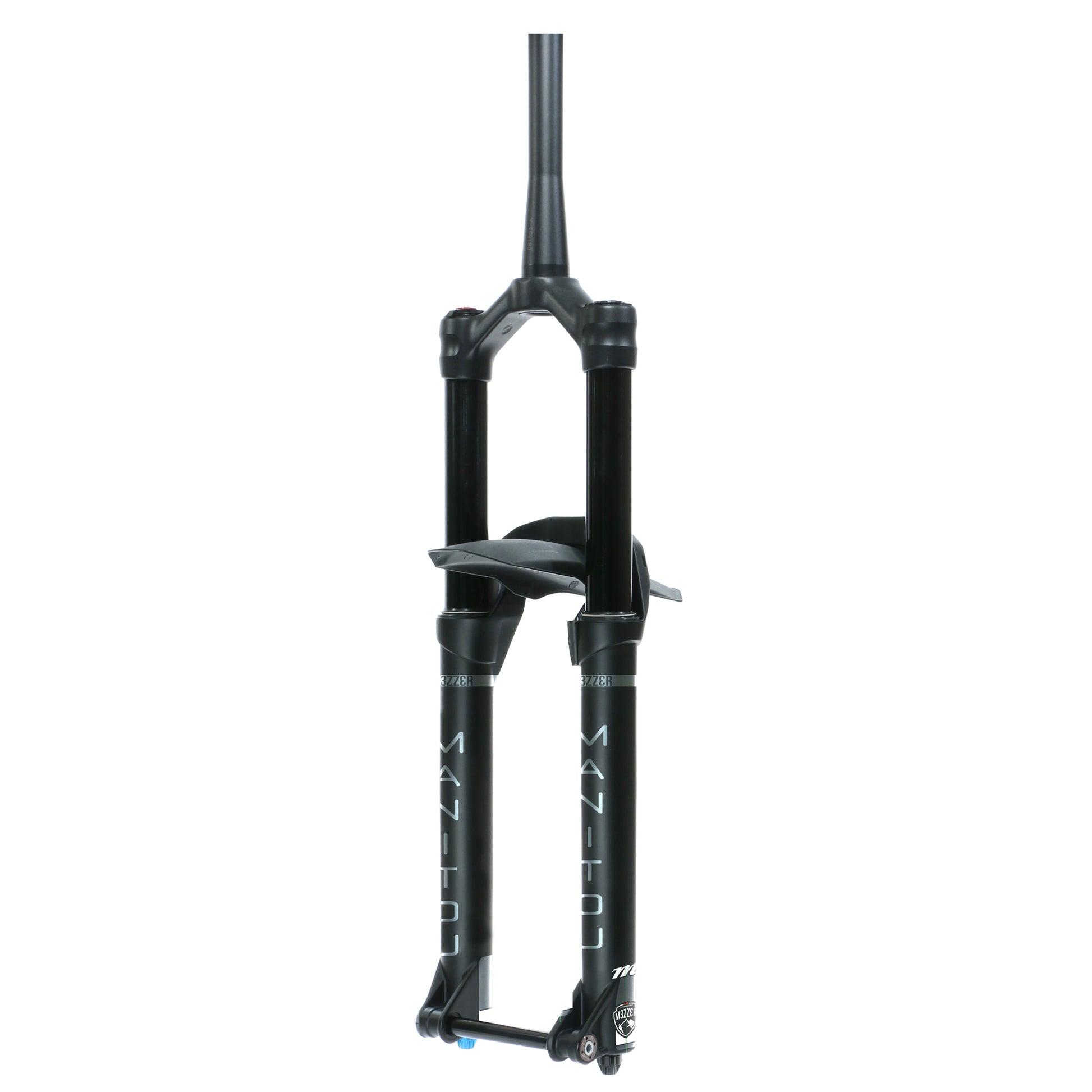

Manitou Mezzer Pro Suspension Fork - 29" 160 mm 15 x 110 mm 44 mm Offset Black. Loaded with unprecedented features Mezzer Pro gives you the handling and control you need for the ultimate enduro ride. Built around 37mm stanchions and a Reverse-Arch lower leg design with the Hexlock SL2 axle Mezzer Pro is the stiffest chassis in its category.
  • 37mm stanchions Reverse-Arch design and Hexlock SL2 axle for the ultimate stiffness
  • Fully adjustable IRT air spring to fine tune ride feel
  • Sealed MC2 damper provides a range of blow-off thresholds to satisfy any requirement with separate high-speed and low-speed adjustments
  • 140mm to 180mm internally adjustable travel in 10mm increments (travel spacers included)
  • Integrated flexible fender can be installed/removed by three small screws threaded into the arch of the fork
    • TECH SPECS
    Steerer Type Tapered
    Lockout Switch None
    Brake Type Post Mount 180
    Negative Spring Air
    Travel (mm) 160
    Offset 44
    Axle to Crown Length 594
    Front Axle 15mm Thru x 110mm
    Maximum Tire Width 74
    S.H.I.S. Stem Clamp Diameter 28.6
    Color Black
    Crown Race 40
    Weight 2032
    Wheel Size 29"
    Designed for ebike Yes
    External Adjustments Low Speed Compression Damping
    External Adjustments High Speed Compression Damping
    External Adjustments Rebound Damping
    Defined Color Black
    Positive Spring Air
    Stanchion Diameter 37
    Steerer Tube Length (mm) 248
