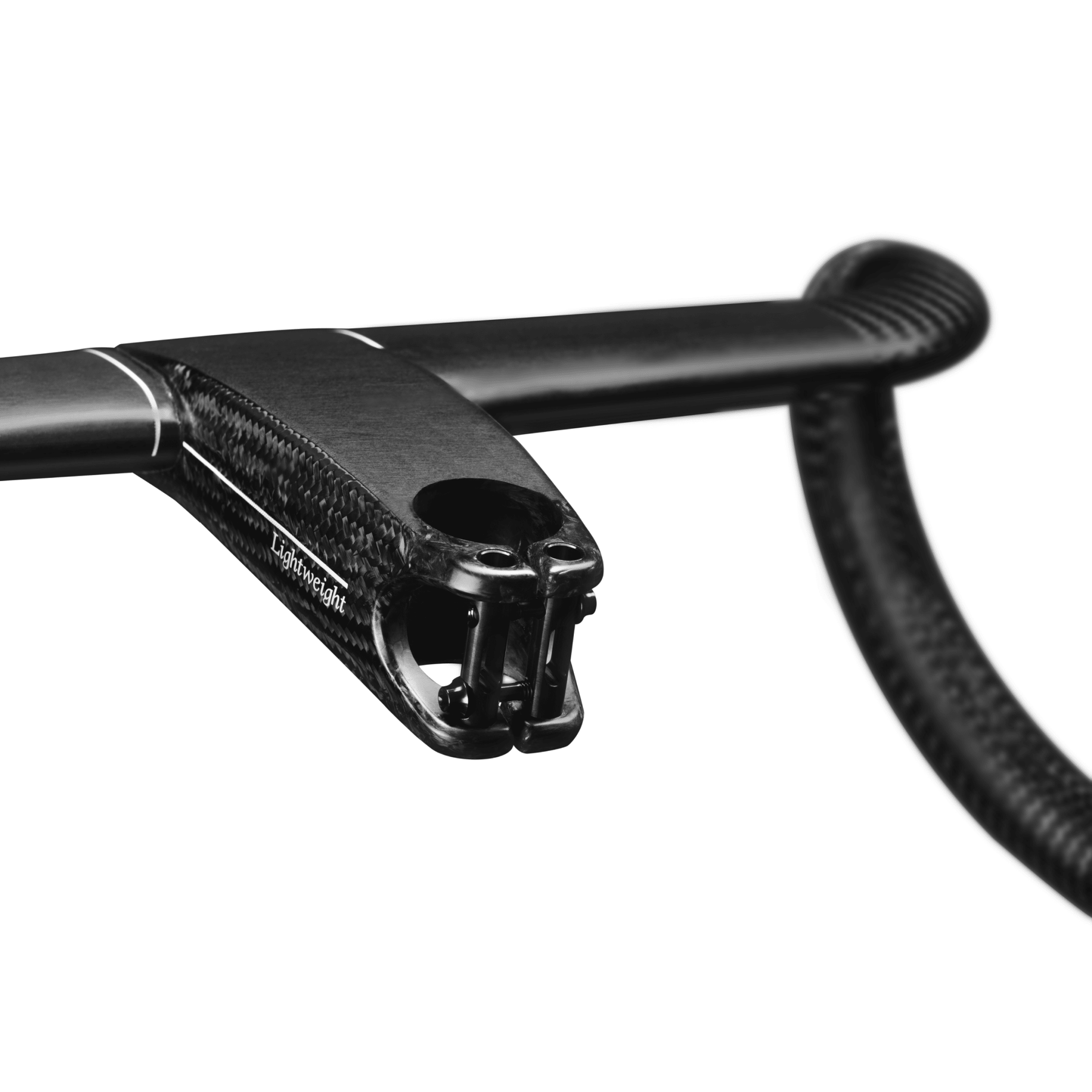

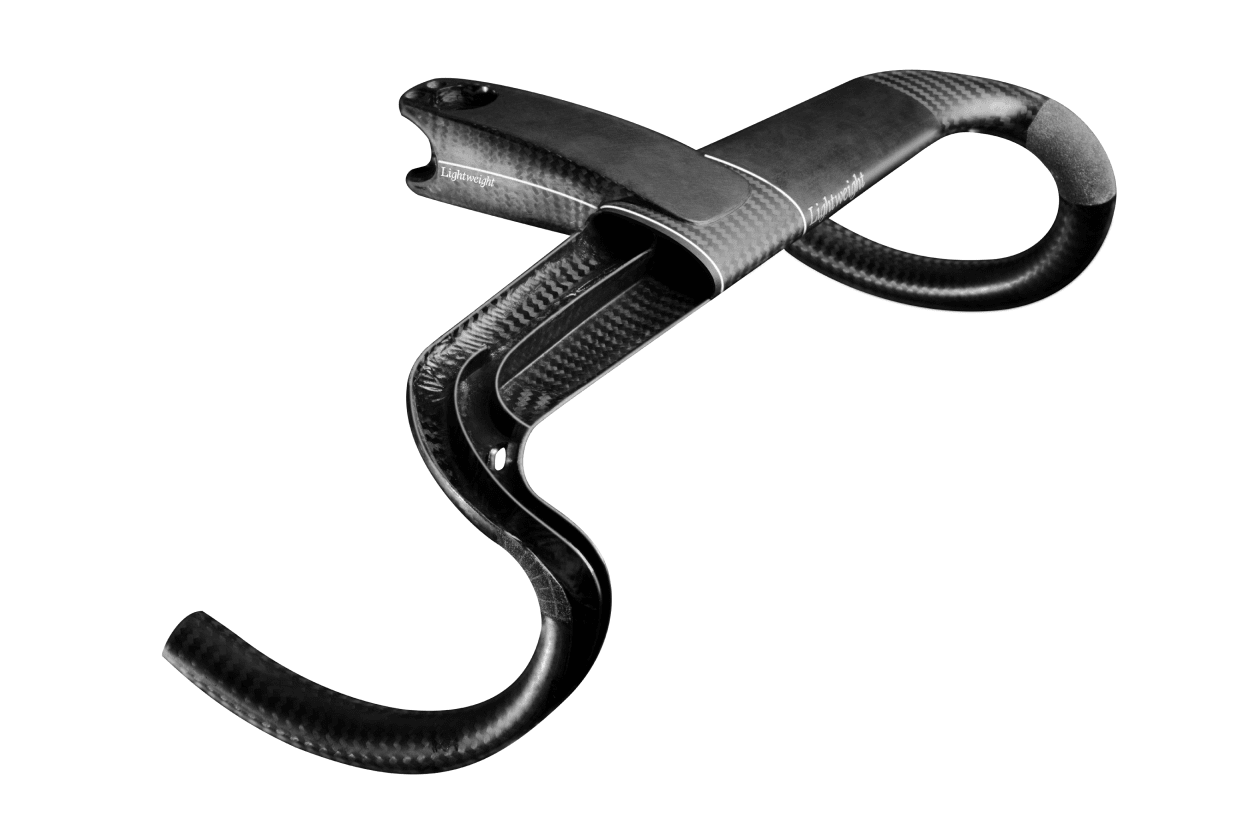

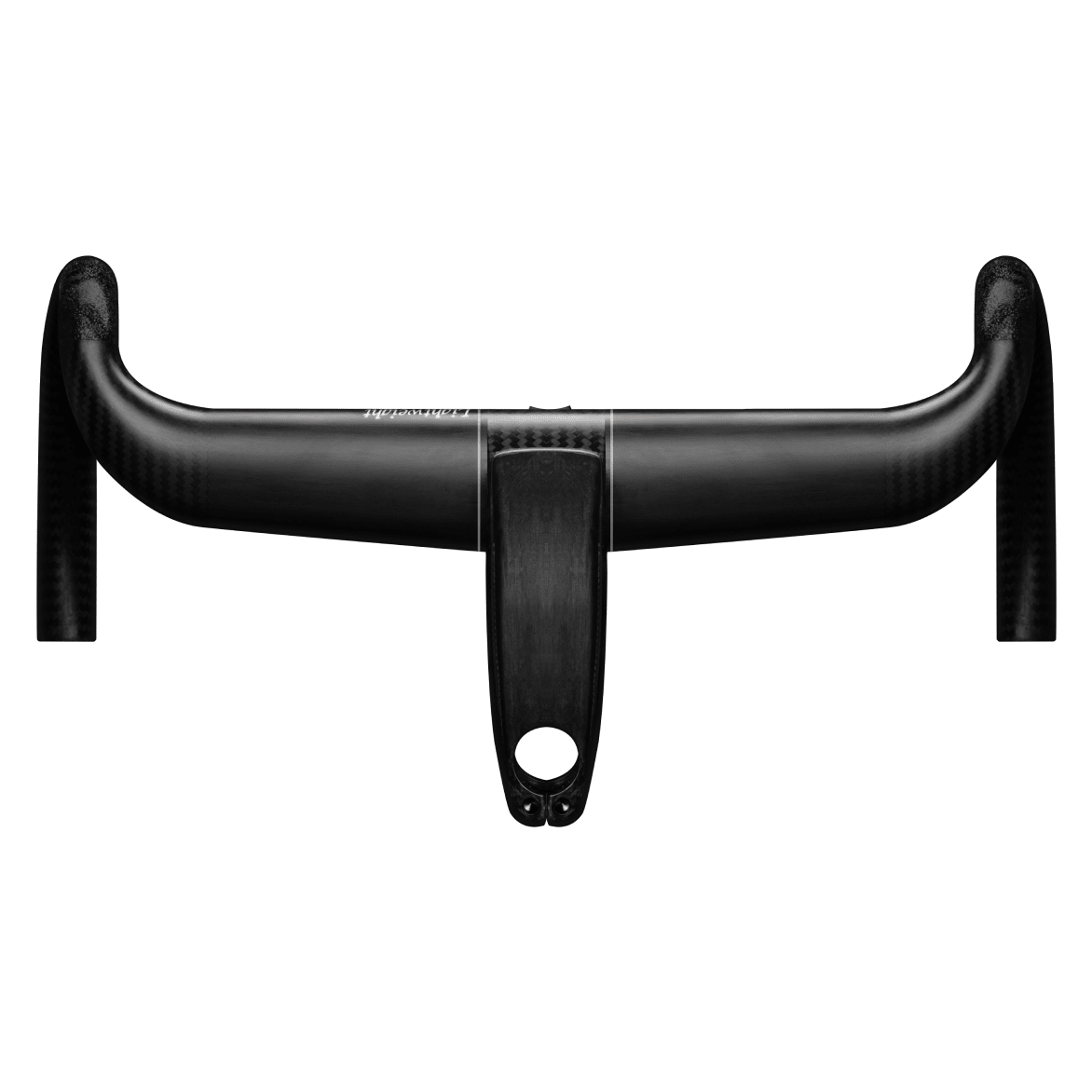

Lightweight HPC Cockpit. Lightweight engineering at the front of the bike.

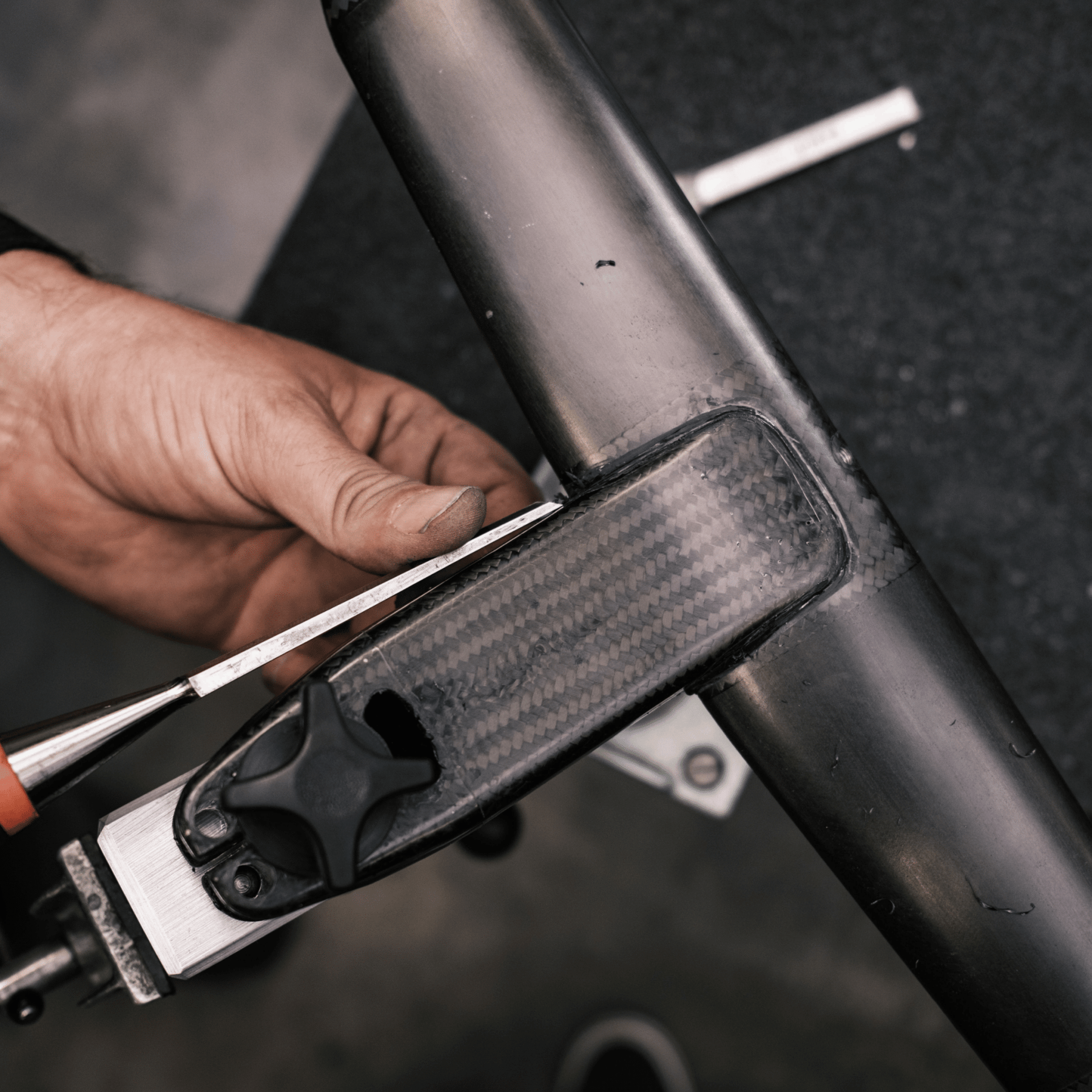

Lightweight spent three years and 51 prototypes developing the HPC, an integrated carbon bar and stem built from 142 individually cut carbon patches of T800 and M40J fiber. Internal ribs reinforce the key zones and guide the brake lines inside, and the cockpit weighs 270 g.

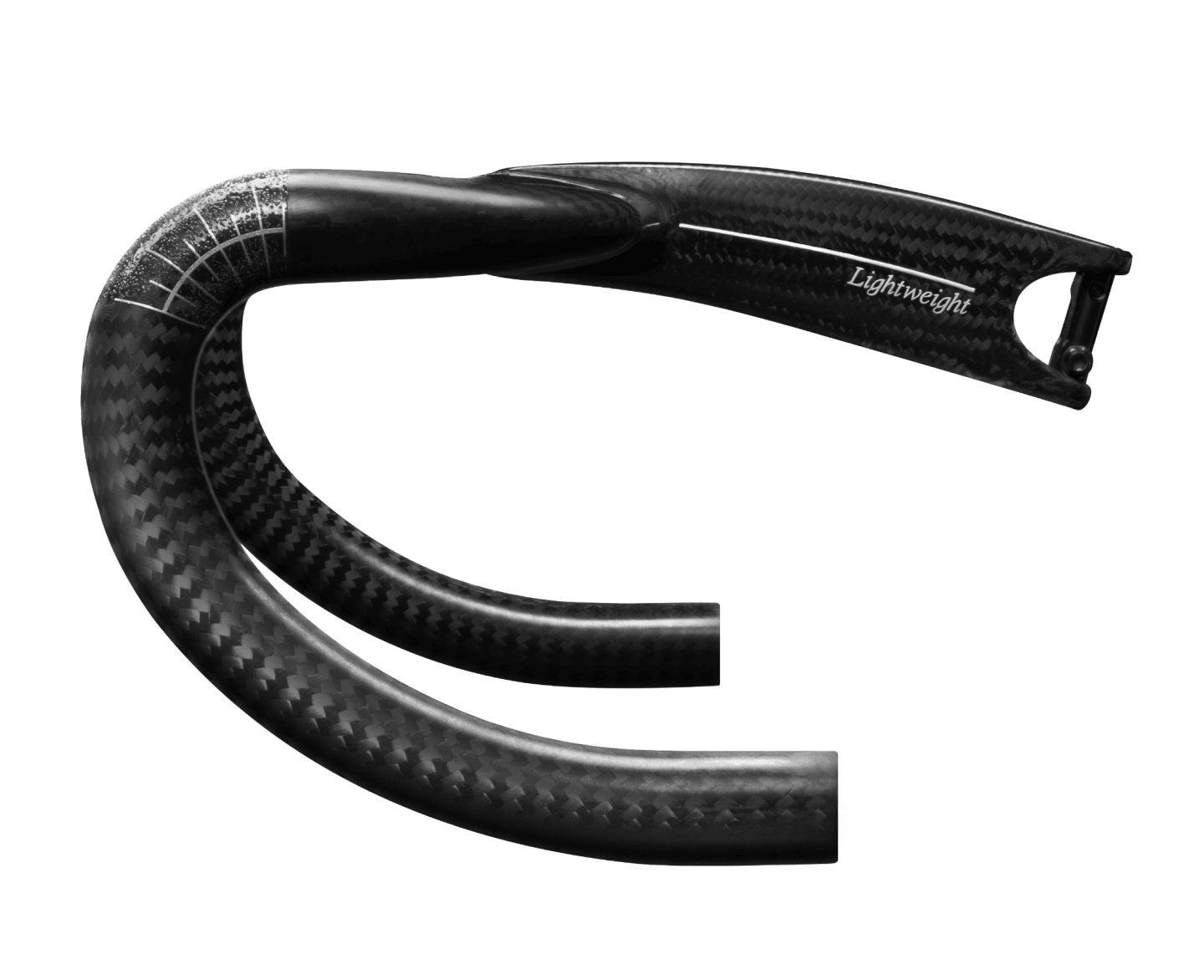

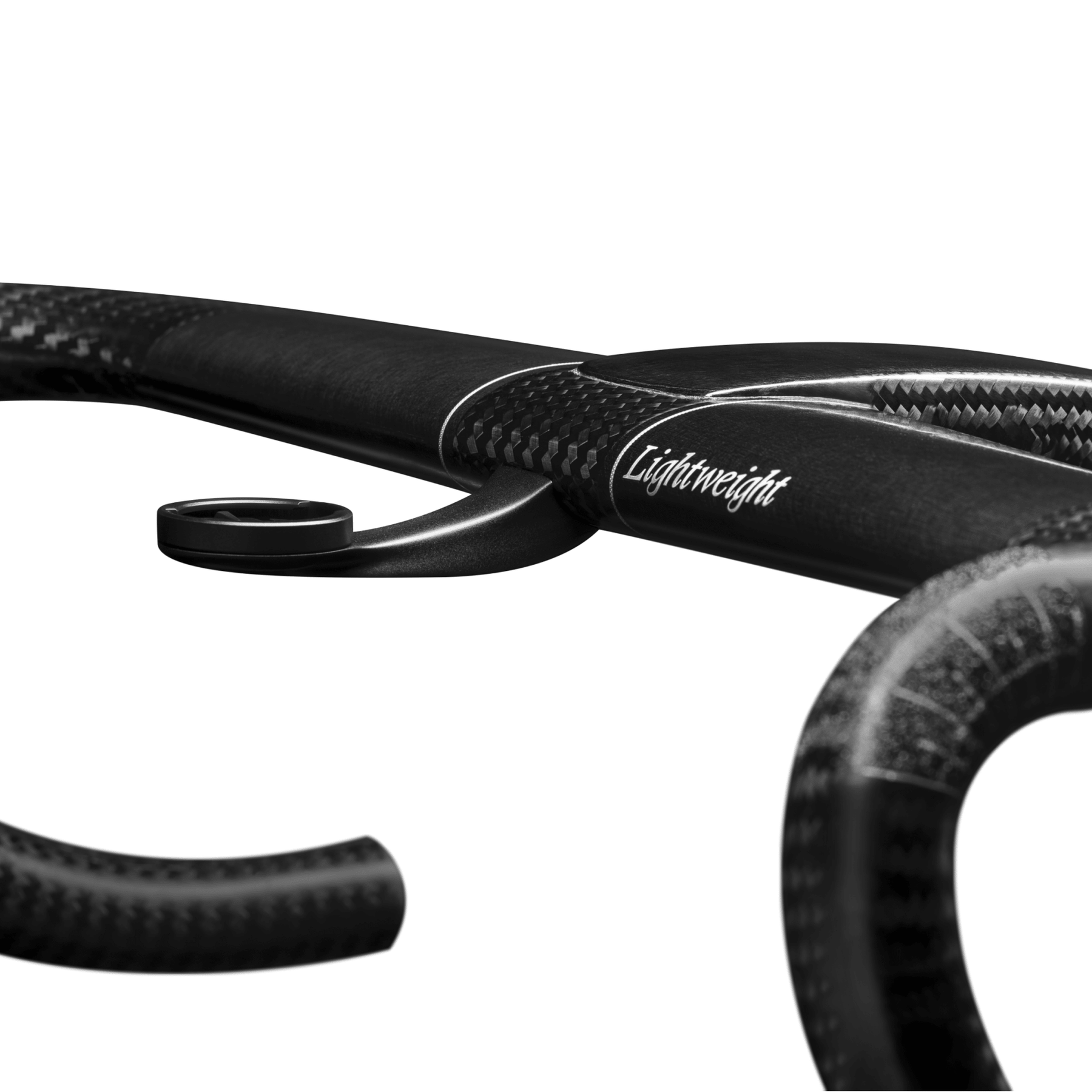

Aero tops, a 9° flare and a -6° stem angle keep the front end narrow and clean. Each bar width comes with its own drop of 118, 121 or 126 mm and an 83 mm reach, and the integrated computer mount interface keeps the head unit in clear view (Lightweight's mount is sold separately). Made in Friedrichshafen, Germany.
Choose the stem length and the bar width.
Specifications
| Spec | Detail |
|---|---|
| Bar width (tops / drops, center to center) | 36/40 cm, 38/42 cm or 40/44 cm |
| Flare | 9° |
| Stem angle | -6° |
| Stem length | 90, 100, 110 or 120 mm |
| Drop | 118 mm (36 cm), 121 mm (38 cm), 126 mm (40 cm) |
| Reach | 83 mm |
| Weight | 270 g |
| Construction | Prepreg carbon bar, RTM carbon stem, 142 carbon patches |
| Cable routing | Fully internal |
| Computer mount | Integrated interface, mount sold separately |
| Made in | Friedrichshafen, Germany |
