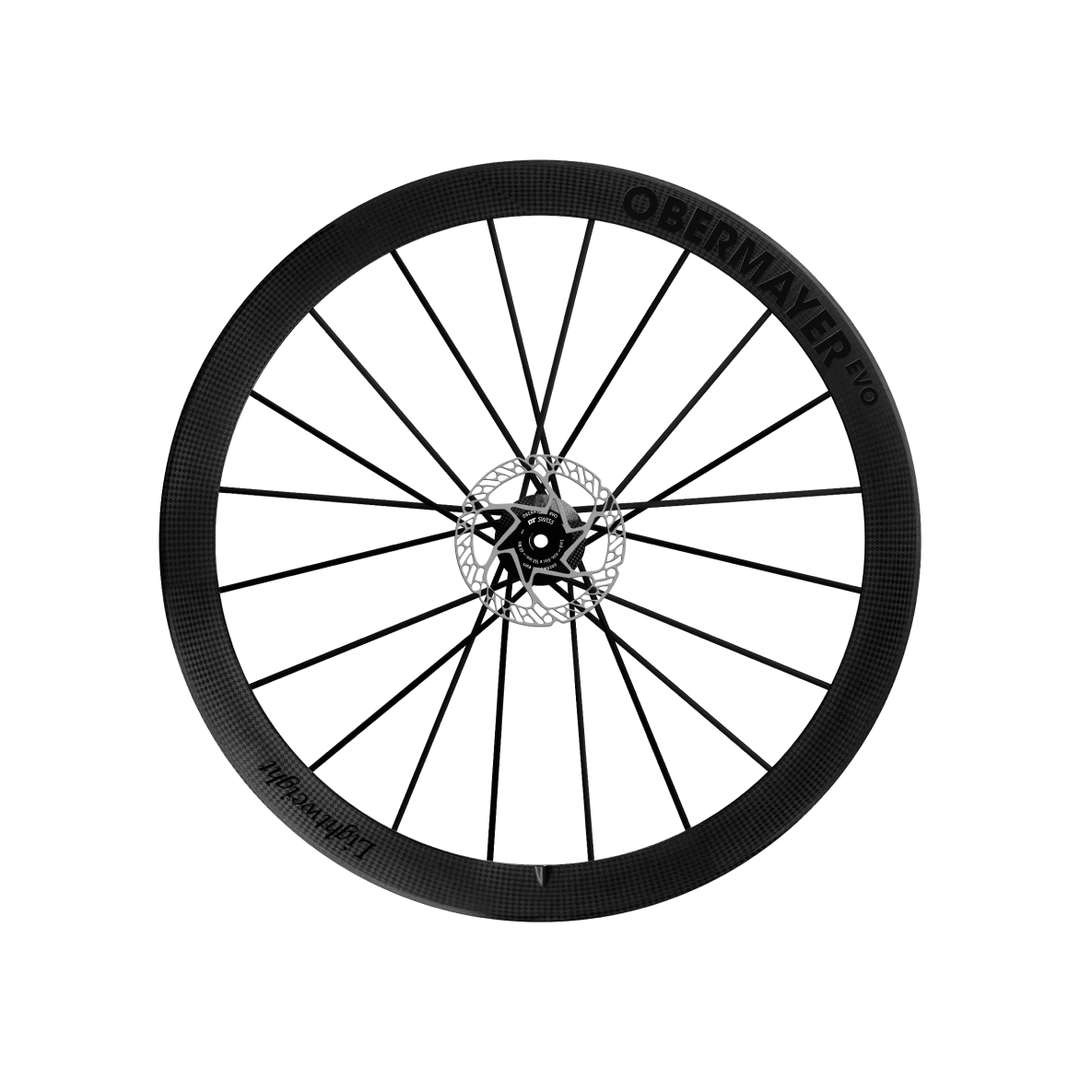

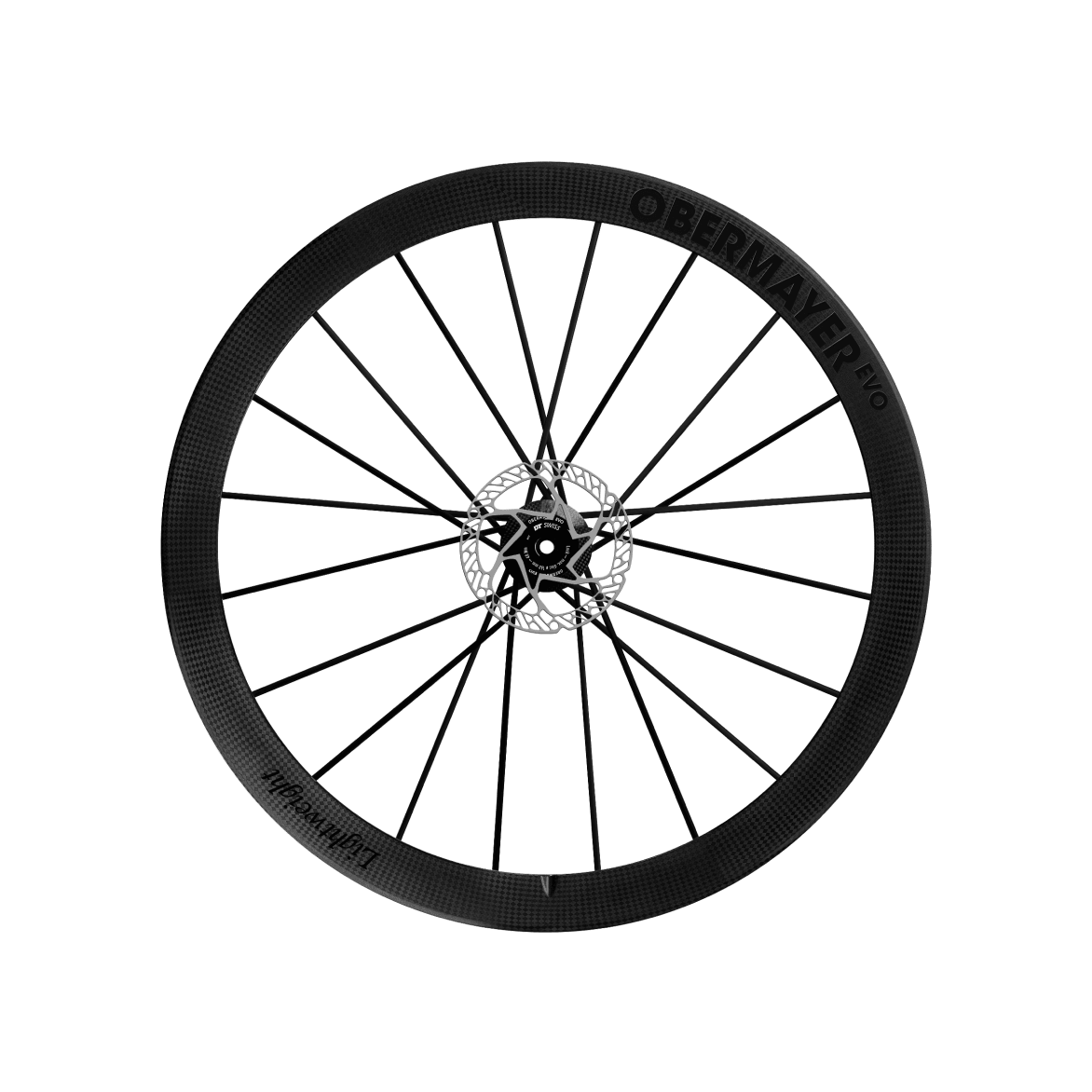

Lightweight Obermayer EVO. 1,230 grams for the pair.
The Obermayer EVO is Lightweight's benchmark for climbing, training and racing: a 48 mm full-carbon disc wheelset that weighs 1,230 g, among the lightest disc wheelsets made. Its stiffness-to-weight ratio turns every pedal stroke into forward speed.
Twenty full-carbon spokes per wheel run from rim to rim through the hub and are permanently bonded, so there are no nipples or threads to loosen and no loss of spoke tension. The Pentagon SL hub trims 70 g per set, runs DT Swiss 180 EXP internals and gives braking forces a secure path from tire to disc on long descents. Built by hand in Friedrichshafen, Germany.

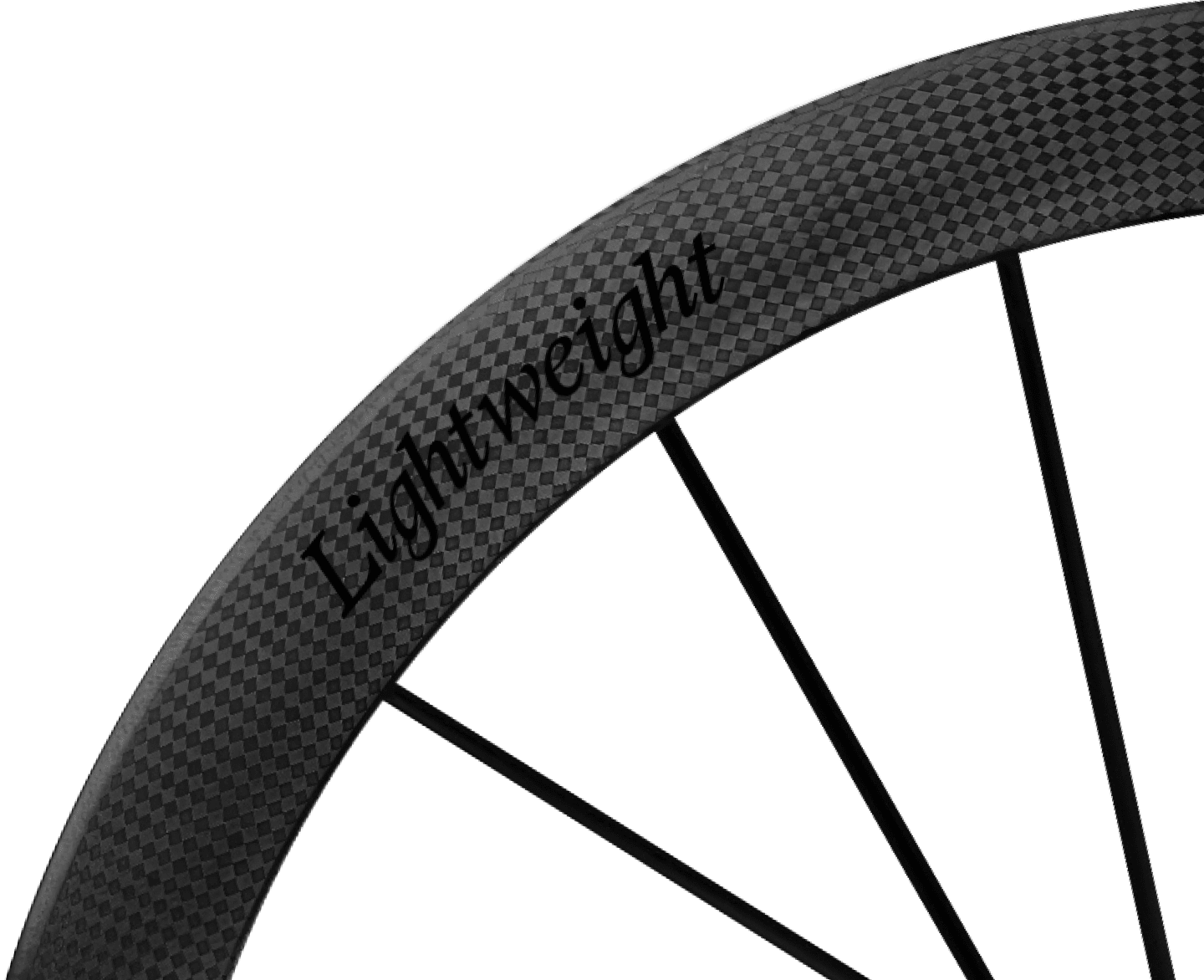

Choose the front wheel, the rear wheel with the matching freehub body, or the complete wheelset. This page is the Schwarz ED version with Lightweight black decals and CeramicSpeed bearings; the Standard version with silver decals and steel bearings is one click away.
Specifications
| Spec | Front | Rear |
|---|---|---|
| Rim depth | 48 mm | 48 mm |
| Rim width | 18.2 mm internal, 24 mm external | 18.2 mm internal, 24 mm external |
| Rim | 700c, hooked, closed rim bed, tubeless ready | 700c, hooked, closed rim bed, tubeless ready |
| Spoke count | 20 full-carbon, rim to rim | 20 full-carbon, rim to rim |
| Hub | Lightweight Pentagon SL, DT Swiss 180 EXP internals | Lightweight Pentagon SL, DT Swiss 180 EXP internals |
| Bearings | CeramicSpeed | CeramicSpeed |
| Axle | 12 x 100 mm thru-axle | 12 x 142 mm thru-axle |
| Brake | Centerlock disc, 160 mm rotor | Centerlock disc, 160 or 140 mm rotor |
| Freehub body | None | HG, XDR, Campagnolo or N3W |
| Wheel size | 700c | 700c |
| Wheel weight | 568 g | 662 g |
| Wheelset weight | 1,230 g (±3%) | |
| Tires | Tubeless ready, 25-32 mm | Tubeless ready, 25-32 mm |
| Maximum pressure | 7 bar / 102 psi with 26-28 mm tires, 6 bar / 87 psi with 29-32 mm | 7 bar / 102 psi with 26-28 mm tires, 6 bar / 87 psi with 29-32 mm |
| Approved use | Road | Road |
| Maximum system weight | 100 kg / 220 lb (rider, bike and luggage) | |
| Warranty | 5 years from Lightweight | |
| Made in | Friedrichshafen, Germany | |
