Lightweight Pfadfinder EVO Disc Brake Gravel Wheels - Silver Decal
- Fast US-based shipping, no tariffs
- Secure checkout

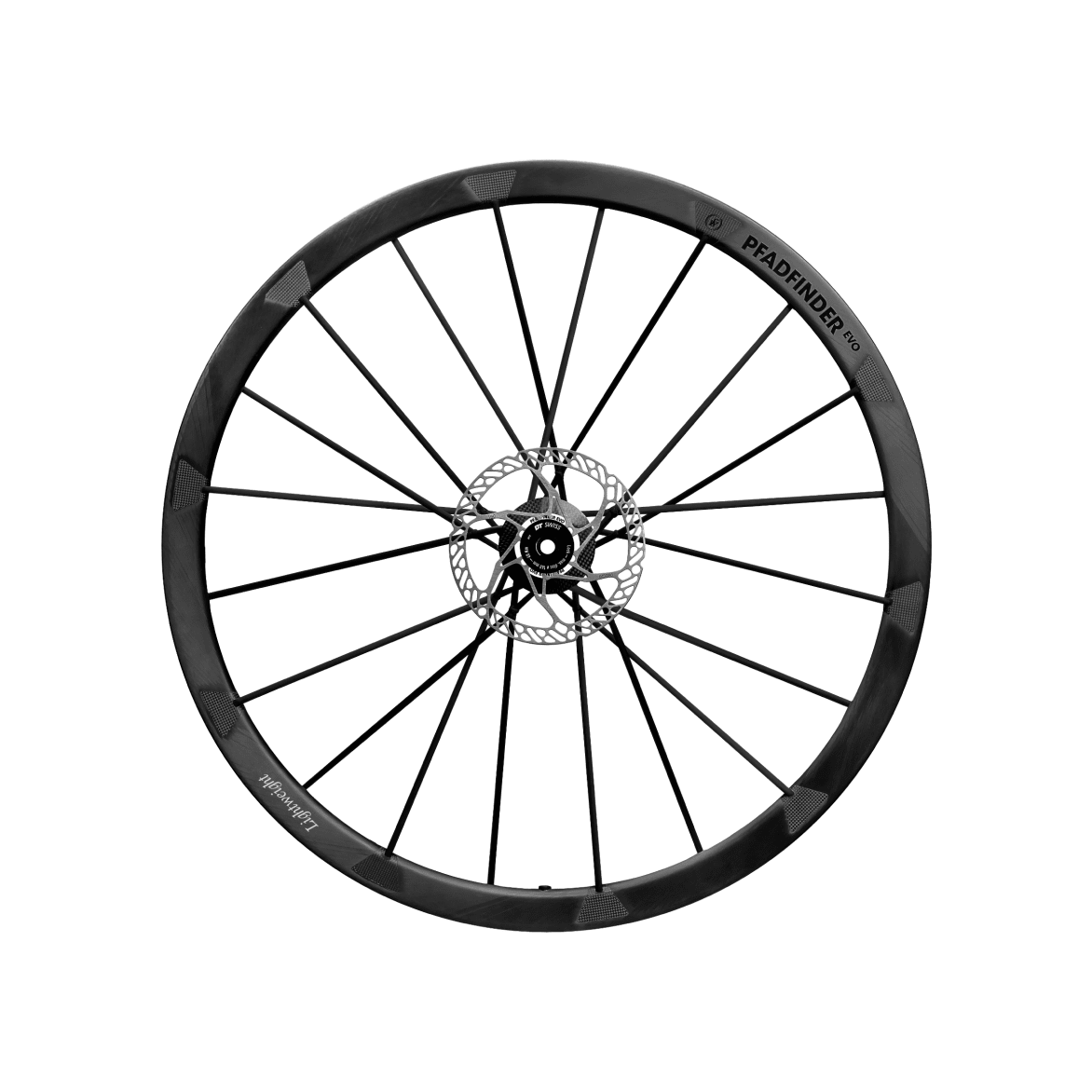

Lightweight Pfadfinder EVO. Full carbon for gravel.
Pfadfinder is German for pathfinder, and this is Lightweight's full-carbon disc wheelset for gravel. The 36 mm rim takes tires up to 40 mm wide, Lightweight approves it for both road and gravel, and the set weighs 1,430 g. The layup balances comfort over rough ground with the snap Lightweight wheels are known for.

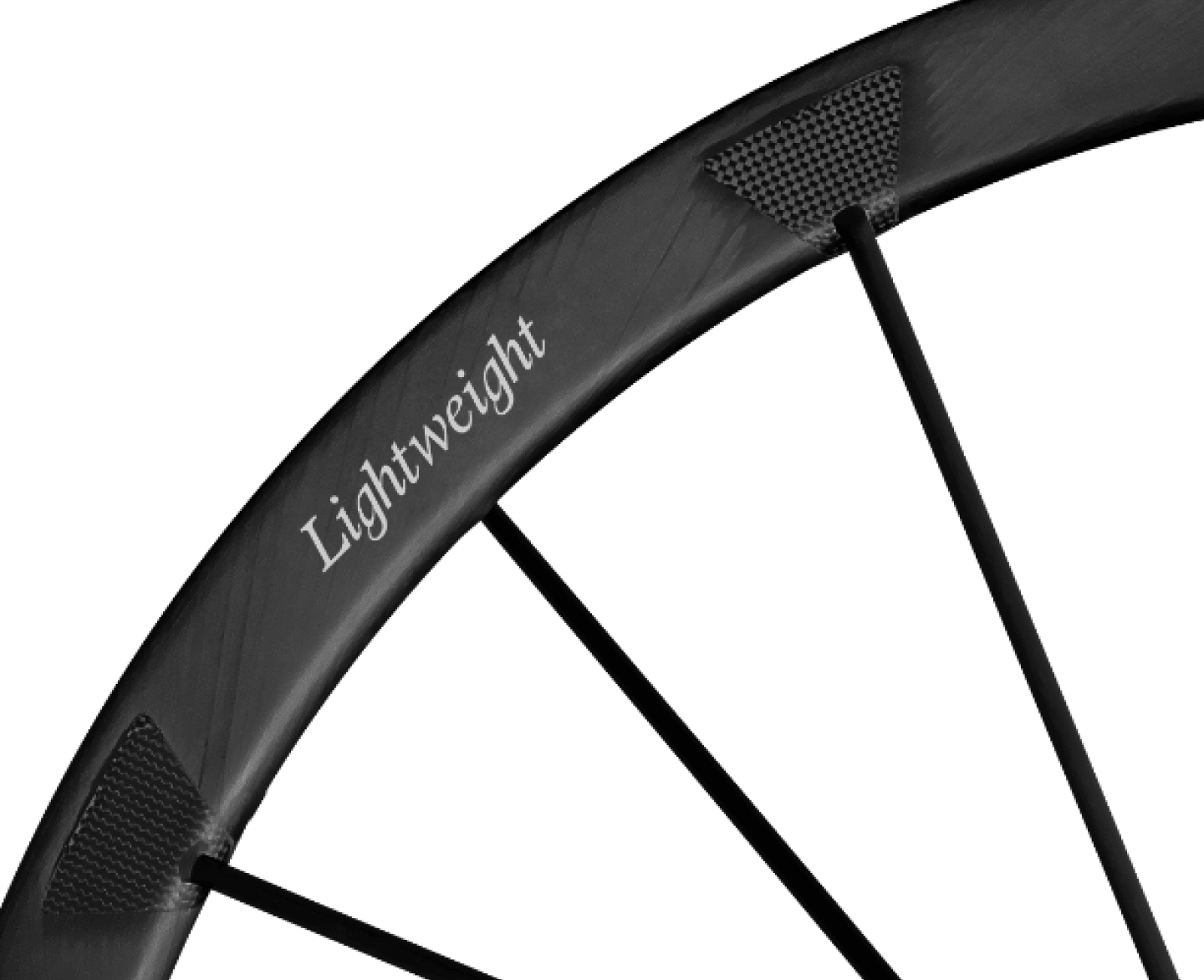

The polygonal Pentagon SL hub gives braking forces a secure path from tire to disc, which keeps long, loose descents calm, and its DT Swiss 240 internals make axle standards easy to adapt. Twenty full-carbon spokes per wheel run from rim to rim with no nipples or threads, and each wheel is built by hand in Friedrichshafen, Germany.
Choose the front wheel, the rear wheel with the matching freehub body, or the complete wheelset. This page is the Standard version with Lightweight silver decals and steel bearings; the Schwarz ED version with black decals and CeramicSpeed bearings is one click away.
Specifications
| Spec | Front | Rear |
|---|---|---|
| Rim depth | 36 mm | 36 mm |
| Rim width | 18.2 mm internal, 24 mm external | 18.2 mm internal, 24 mm external |
| Rim | 700c, hooked, closed rim bed, tubeless ready | 700c, hooked, closed rim bed, tubeless ready |
| Spoke count | 20 full-carbon, rim to rim | 20 full-carbon, rim to rim |
| Hub | Lightweight Pentagon SL, DT Swiss 240 internals | Lightweight Pentagon SL, DT Swiss 240 internals |
| Bearings | Steel | Steel |
| Axle | 12 x 100 mm thru-axle | 12 x 142 mm thru-axle |
| Brake | Centerlock disc, 160 mm rotor | Centerlock disc, 160 or 140 mm rotor |
| Freehub body | None | HG, XDR, Campagnolo or N3W |
| Wheel size | 700c | 700c |
| Wheel weight | 670 g | 760 g |
| Wheelset weight | 1,430 g (±3%) | |
| Tires | Tubeless ready, 25-40 mm | Tubeless ready, 25-40 mm |
| Maximum pressure | 7 bar / 102 psi with 26-28 mm tires, 6 bar / 87 psi with 29-32 mm, 5 bar / 72 psi with 33-40 mm | 7 bar / 102 psi with 26-28 mm tires, 6 bar / 87 psi with 29-32 mm, 5 bar / 72 psi with 33-40 mm |
| Approved use | Road and gravel | Road and gravel |
| Maximum system weight | 120 kg / 265 lb (rider, bike and luggage) | |
| Warranty | 5 years from Lightweight | |
| Made in | Friedrichshafen, Germany | |
