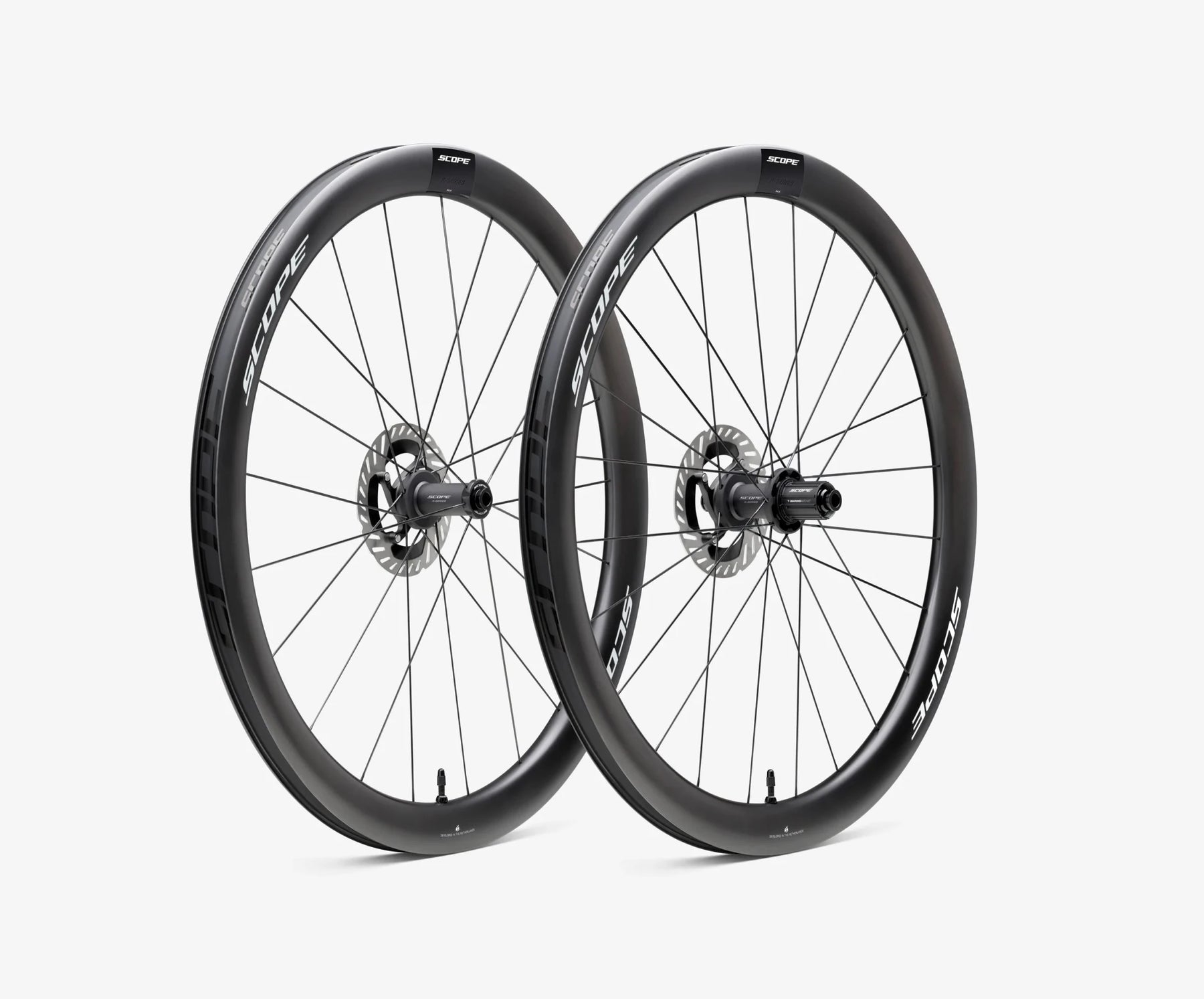

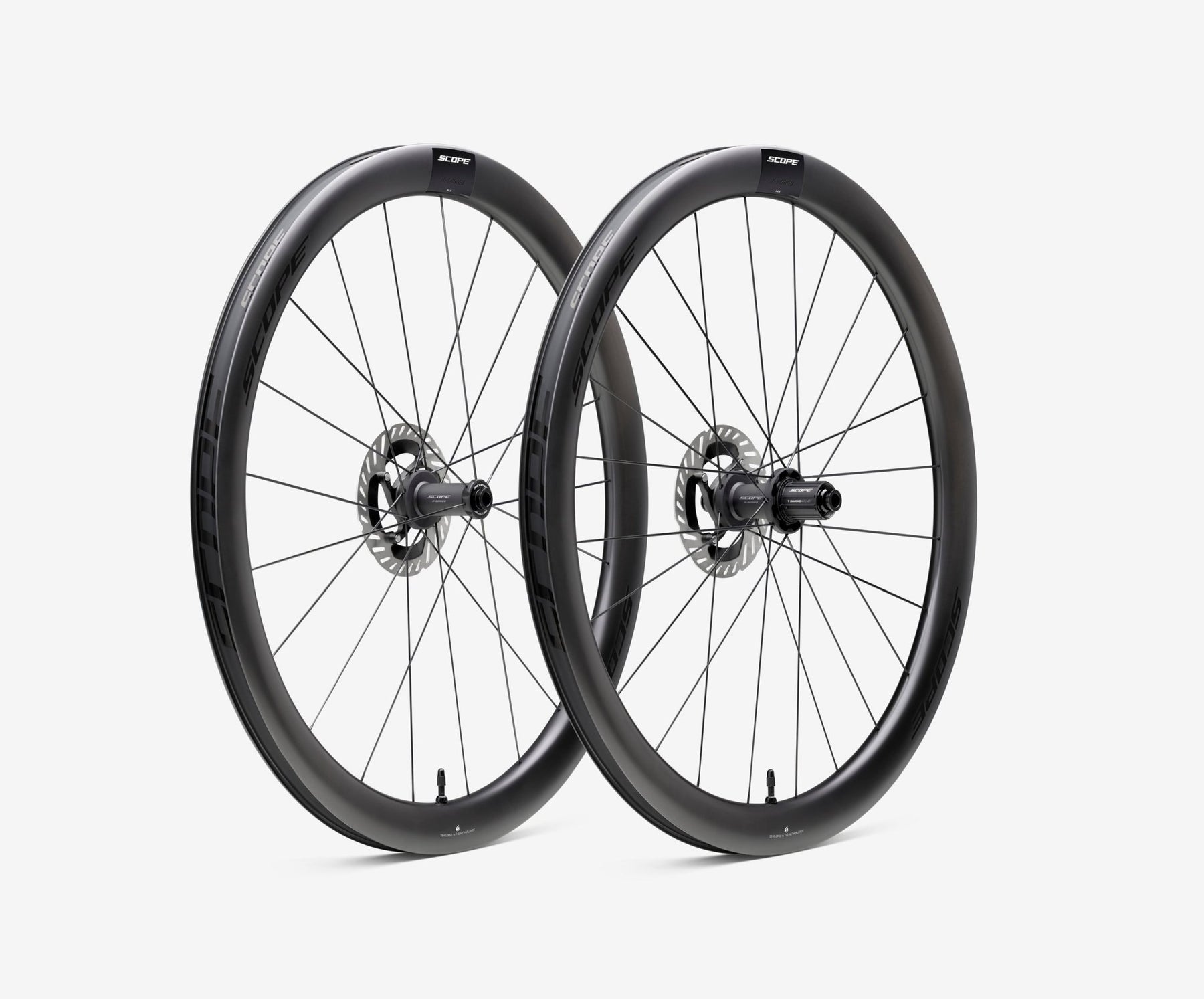

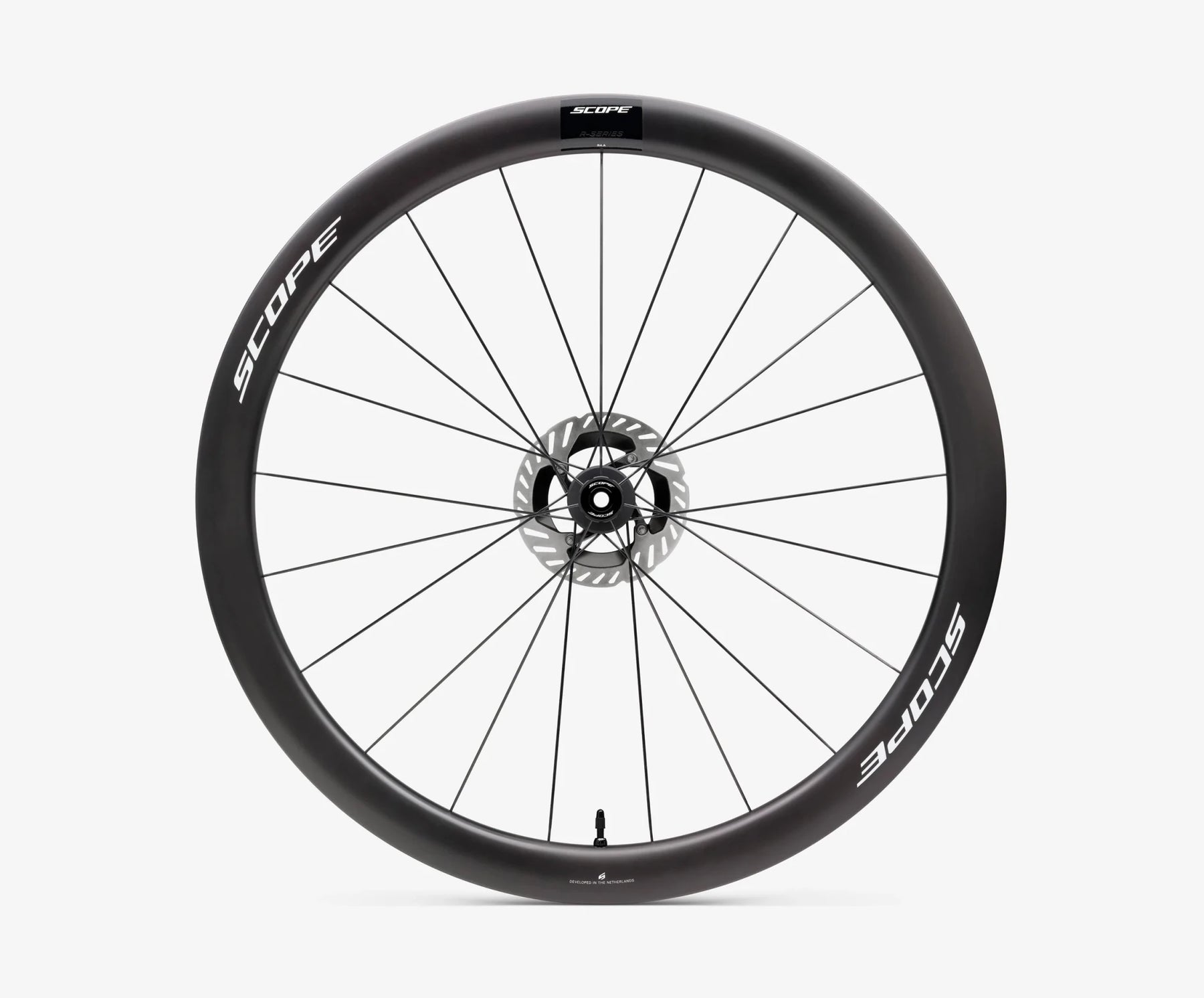

Scope R4.A All-Road Wheelset
- Fast US-based shipping, no tariffs
- Secure checkout
Scope R4.A. All-round and climbing speed on wider tires.

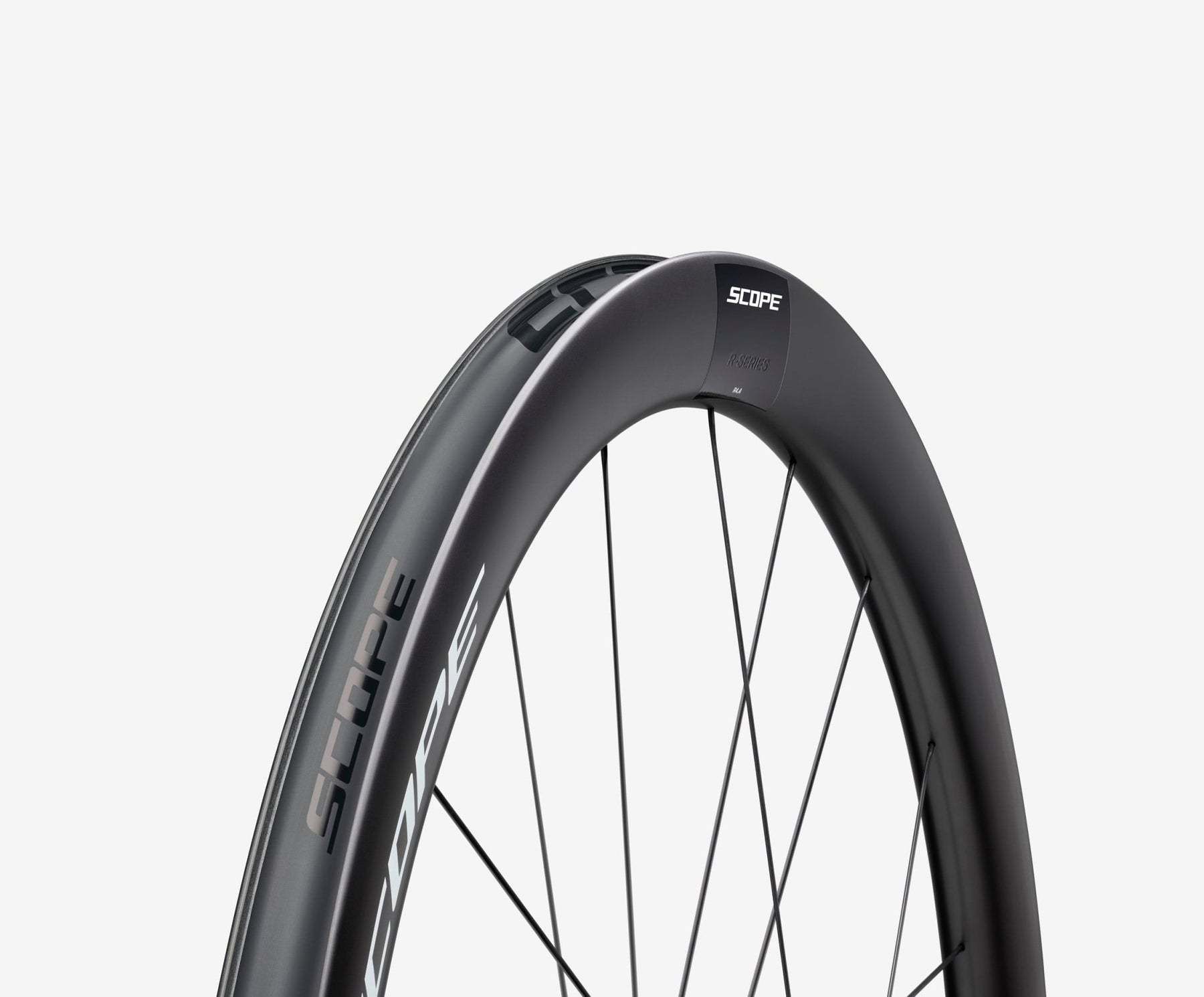

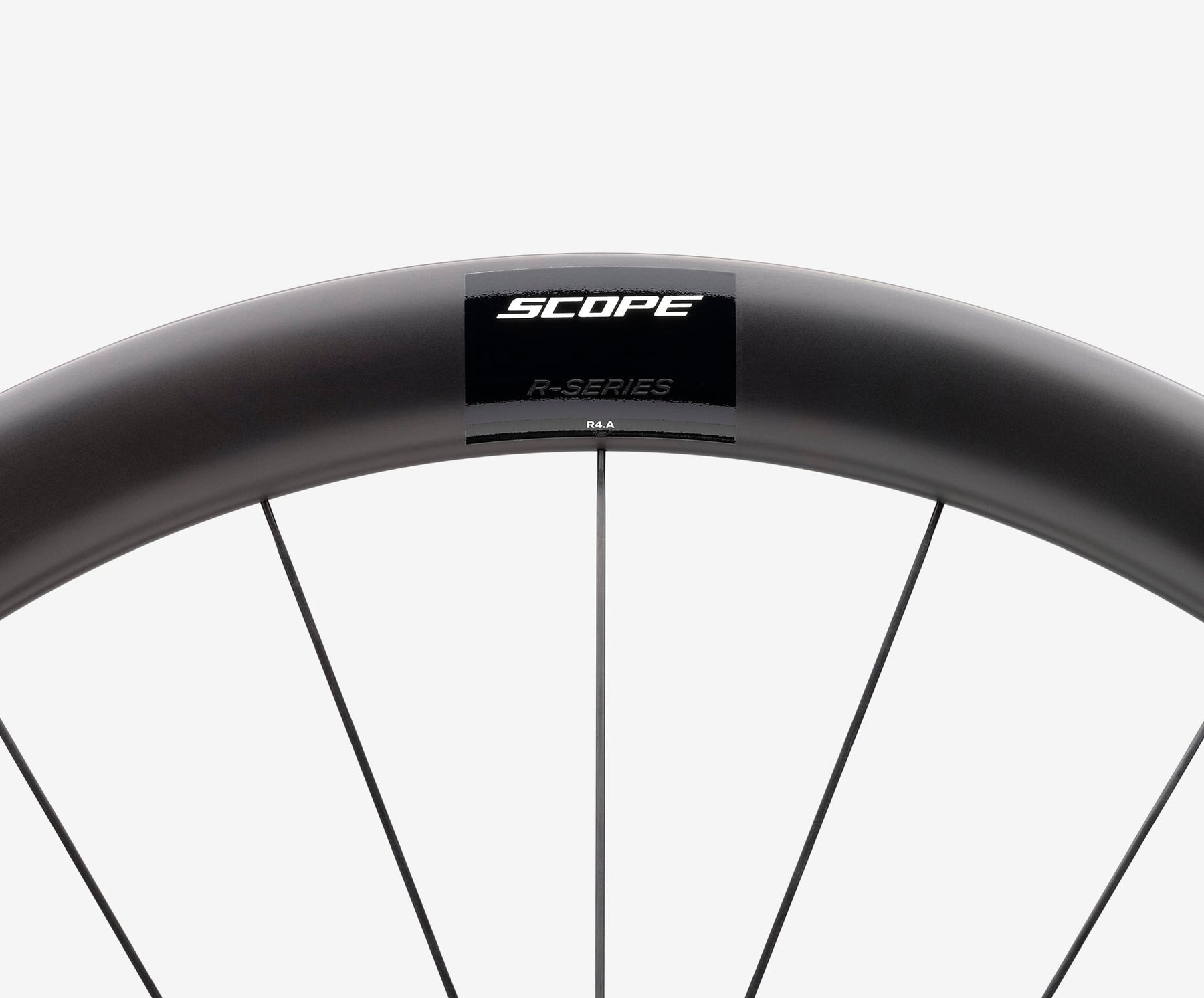

The R4.A uses the 45 mm Artech all-road rim profile, without the Aeroscales, on steel spokes. At 1,398 grams for the set it covers climbing, all-round riding and even gravel, with room for wider tires.
The 25 mm internal hooked rim is optimized for 30 mm clincher and tubeless tires and takes widths from 29 to 71 mm. Lateral stiffness is high and durability is built to last.

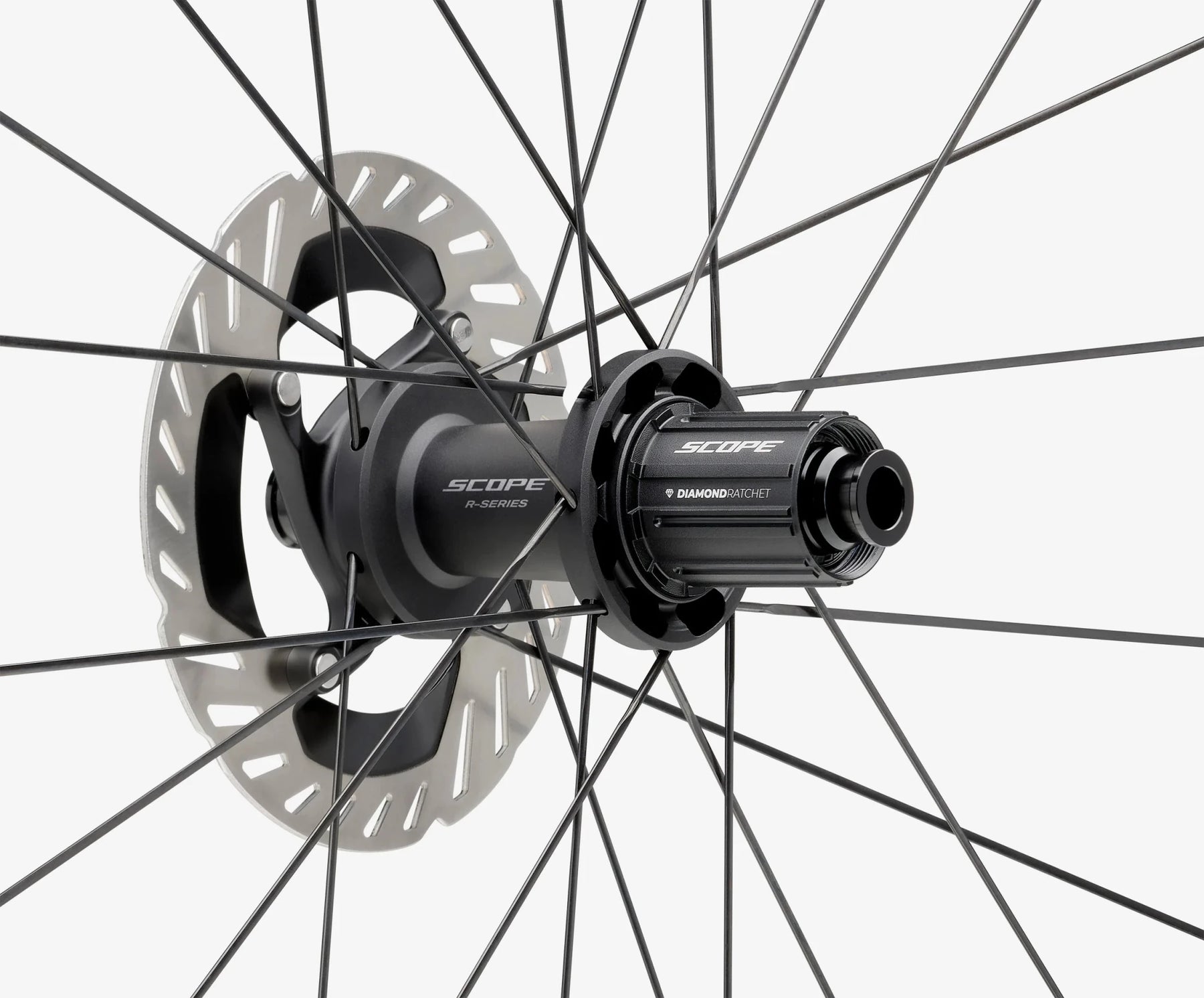

R-Series hubs turn on SKF bearings with a 36T Diamond Ratchet SL, and a mechanical labyrinth seal keeps dirt out for long-term reliability. Each set is laced with 21 front and 24 rear Sapim CX-Ray spokes.
Choose the decal color and the freehub body.
Specifications
| Spec | Front | Rear |
|---|---|---|
| Set weight | 1,398 g (3.08 lb) | |
| Max tire pressure | 8.6 bar / 125 psi | |
| Max rider weight | No limit | |
| Rim depth | 45 mm | 45 mm |
| External rim width | 33.7 mm | 33.7 mm |
| Internal rim width | 25 mm, hooked | 25 mm, hooked |
| Tubeless | Tubeless ready, also runs clincher tires | Tubeless ready, also runs clincher tires |
| Optimum tire width | 30 mm | 30 mm |
| Tire width range | 29 - 71 mm | 29 - 71 mm |
| Hub | Scope R-Series | Scope R-Series |
| Bearings | SKF 2 x 61803 | SKF 3 x 61803, 1 x 61903 |
| Engagement | - | 36T Diamond Ratchet SL |
| Axle | 12 x 100 mm thru-axle | 12 x 142 mm thru-axle |
| Brake interface | Centerlock disc | Centerlock disc |
| Hub seal | Mechanical labyrinth system | Mechanical labyrinth system |
| Spokes | 21 Sapim CX-Ray | 24 Sapim CX-Ray |
In the box
- Pair of tubeless valves, pre-installed
- Tubeless rim tape, pre-installed
