Scope R4.G Gravel Wheelset
- Fast US-based shipping, no tariffs
- Secure checkout

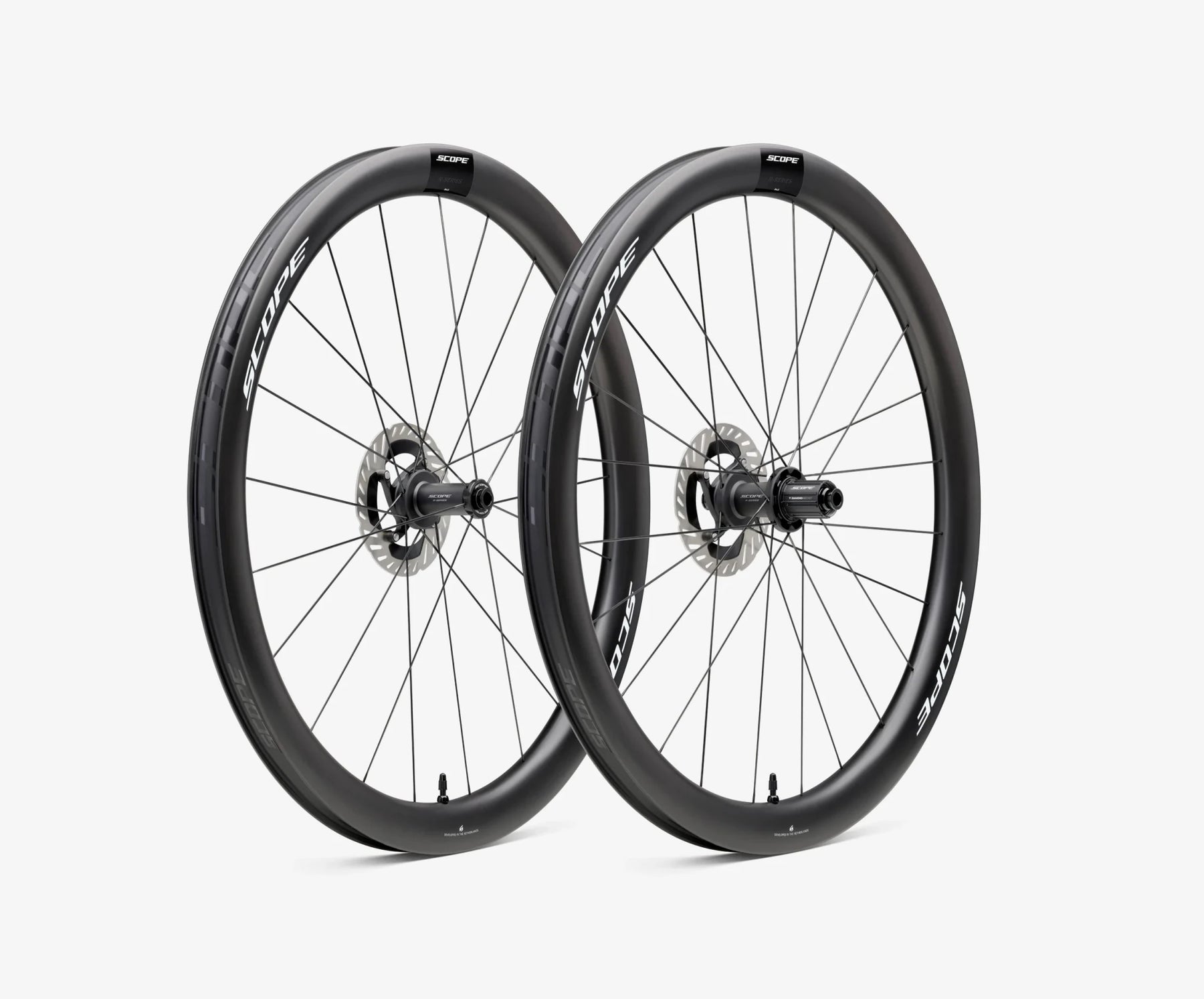

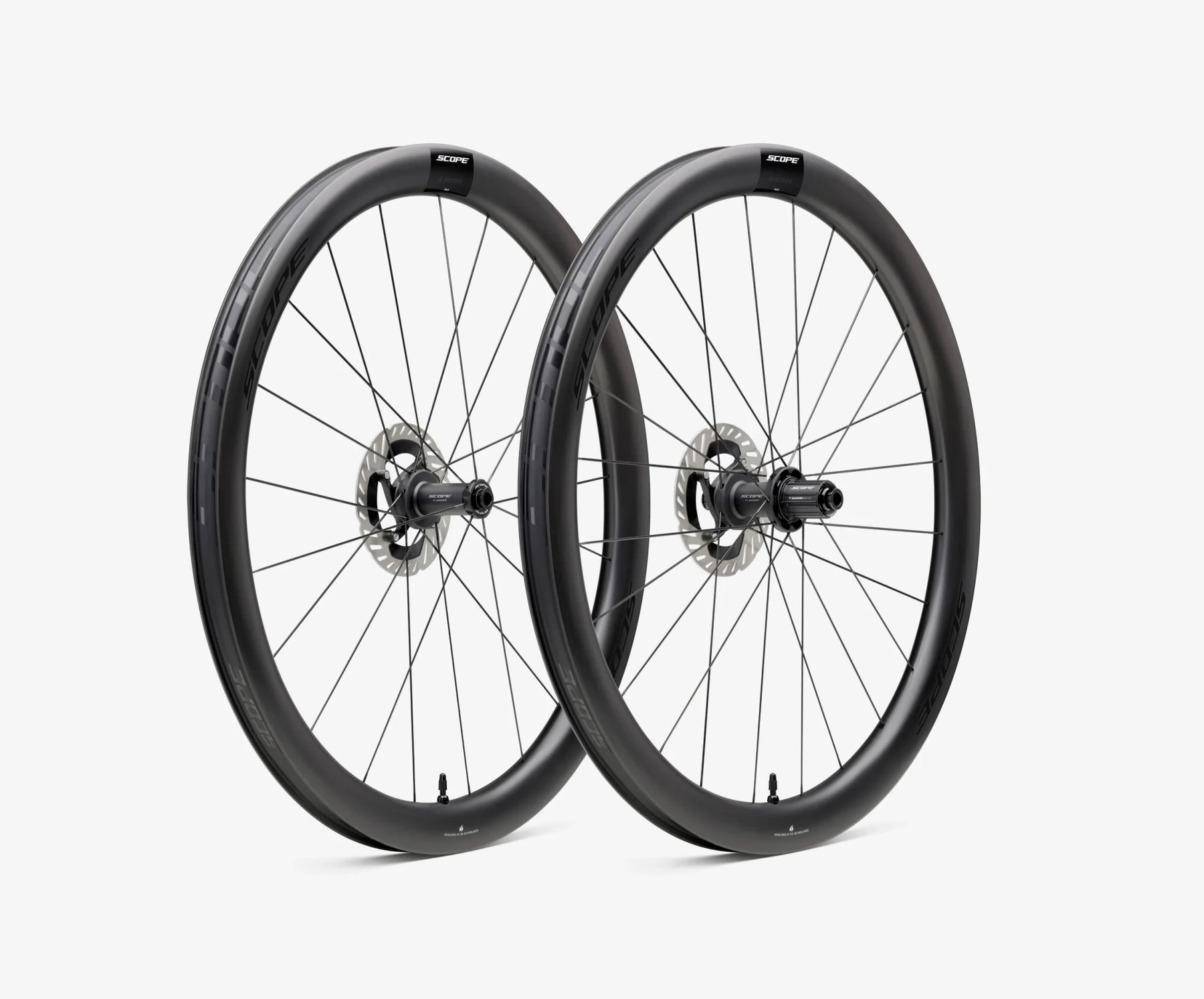

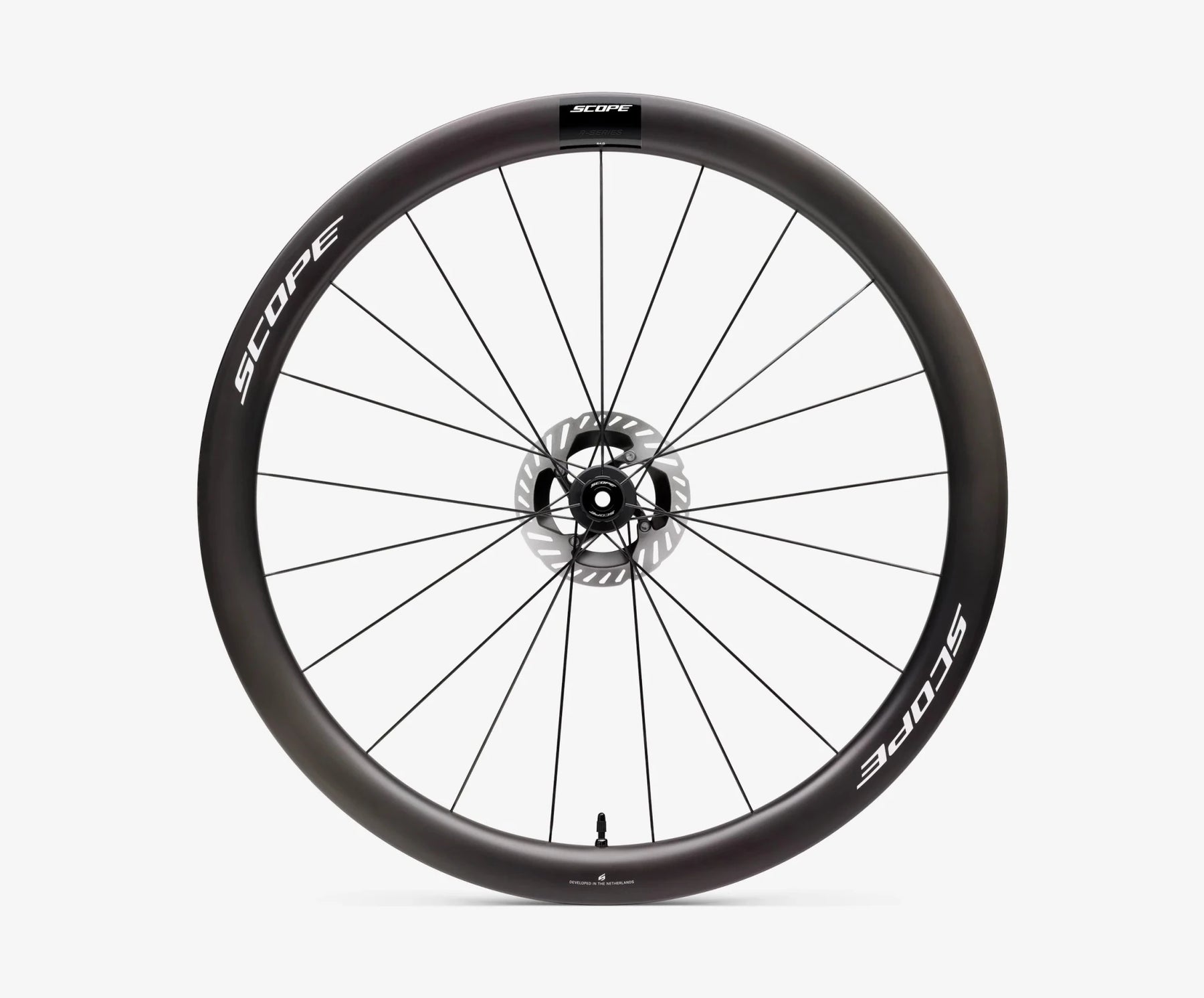

Scope R4.G. A gravel race wheelset from the Artech line.

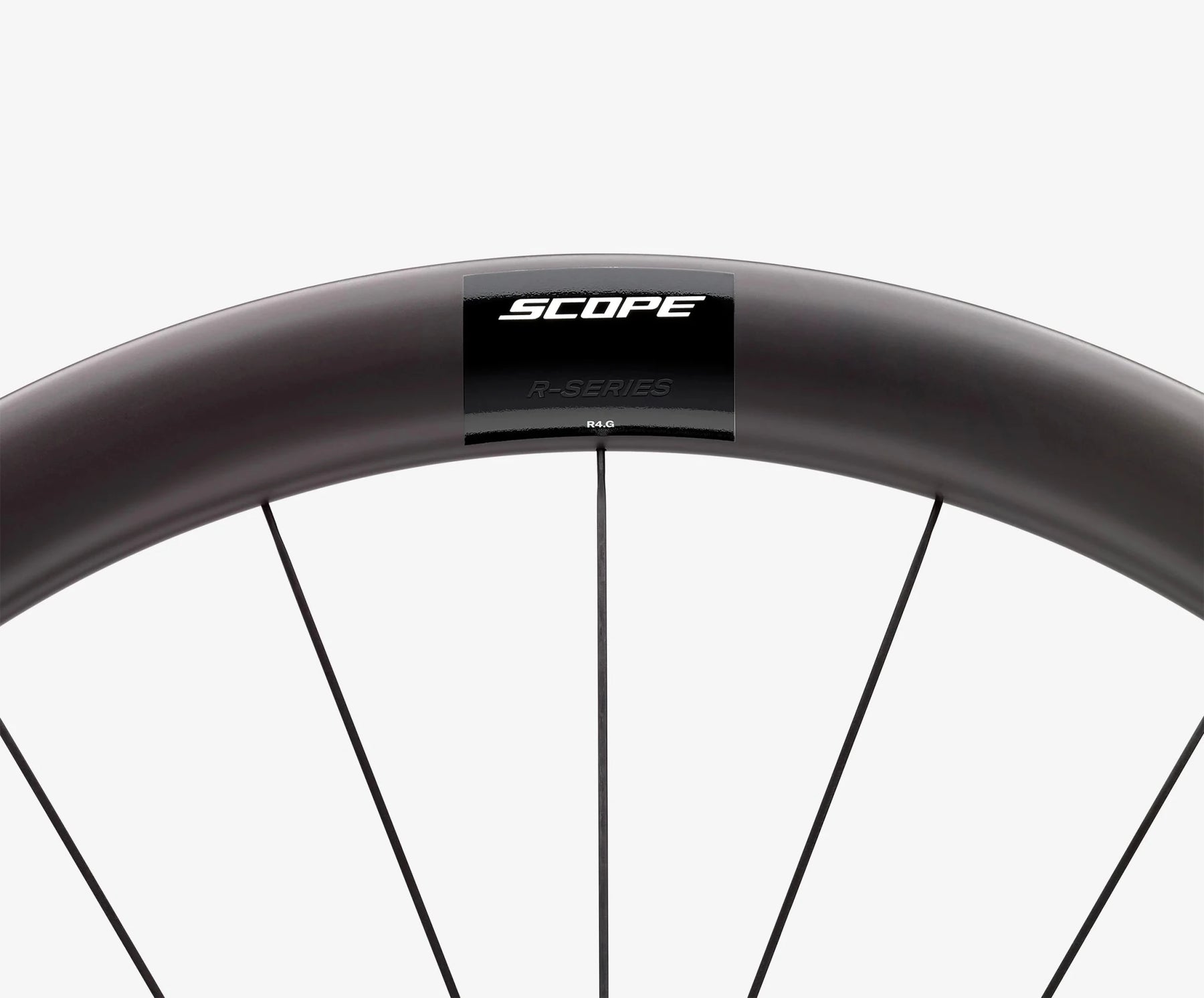

The R4.G is built from the engineering of Scope's Artech series and uses its 45 mm gravel rim profile without the Aeroscales. Laced with steel spokes and weighing 1,439 grams for the set, it is made for gravel racing and long training days off the tarmac.

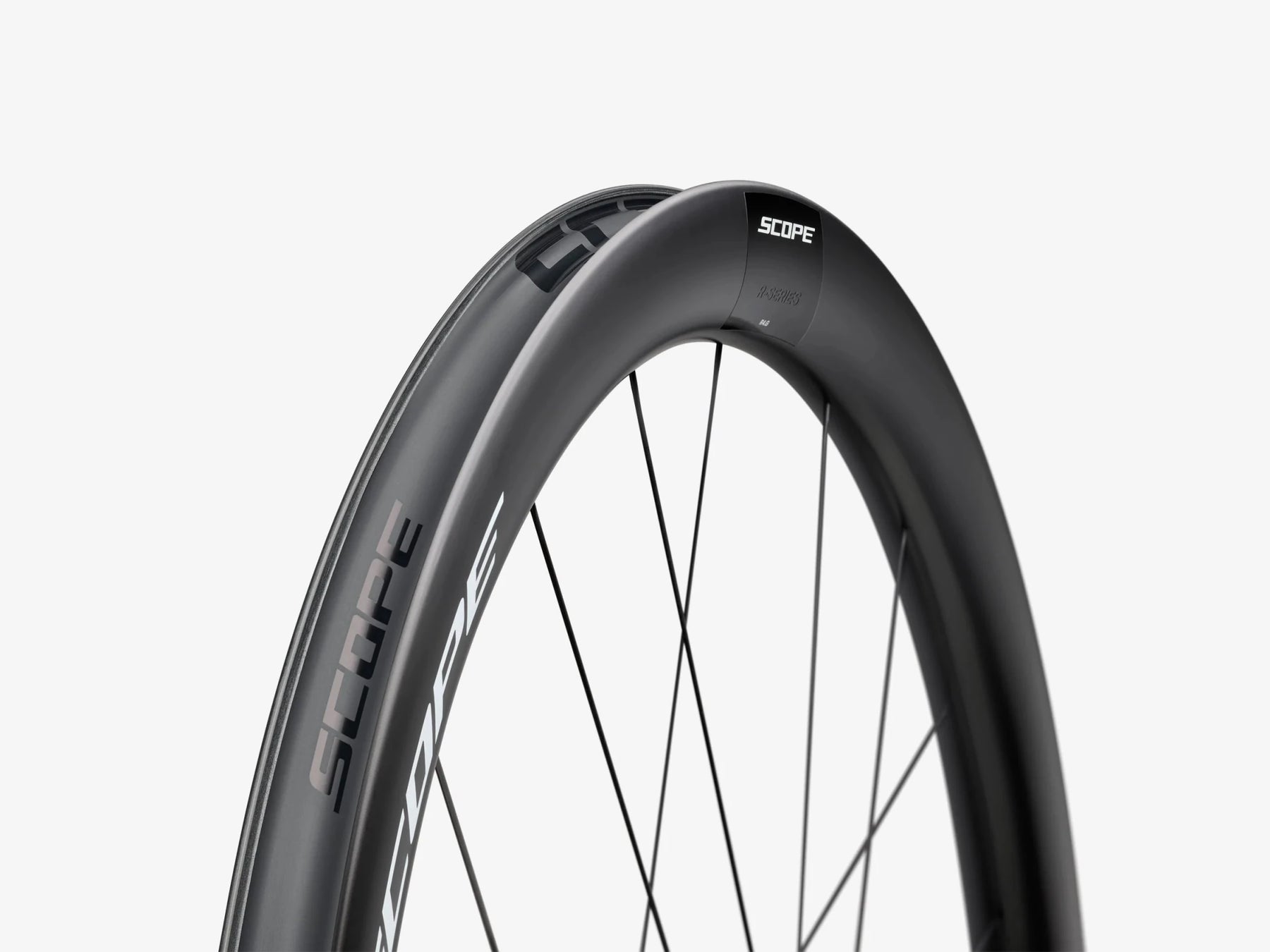

The 28 mm internal hookless rim is optimized for 40 mm tubeless tires and takes widths from 35 to 65 mm. Hookless rims run hookless-approved tubeless tires only, with a maximum pressure of 4.0 bar / 58 psi.

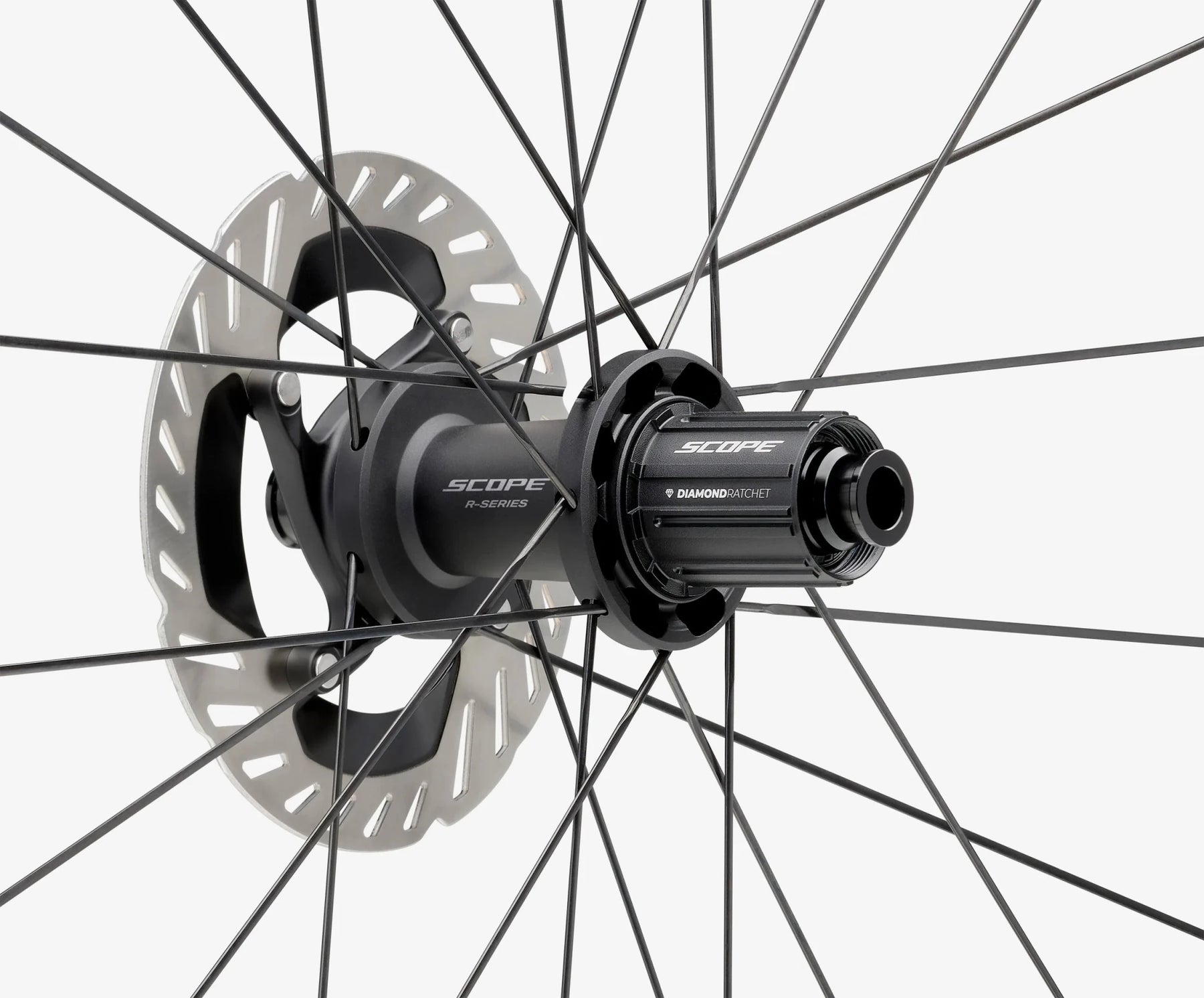

R-Series hubs turn on SKF bearings with a 36T Diamond Ratchet SL, and a mechanical labyrinth seal keeps dirt out for long-term reliability. Each set is laced with 21 front and 24 rear Sapim CX-Ray spokes.
Choose the decal color and the freehub body.
Specifications
| Spec | Front | Rear |
|---|---|---|
| Set weight | 1,439 g (3.17 lb) | |
| Max tire pressure | 4.0 bar / 58 psi | |
| Max rider weight | No limit | |
| Rim depth | 45 mm | 45 mm |
| External rim width | 38 mm | 38 mm |
| Internal rim width | 28 mm, hookless | 28 mm, hookless |
| Tubeless | Tubeless only, hookless-approved tires | Tubeless only, hookless-approved tires |
| Optimum tire width | 40 mm | 40 mm |
| Tire width range | 35 - 65 mm | 35 - 65 mm |
| Hub | Scope R-Series | Scope R-Series |
| Bearings | SKF 2 x 61803 | SKF 3 x 61803, 1 x 61903 |
| Engagement | - | 36T Diamond Ratchet SL |
| Axle | 12 x 100 mm thru-axle | 12 x 142 mm thru-axle |
| Brake interface | Centerlock disc | Centerlock disc |
| Hub seal | Mechanical labyrinth system | Mechanical labyrinth system |
| Spokes | 21 Sapim CX-Ray | 24 Sapim CX-Ray |
In the box
- Pair of tubeless valves, pre-installed
- Tubeless rim tape, pre-installed
