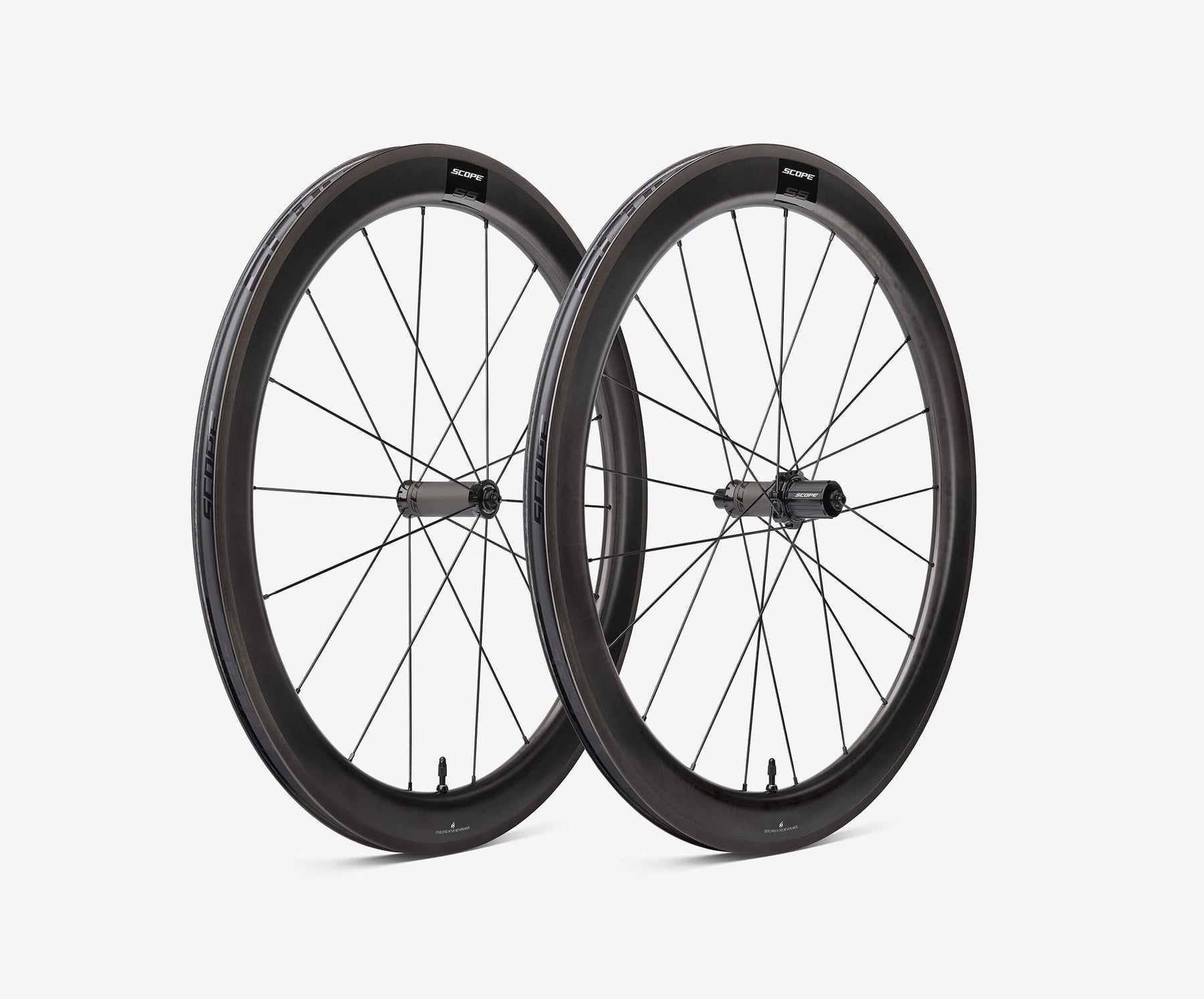

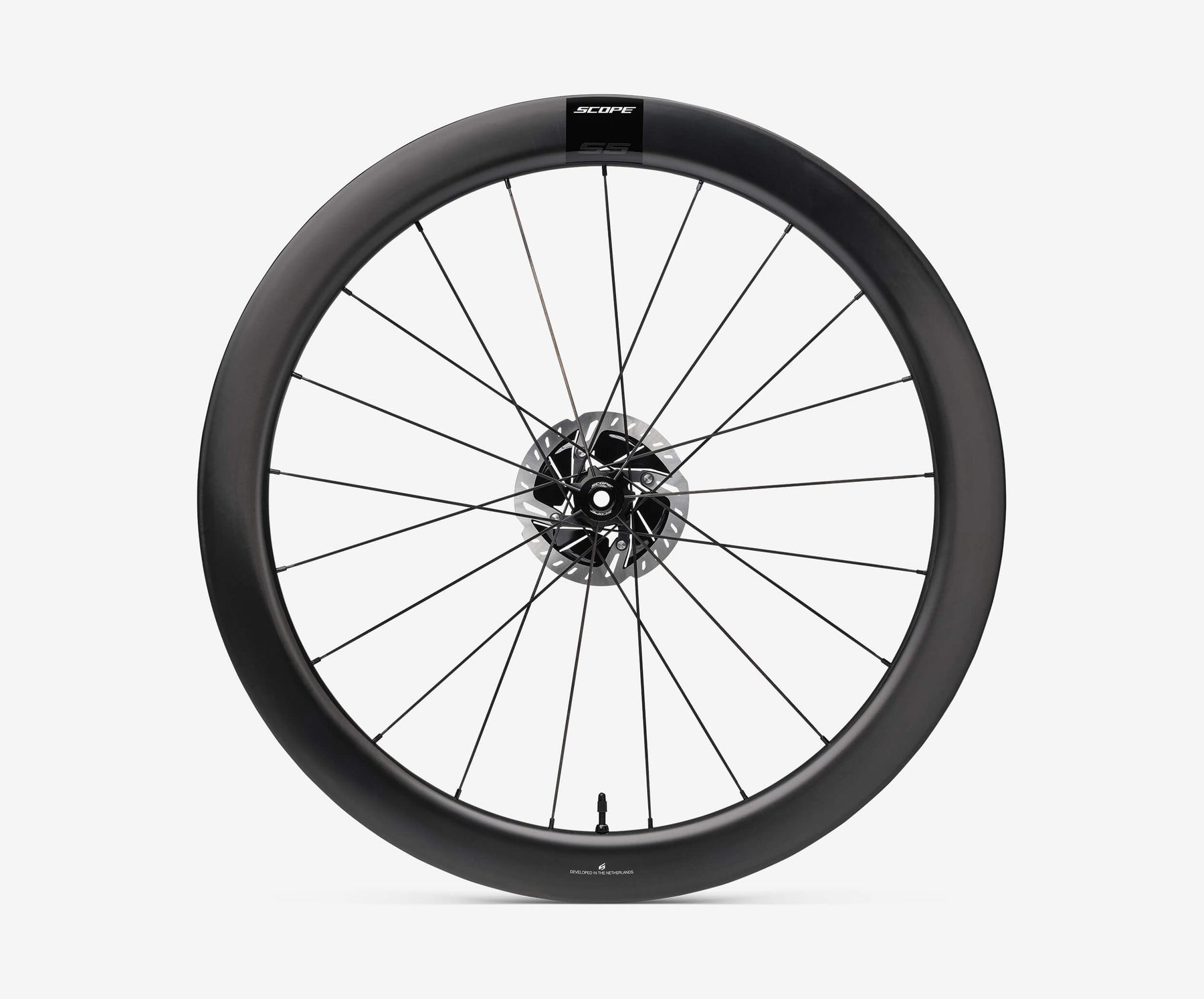

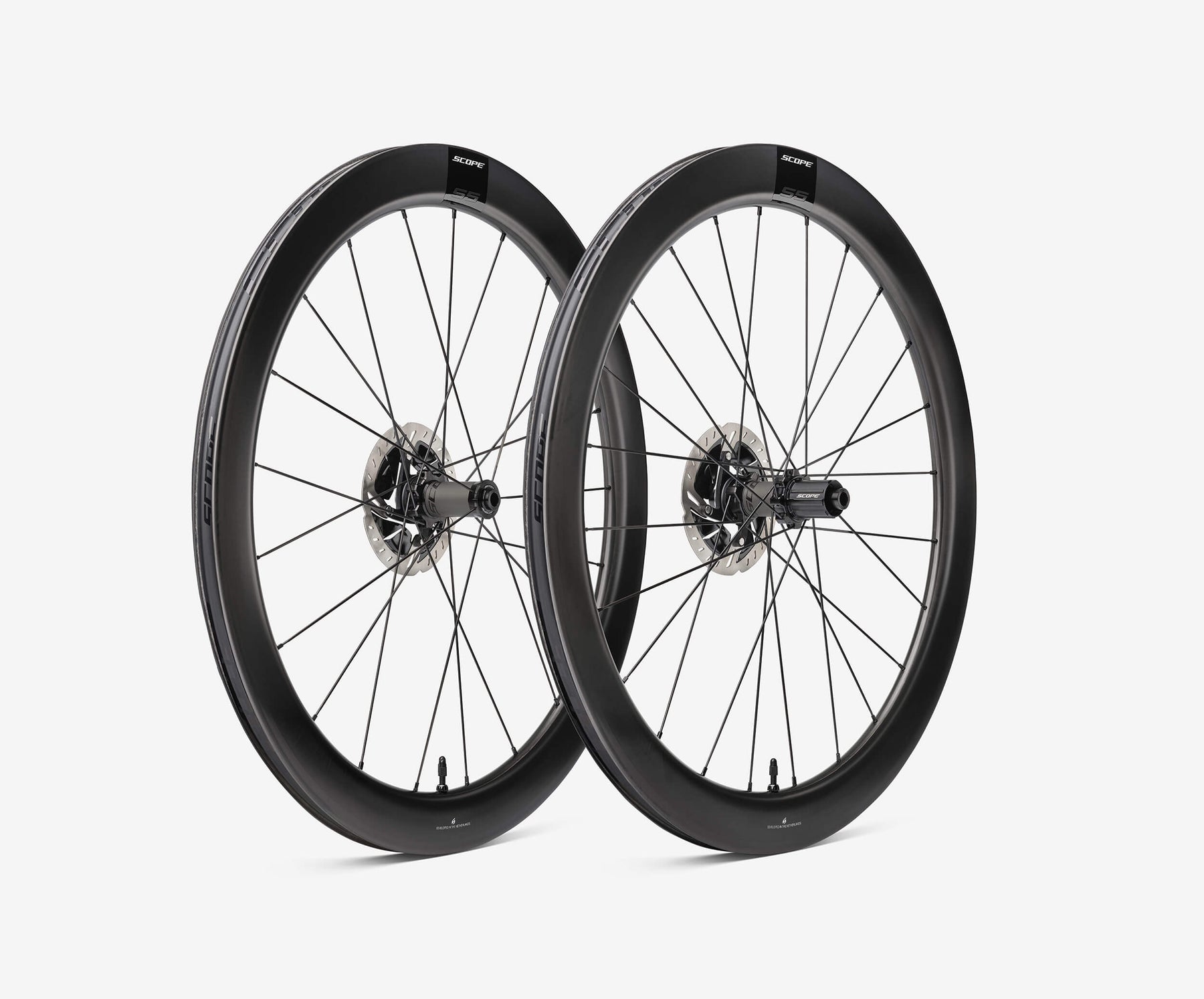

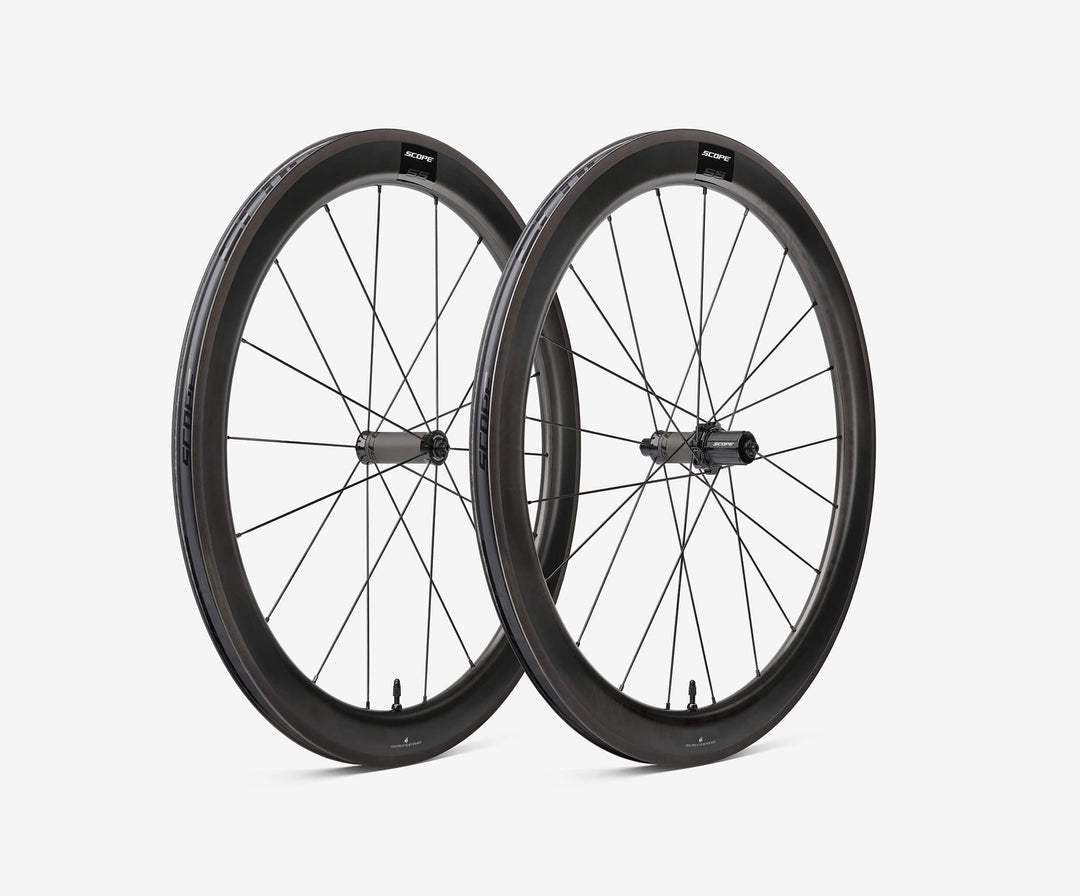

Scope S5. A 55 mm aero wheelset, disc or rim brake.
The Sport Series carries proven technology from Scope's previous generation of carbon wheels into a new range. Like the Race Series, every wheel is hand-built to the same quality standard and developed in the Netherlands for a balance of aerodynamics, stiffness and durability.

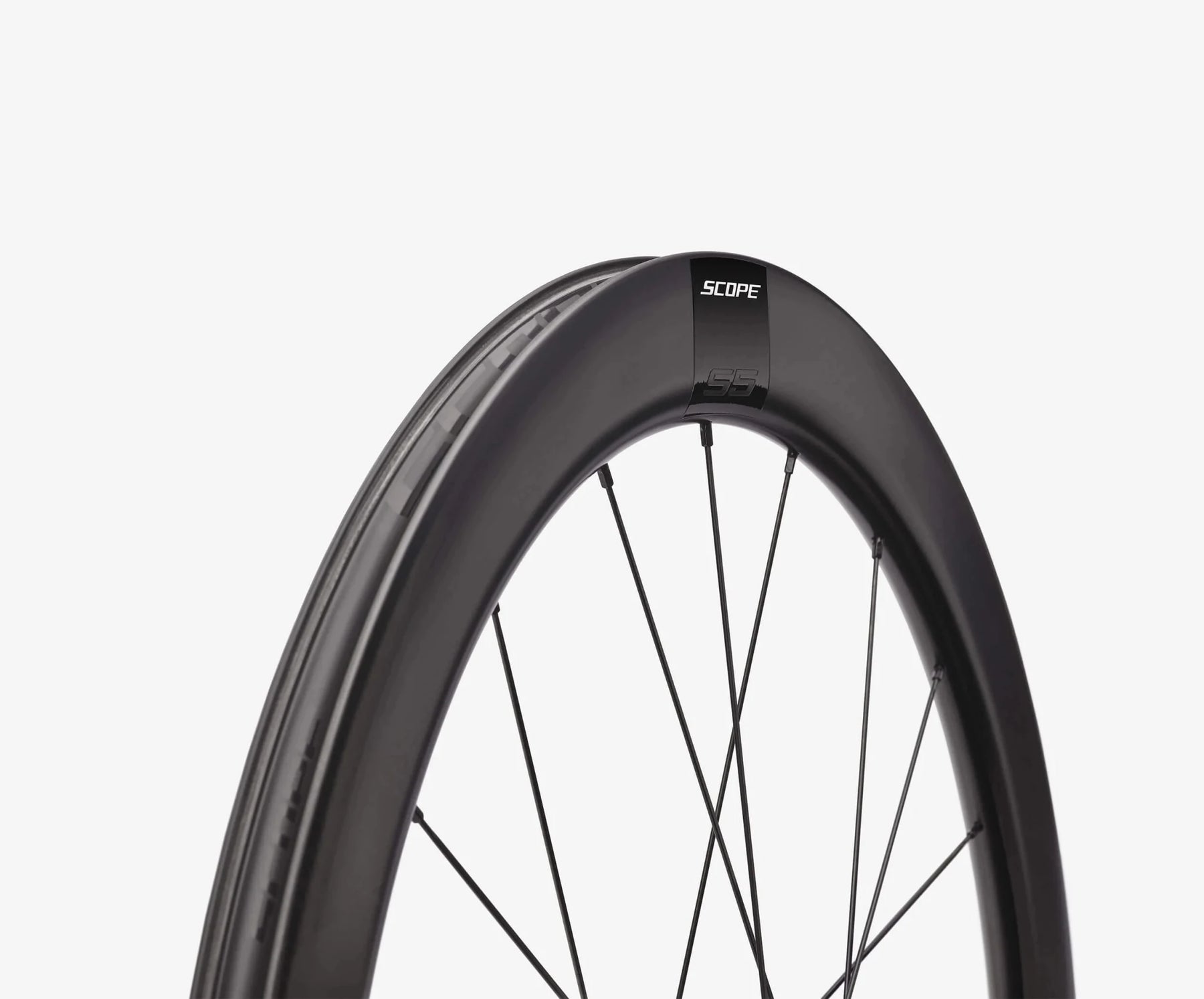

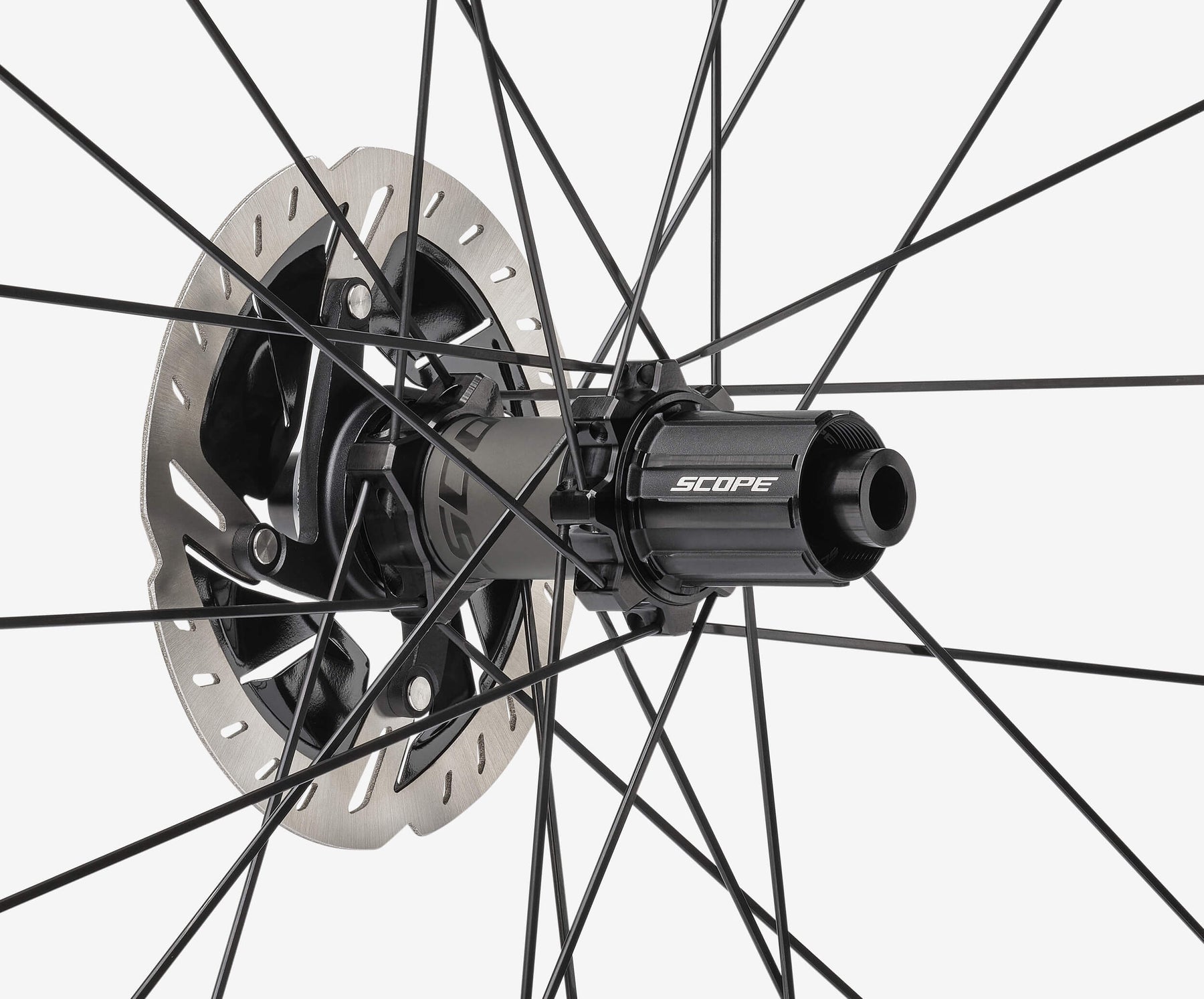

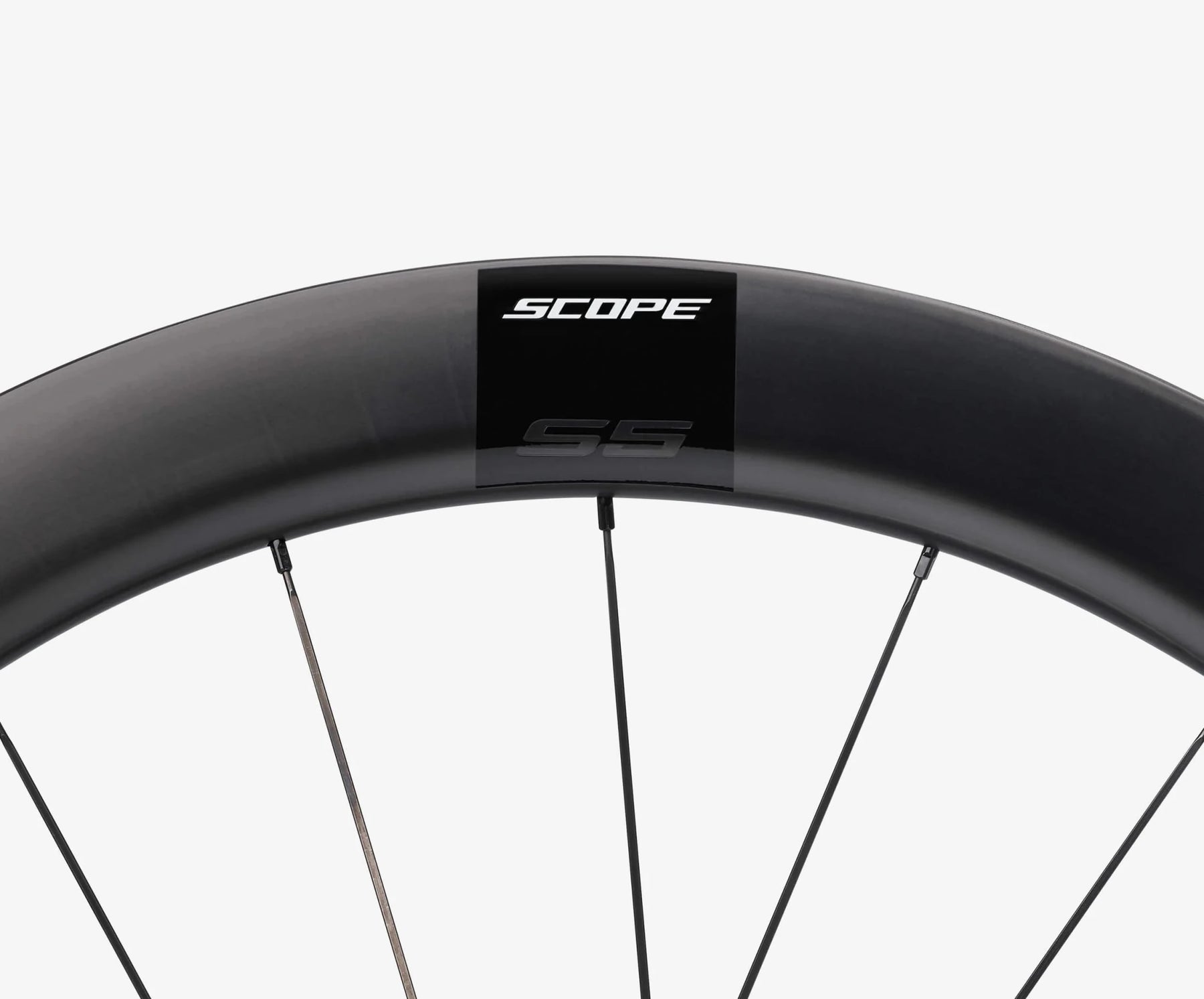

The S5 uses a 55 mm deep, 26 mm wide tubeless-ready rim with a 19 mm internal width, best with 25 mm tires and compatible from 22 to 57 mm. It comes in disc brake and rim brake versions on Scope S-Series hubs with 3-pawl engagement and custom SKF bearings.
Choose disc brake or rim brake and the freehub body.
Specifications
| Spec | Front | Rear |
|---|---|---|
| Set weight | Disc brake 1,723 g (3.80 lb); rim brake 1,629 g (3.59 lb) | |
| Max rider weight | Disc brake no limit; rim brake 95 kg (209 lb) | |
| Recommended tire width | Road 25 - 30 mm; gravel 35 - 57 mm | |
| Rim depth | 55 mm | 55 mm |
| External rim width | 26 mm | 26 mm |
| Internal rim width | 19 mm | 19 mm |
| Tubeless | Tubeless ready, also runs clincher tires with tubes | Tubeless ready, also runs clincher tires with tubes |
| Optimum tire width | 25 mm | 25 mm |
| Tire width range | 22 - 57 mm | 22 - 57 mm |
| Hub | Scope S-Series | Scope S-Series |
| Engagement | - | 3-pawl |
| Bearings, disc brake | Custom 61802 + 61902 | Custom 2 x 61902 |
| Bearings, rim brake | Custom 2 x 61802 | Custom 61802 + 61902 |
| Axle, disc brake | 12 x 100 mm thru-axle | 12 x 142 mm thru-axle |
| Axle, rim brake | Quick release, 100 mm | Quick release, 130 mm |
| Brake interface, disc brake | Centerlock disc | Centerlock disc |
In the box
- Pair of tubeless valves, pre-installed
- Tubeless rim tape, pre-installed
- Pair of Scope quick releases (rim brake version)
- Set of Scope carbon brake pads (rim brake version)
