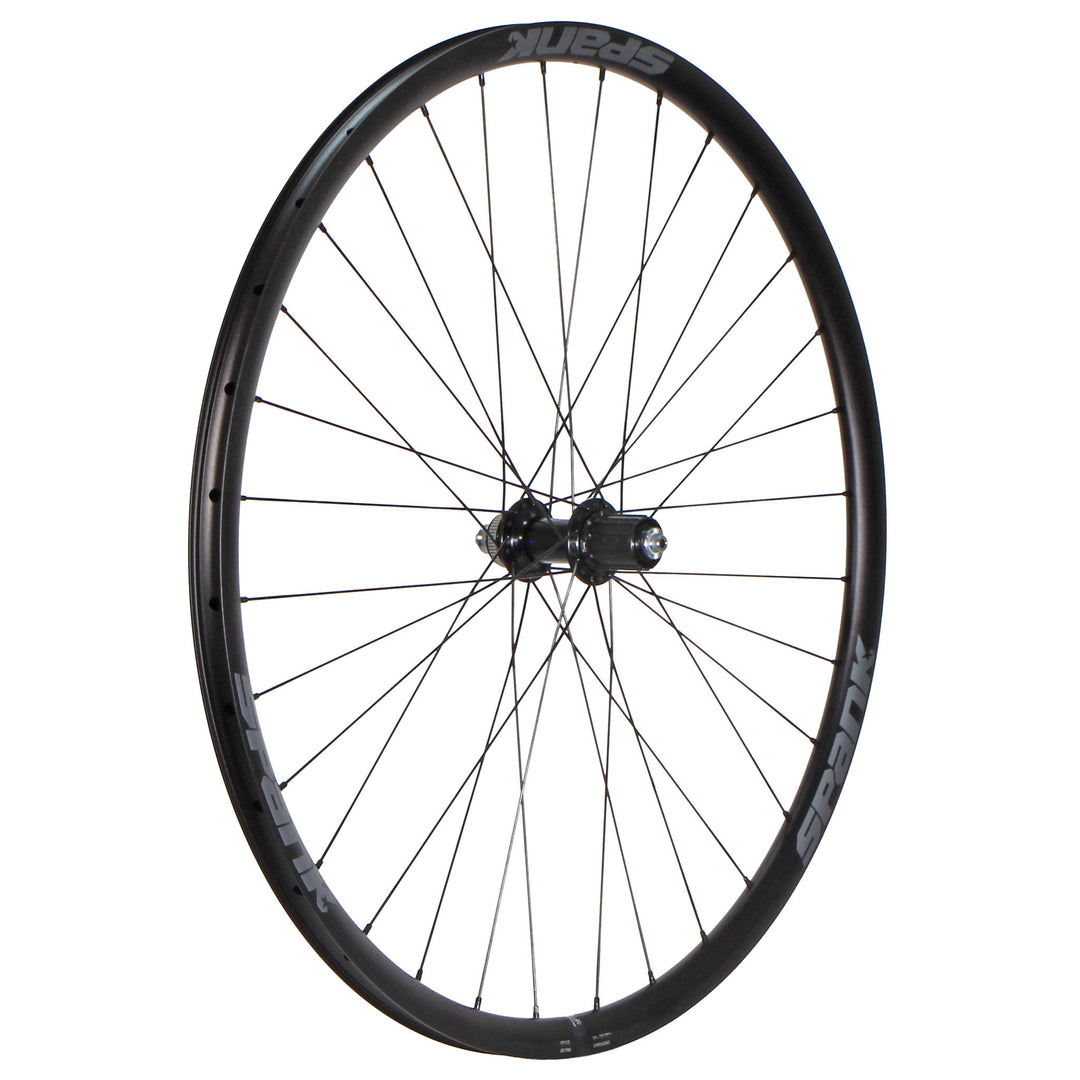

Wheel Factory Spank Wing22 700c Shimano XT QRx135 HG CL
Size chart
- Fast US-based shipping, no tariffs
- Secure checkout
- Wheel Factory hand built wheels
- Spank Wing 22 rims are disc specific, tubeless ready, clincher rim, optimized for mixed on/off road use
- Moderate 22mm inner width, provides exceptional versatility in tire pairing, from wide road slicks to gravel knobbies
- Deep well 24.5mm profile height, enhances aero properties, as well as stiffness and torsional rigidity
- Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures
- Dynamal alloy is shot peen finish, heightening durability and fatigue life
- Shimano XT M8000 series Center Lock hubs
- Forged aluminum shell with HG 8-11 speed steel freehub body
- Black double butted spokes and brass nipples
- Built with DT Swiss Competition double butted spokes (2.0/1.8/2.0) and brass DT Swiss Squorx nipples
- Hand laced and trued in the USA
| Model | Wing 22/XT M8000 |
| Size | 700c |
| Front/Rear | Rear (HG 8-11sp) |
| Axle/Spacing (mm) | QRx135 |
| Hub | XT M8000 |
| Hole | 32 |
| Brake | Center Lock |
| Rim | Wing 22 |
| Internal W | 22mm |
| Depth | 24.5mm |
| Material | Aluminum |
| Type | Tubeless |
| Color (H/S/R) | Black |
| Weight | 990g |
| Hub Width | Qrx135 HG |
