Lightweight Meilenstein ART. Four years in the making.

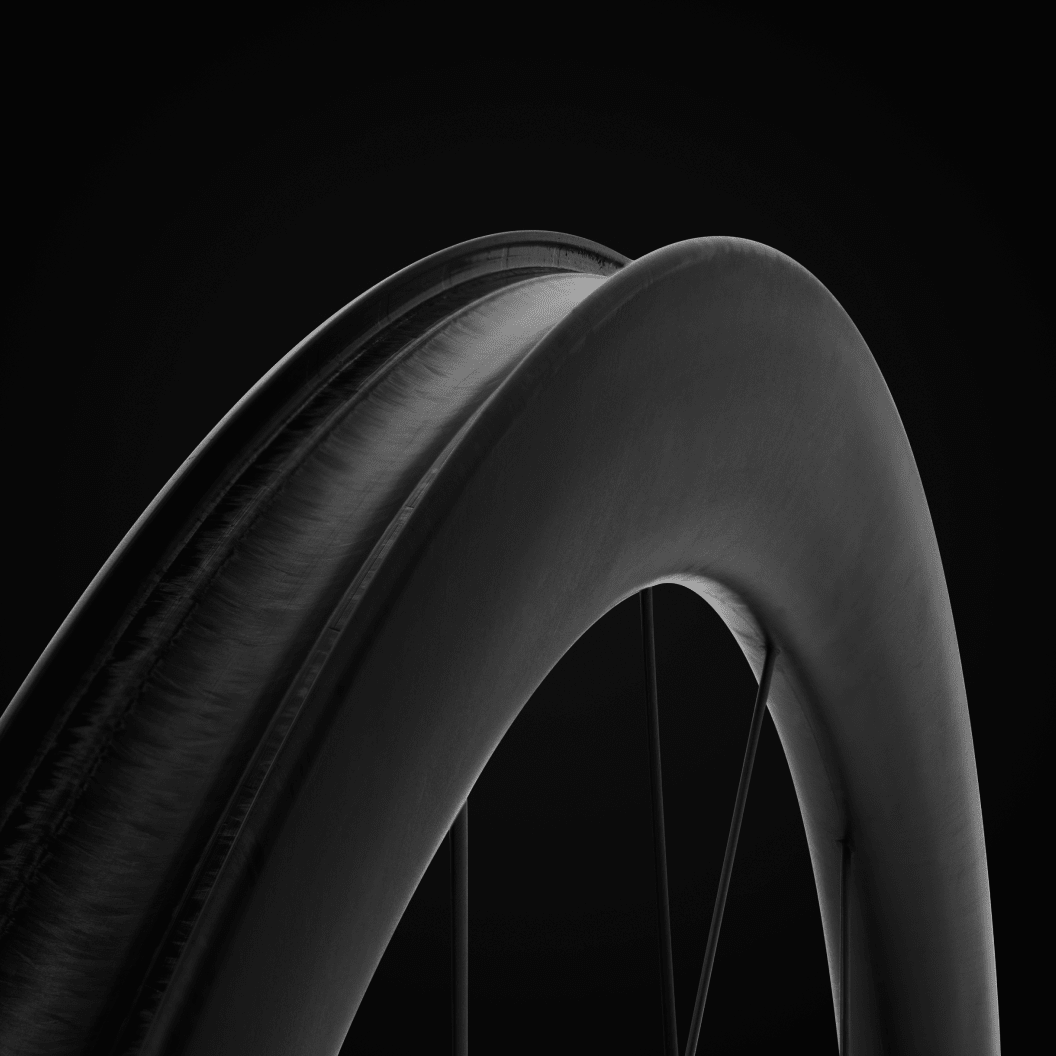

The Meilenstein ART is Lightweight's most advanced wheelset. Its rim is built on Alpha Rib Technology, a patented network of carbon ribs inside the rim cavity that raises lateral stiffness while saving weight. The 45 mm rim has a 22.9 mm internal width, is shaped for 28 mm and wider tubeless tires, and the set weighs 1,190 g.

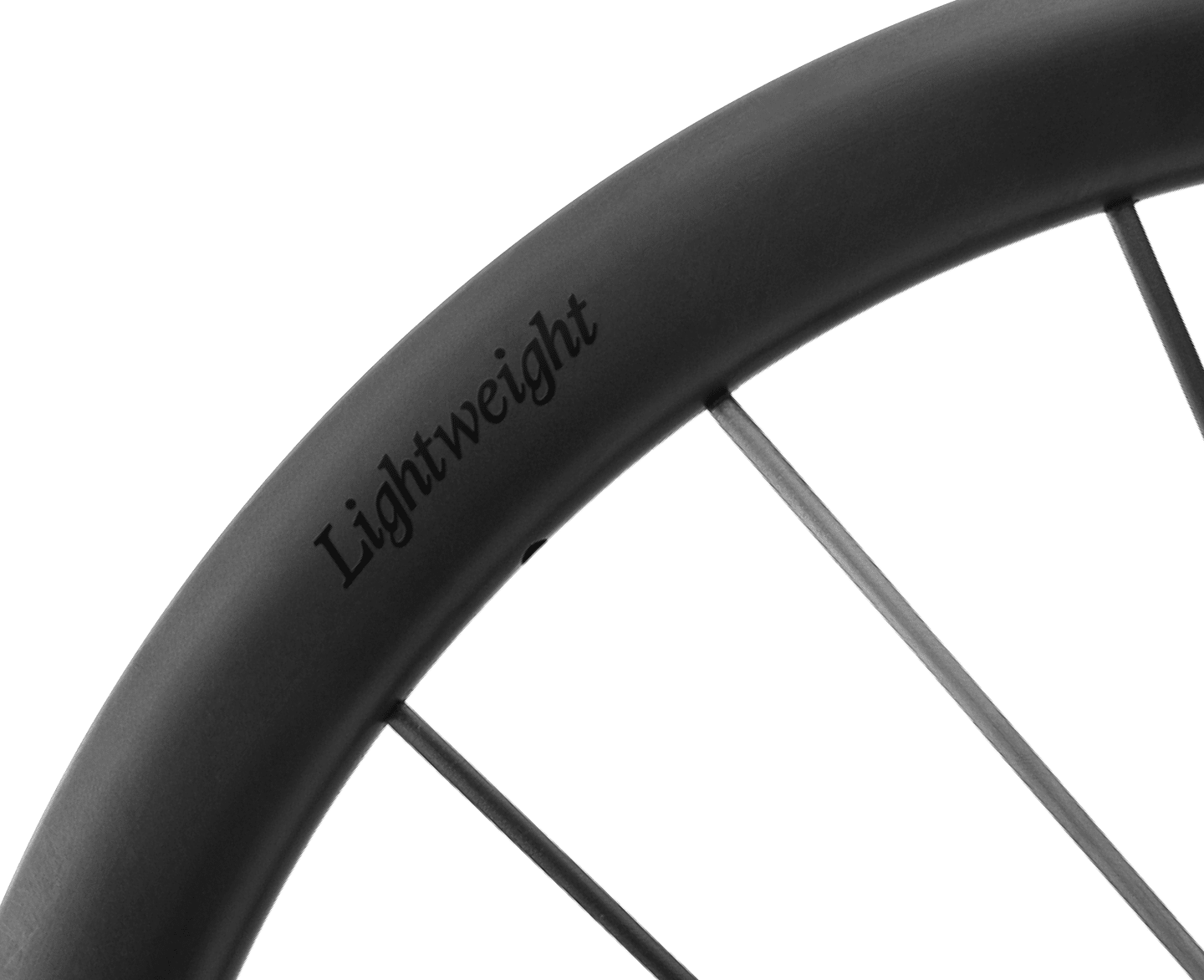

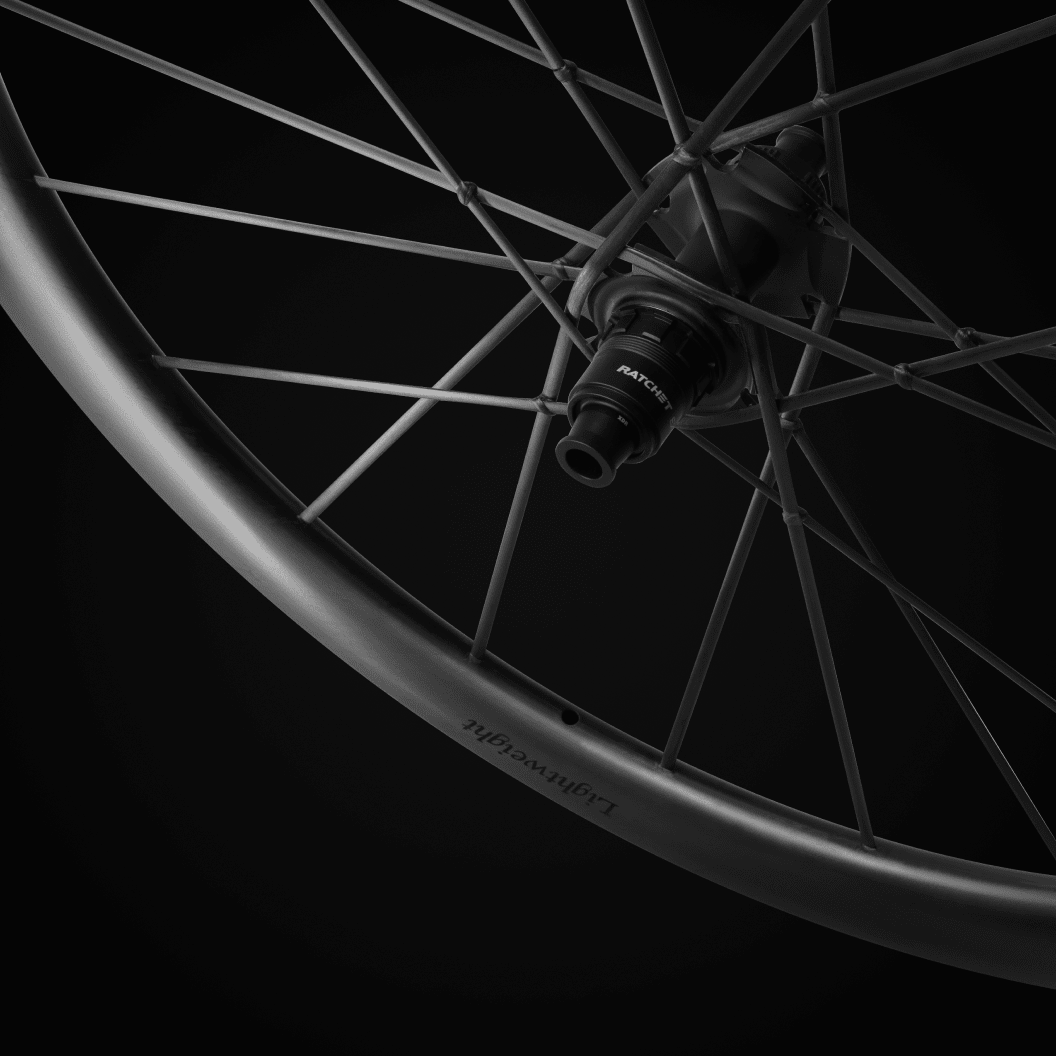

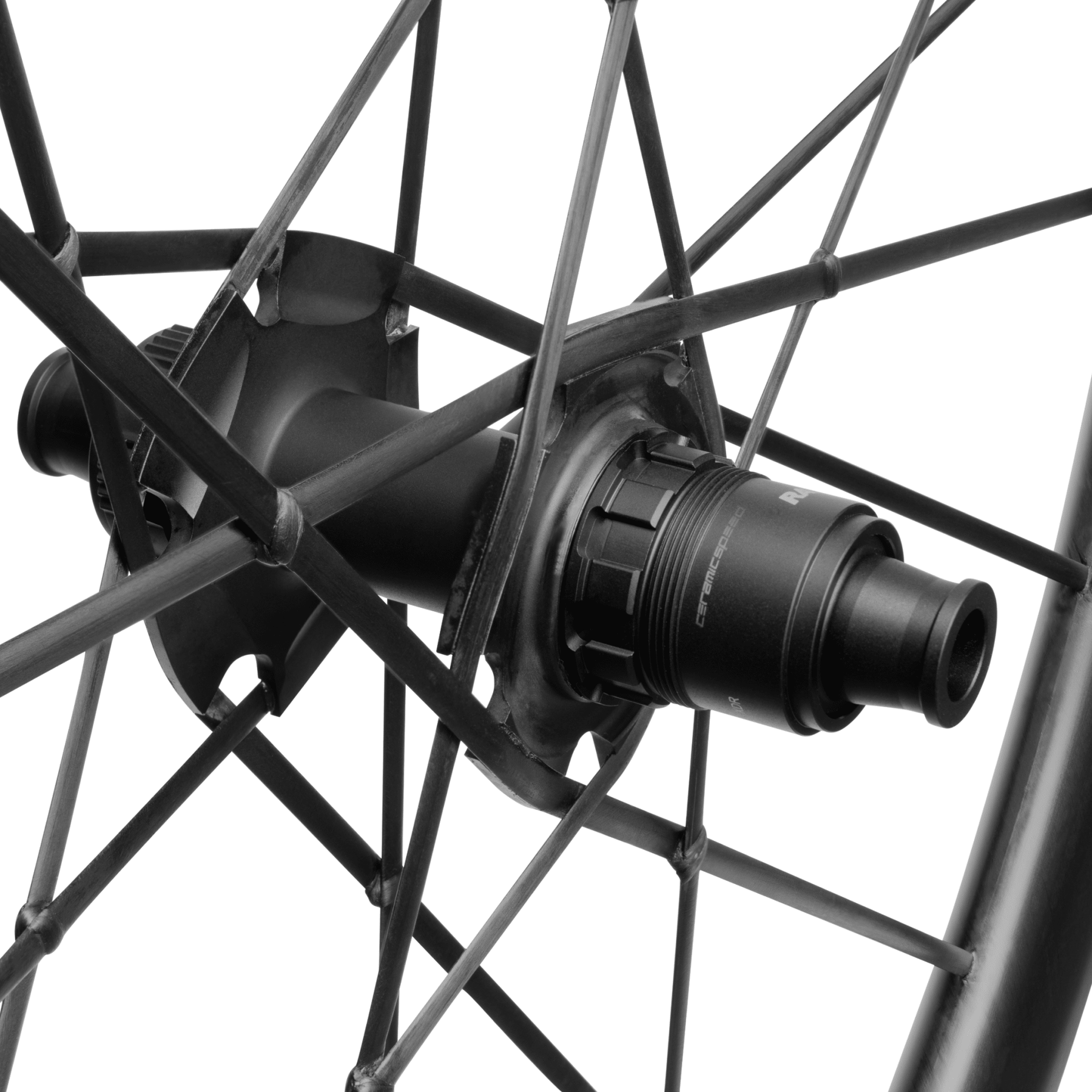

Each wheel has 20 full-carbon spokes that run in one continuous line from rim to rim, bonded directly into the internal ribs with no bends, nipples or threads. The Penta-Fly hub uses oversized flanges around DT Swiss 180 EXP internals, and every wheel is finished by hand in Friedrichshafen, Germany, in a smooth carbon finish that is new to the Lightweight range.

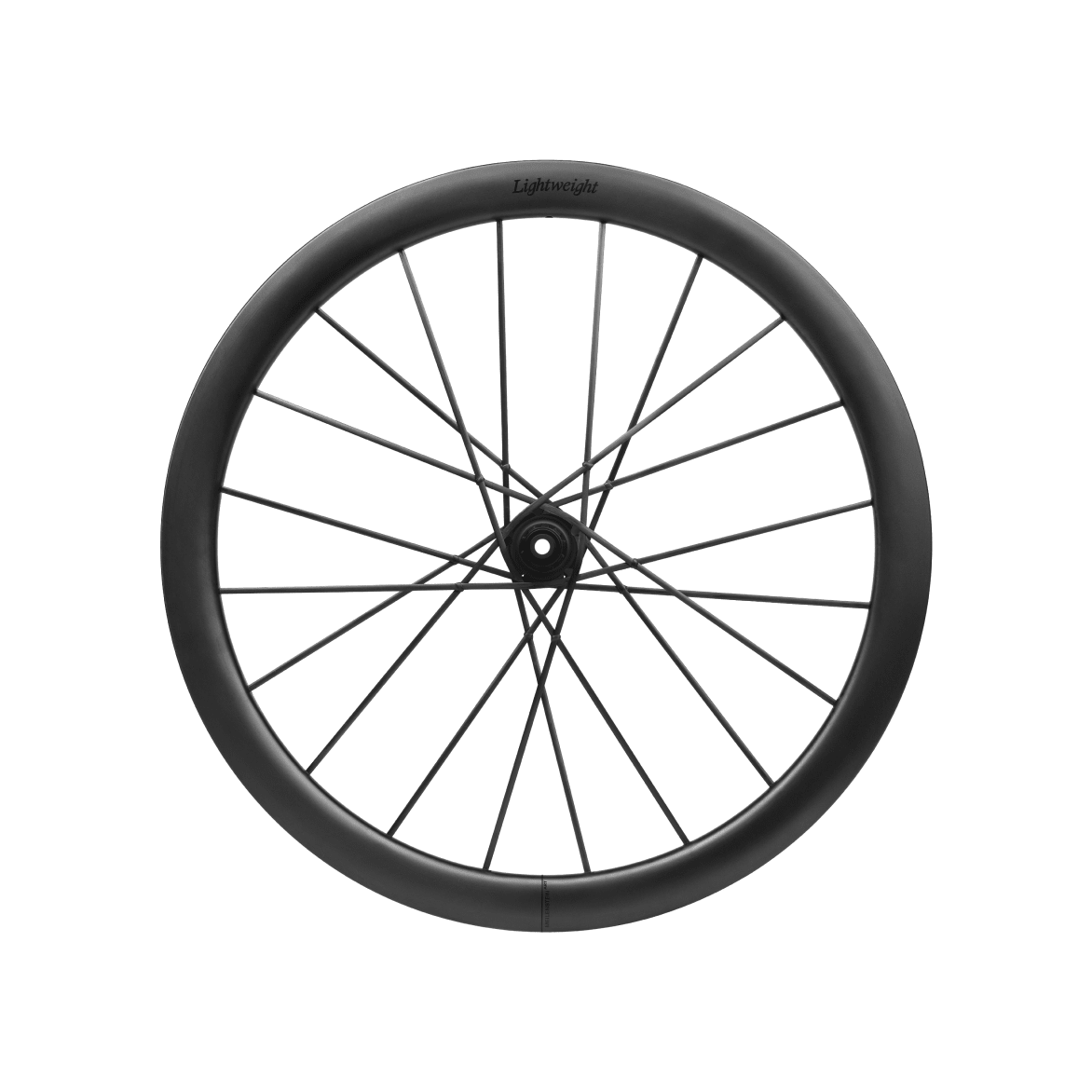

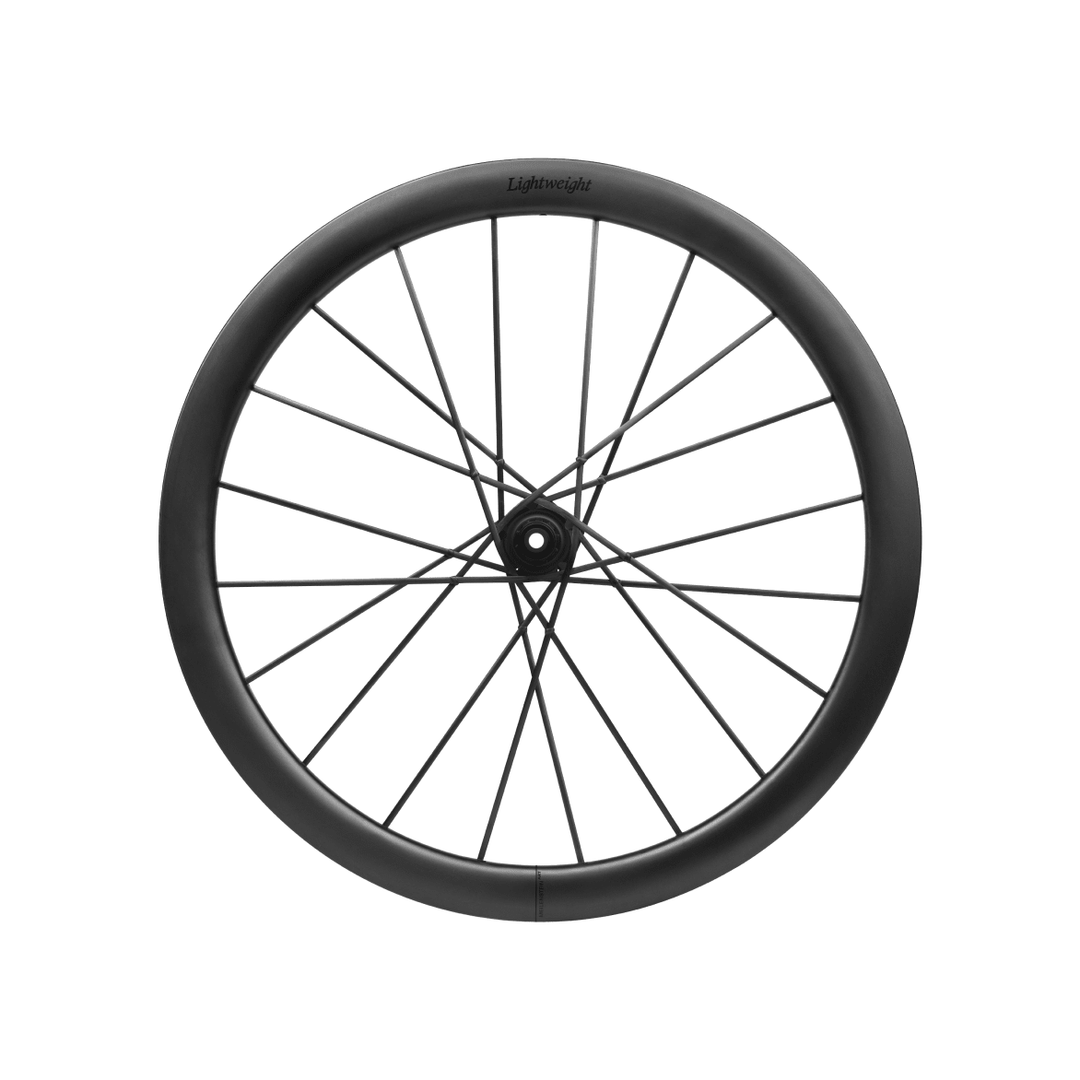

Choose the front wheel, the rear wheel with the matching freehub body, or the complete wheelset. This page is the Schwarz ED version with CeramicSpeed bearings; the other three decal designs are one click away.
Specifications
| Spec | Front | Rear |
|---|---|---|
| Rim depth | 45 mm | 45 mm |
| Rim width | 22.9 mm internal, 28.6 mm external | 22.9 mm internal, 28.6 mm external |
| Rim | 700c, hooked, closed rim bed, tubeless ready | 700c, hooked, closed rim bed, tubeless ready |
| Spoke count | 20 full-carbon, rim to rim | 20 full-carbon, rim to rim |
| Hub | Lightweight Penta-Fly, DT Swiss 180 EXP internals | Lightweight Penta-Fly, DT Swiss 180 EXP internals |
| Bearings | CeramicSpeed | CeramicSpeed |
| Axle | 12 x 100 mm thru-axle | 12 x 142 mm thru-axle |
| Brake | Centerlock disc, 160 mm rotor | Centerlock disc, 160 or 140 mm rotor |
| Freehub body | None | HG, XDR, Campagnolo or N3W |
| Wheel size | 700c | 700c |
| Wheel weight | 550 g | 640 g |
| Wheelset weight | 1,190 g (±3%) | |

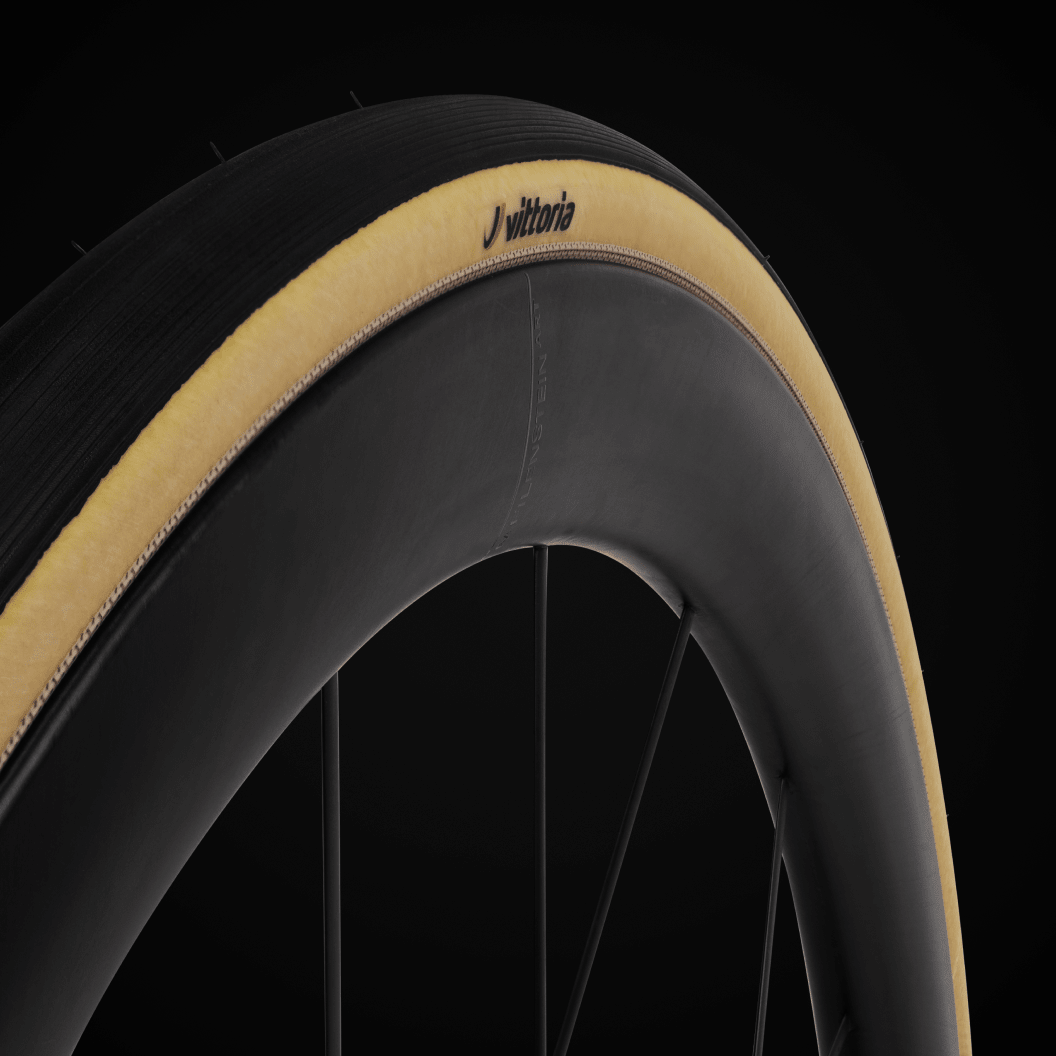

| Tires | Tubeless ready, optimized for 28 mm and wider, up to 40 mm | Tubeless ready, optimized for 28 mm and wider, up to 40 mm |
| Maximum pressure | 6 bar / 87 psi tubeless with 25-28 mm tires, 5.5 bar / 80 psi with 29-32 mm | 6 bar / 87 psi tubeless with 25-28 mm tires, 5.5 bar / 80 psi with 29-32 mm |
| Approved use | Road | Road |
| Maximum system weight | 120 kg / 265 lb (rider, bike and luggage) | |
| Warranty | 5 years from Lightweight | |
| Made in | Friedrichshafen, Germany | |
